Longi Solar LR5-72HGD-590M
Longi Solar Brand review

LR5-72HGD-590M

590 Wp N-type Bifacial 80%
ComparePV verdict

Strong in heat, no clear weak spot

Rank 3,801 of 14,005
Compare panels Datasheet PDF
Power (Wp)
590
Strong · top 15%
Efficiency (%)
22.80
Strong · top 20%
Density (Wp/m²)
228.4
Strong · top 17%
Temp (%/°C)
-0.280
Strong · top 9%
Weight (kg)
31.8
Typical · median 29.5 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Longi Solar Hi-MO 7 series is a technologically advanced solution based on innovative HPDC cell technology, which represents a milestone in the development of N-type bifacial modules. Thanks to precise optimization of the silicon structure, these panels offer significantly higher energy conversion efficiency and a more favorable temperature coefficient, which guarantees stable power production even during extreme heat. These modules effectively solve the problem of long-term performance loss, providing exceptional resistance to PID and LID degradation, which translates into a longer lifespan for the entire installation. This series was designed primarily with photovoltaic farms and large-scale commercial projects in mind, where the priority is minimizing the LCOE cost. What distinguishes Hi-MO 7 from competing products is, above all, its excellent bifacial efficiency, enabling intensive energy harvesting from reflected light even with less favorable ground parameters. The robust construction using double glass ensures maximum mechanical durability and full operational safety in demanding weather conditions. By choosing this series, investors gain the certainty of the highest yields from every square meter of surface area, making it one of the most cost-effective choices in today's modern photovoltaics market.

Ranking

259 panels in the segment N-type 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.80% 22.45% Strong · top 20% 2,714
Power density 228.4 224.5 Strong · top 17% 2,598
Temperature coefficient -0.280 -0.290 Strong · top 9% 1,309
Weight per kWp 53.9 52.3 Typical 8,021
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

8 positive · 2 caution
Best for

Utility-scale, commercial and hot-climate.

Strengths
-0.280 %/°C temperature coefficient

Top 9% of the N-type 550-600 W segment, against a median of -0.290. Ranked 1,309th in the whole database.

228.4 watts per square metre

Top 17% of the N-type 550-600 W segment, against a median of 224.5.

22.80% module efficiency

Top 20% of the N-type 550-600 W segment, against a median of 22.45%.

What owners get
N-type HPDC cells with low temp. coefficient

HPDC (Hybrid Passivated Dual-junction Cell) technology delivers module efficiency up to 22.8% and a power temperature coefficient of -0.28%/°C, resulting in higher energy yield in hot climates compared to older PERC-based cells.

High bifaciality up to 80±5%

The glass-glass bifacial construction with bifaciality up to 80±5% enables an additional energy gain of approximately 3% versus typical bifacial modules on the market, which is significant for installations over reflective ground surfaces.

30-year linear power warranty

The manufacturer backs the series with a 30-year linear power degradation warranty and a 12-year product warranty, which combined with strong PID and LID resistance provides a predictable, long-term energy production profile for utility-scale investors.

Tier-1 bankability manufacturer

Longi Solar has operated since 2000 and is classified as Tier-1 bankable, easing project financing through banks and investment funds and reducing supplier-selection risk for large PV projects.

Optimized for LCOE on utility-scale projects

The series is designed for solar farms and commercial-scale projects — high unit power (up to 590 Wp) and a robust dual-glass build reduce installation cost per Wp, supporting LCOE minimization.

Trade-offs
Efficiency slightly below peer comparables

Maximum efficiency of 22.8% is marginally lower than direct competitors in the same segment: AE Solar HORIZON CMD-144BDS (22.86%), SunEvo SE5-72H (22.83%), and Luxen LUXNERI N5 (22.83%) at the same 590 Wp max power. The gap is small but places Hi-MO 7 below the segment leaders on this specific metric.

12-year product warranty trails market leaders

While the 30-year power warranty is competitive, the standard 12-year product warranty lags behind some Tier-1 rivals, e.g. Trina Solar (15 years) or JA Solar's DeepBlue line (25 years), which may matter to investors weighing long-term service risk.

Notes from the database
  • At 22.8% efficiency, this panel is on par with typical N-type 550-600W modules
  • Power density of 228.4 W/m² packs 3.9 W/m² more into the same footprint vs N-type 550-600W median (224.5 W/m²)
  • At -0.28%/°C, hot weather performance is typical for N-type 550-600W panels
  • At 31.8 kg (2.3 kg above N-type 550-600W median of 29.5 kg), requires checking roof load capacity
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces

Specifications

Open datasheet PDF
Nominal power (Pmax) 590 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.80 % Strong Segment median 22.45%
Vmpp · Impp 43.44 V · 13.59 A Operating point at max power
Voc · Isc 51.63 V · 14.38 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2278×1134×30 mm · 2.58 m² of roof
Weight 31.8 kg Typical Typical · median 29.5 kg
Cells 144 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.280 %/°C Strong top 9% of its segment
Coefficient Voc · Isc -0.230 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 516 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Longi Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 590 Wp appear here. The rest cover the whole series.

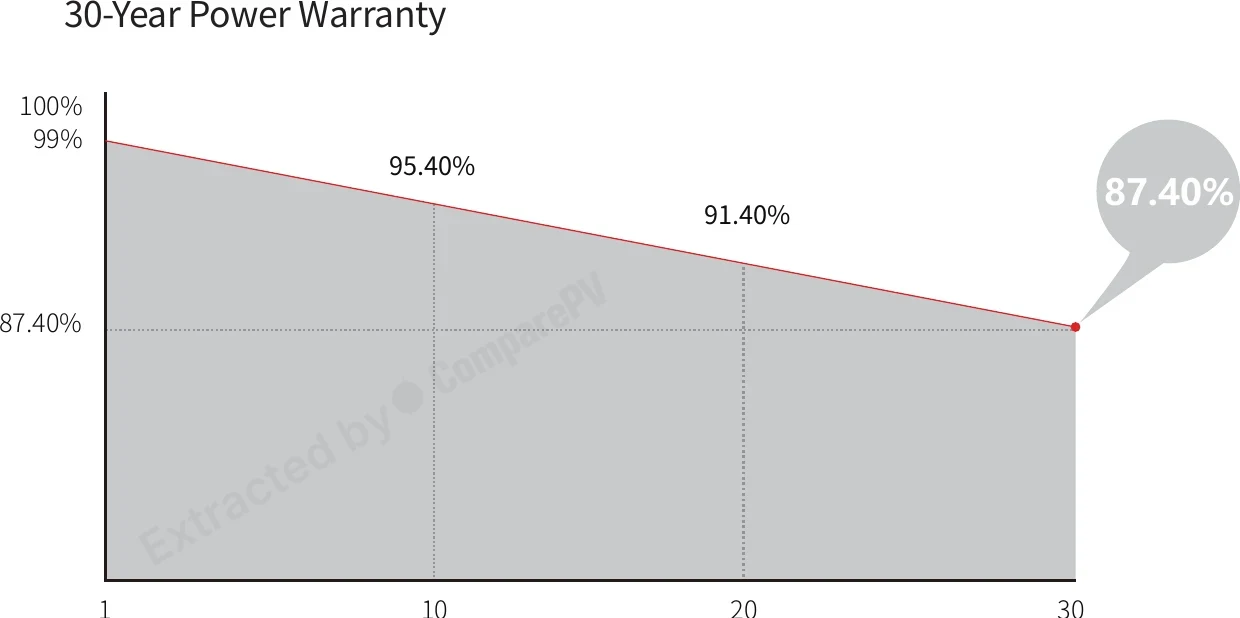

30-Year Power Warranty 30-Year Power Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.280 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Longi Solar LR5-72HGD-590M 590 W 22.80% -0.280 31.8 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg -30 W, lighter, +2.0 pp
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +50 W, lighter, +2.0 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg -35 W, lighter, +1.8 pp
AIKO-A635-MAE72Mw 635 W 24.60% -0.260 27.0 kg +45 W, lighter, +1.8 pp
AIKO-A630-MAH72Dw 630 W 24.40% -0.260 32.5 kg +40 W, cooler, +1.6 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg -40 W, 16 kg lighter, +1.6 pp
RL530HM 530 W 20.70% -0.470 27.0 kg -60 W, hotter, -2.1 pp
RL535HM 535 W 20.90% -0.470 27.0 kg -55 W, hotter, -1.9 pp
LR5-72HBD-540M 540 W 20.90% -0.340 31.8 kg -50 W, hotter, -1.9 pp
RL540HM 540 W 21.10% -0.470 27.0 kg -50 W, hotter, -1.7 pp
LR5-72HPH-545M 545 W 21.10% -0.340 27.5 kg Hotter, -1.7 pp, -5 yr warranty
RL545HM 545 W 21.30% -0.470 27.0 kg Hotter, -1.5 pp, -5 yr warranty
LR5-72HBD-550M 550 W 21.30% -0.340 31.8 kg -40 W, hotter, -1.5 pp
RL550HM 550 W 21.50% -0.470 27.0 kg Hotter, -1.3 pp, -5 yr warranty
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +60 W, lighter, +2.4 pp
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +55 W, lighter, +2.2 pp

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2547 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is HPDC technology in the LONGi Solar Hi-MO 7 panels and how does it differ from standard N-type cells?
HPDC (Hybrid Passivation Dual-junction Cell) technology combines two different passivation techniques on the front and rear cell surfaces to reduce carrier recombination. The result is a module efficiency of 22.8% and an excellent Pmax temperature coefficient of -0.28%/°C. In practice, this delivers better energy yield than conventional N-type TOPCon cells and lower power losses under high operating temperatures.
What warranty comes with the LONGi Solar Hi-MO 7 solar panels?
LONGi provides a 12-year product warranty covering materials and workmanship, plus a 30-year linear power output warranty. The power warranty guarantees that after 30 years of operation the panel retains at least 87.4% of its rated output. This is one of the longest power warranties currently available on the market, making it especially relevant for utility-scale and large commercial PV projects.
Do the Hi-MO 7 590W panels perform well in hot weather?
Yes. The Pmax temperature coefficient of -0.28%/°C is among the best figures for bifacial modules in this power class. For every degree Celsius the cell temperature rises above 25°C, the panel loses only 0.28% of its power — significantly less than P-type PERC technology, where losses typically reach 0.35–0.40%/°C. The Hi-MO 7 series therefore maintains stable energy production even in extreme heat conditions.
Is the LONGi Hi-MO 7 series suitable for a residential rooftop installation?
The Hi-MO 7 590W panel measures 2278×1134 mm and weighs 31.8 kg, making it primarily intended for utility-scale solar farms and large commercial installations. For a typical residential rooftop, smaller, lighter modules are generally a better fit. An installer should assess the roof's load-bearing capacity and available mounting area before specifying these modules.
What does the bifacial design mean for the Hi-MO 7, and on what surface type does it deliver the most value?
Hi-MO 7 bifacial modules achieve a bifaciality ratio of approximately 80%, meaning the rear side can generate up to 80% of the front-side power from reflected irradiance. The greatest gain comes from ground-mounted installations over high-albedo surfaces such as sand, gravel, concrete, or snow. LONGi estimates an additional 5–30% energy yield compared to monofacial modules, depending on the ground albedo of the site.
How well does the LONGi Hi-MO 7 resist PID and LID degradation over time?
The N-type HPDC cells used in the Hi-MO 7 series are structurally resistant to both Potential Induced Degradation (PID) and Light Induced Degradation (LID). N-type cell architecture eliminates the primary degradation mechanisms associated with P-type PERC cells, resulting in more stable energy production throughout the 30-year power warranty period and reduced long-term yield loss risk in utility-scale installations.
