LG LG440N2W-E6
LG Brand review

LG440N2W-E6

440 Wp N-type
ComparePV verdict

Middle of its segment, needs the roof space

Rank 10,202 of 14,005
Compare panels Datasheet PDF
Power (Wp)
440
Strong · top 23%
Efficiency (%)
20.00
Weak · bottom 3%
Density (Wp/m²)
200.1
Weak · bottom 3%
Temp (%/°C)
-0.330
Weak · bottom 9%
Weight (kg)
22.0
Typical · median 22.0 kg
Warranty (yrs)
25
Weak · bottom 11%

LG NeON® H photovoltaic panels are based on innovative N-type cell technology, which, combined with the Half-Cut structure, significantly minimizes energy losses resulting from shading or high temperatures. This solution is a response to the needs of users seeking maximum efficiency from limited roof space, offering one of the highest energy conversion rates on the market. The unique design using multi-busbar m6 cells ensures better current flow and exceptional resistance to micro-cracks, which directly translates into the longevity of the installation. This series stands out from the competition with an exceptionally low degradation rate, guaranteeing stable power production for decades, which is key to a fast return on investment. It is a premium class product dedicated to demanding individual investors and enterprises for whom reliability and energy security are a priority. Thanks to the use of a reinforced frame and high-quality materials, these modules handle difficult weather conditions perfectly, maintaining an aesthetic appearance throughout their entire service life. Choosing the NeON H series is an investment in advanced engineering that redefines durability standards in modern photovoltaics.

Ranking

321 panels in the segment N-type 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 20.00% 21.91% Weak · bottom 3% 12,214
Power density 200.1 218.3 Weak · bottom 3% 12,206
Temperature coefficient -0.330 -0.290 Weak · bottom 9% 8,545
Weight per kWp 50.0 51.2 Typical 3,317
Performance warranty 25 yrs 30 yrs Weak · bottom 11% 9,798
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

4 positive · 5 caution
Best for

Residential, commercial and shaded-installations.

Not ideal for

Roofs where every square metre has to count, tight roof space and hot climates.

Watch-outs
200.1 watts per square metre

Bottom 3% of the N-type 400-450 W segment, against a median of 218.3. Ranked 12,206th in the whole database.

20.00% module efficiency

Bottom 3% of the N-type 400-450 W segment, against a median of 21.91%. Ranked 12,214th in the whole database.

-0.330 %/°C temperature coefficient

Bottom 9% of the N-type 400-450 W segment, against a median of -0.290. Ranked 8,545th in the whole database.

What owners get
Up to 20.7% efficiency with N-type cells

N-type cells with M6 multi-busbar technology deliver 20–20.7% efficiency and lower LID/LeTID degradation susceptibility compared to conventional P-type PERC cells, translating into more stable energy yield in the early years of operation.

25-year product and power warranty

LG offers a full 25-year warranty on both the product and power output (guaranteeing approx. 89.6–90.6% of initial power after 25 years), which was among the longest warranty periods in the premium segment at the series' 2021 launch.

Reinforced build, microcrack resistance

The Half-Cut structure combined with M6 multi-busbar cells improves current flow and reduces the risk of microcracks and power loss under partial shading, which matters in atypical installation conditions such as partial shading from chimneys or antennas.

Tier-1 manufacturer reputation, 60+ years of history

LG Electronics has operated since 1958 and was historically regarded as a Tier-1 manufacturer with strict quality control, which translated into strong bankability for NeON H modules in project financing.

Trade-offs
Discontinued, limited service availability

LG officially ended solar panel production in June 2022 (decision announced February 2022), and the NeON H series is no longer sold. Availability of spare parts, warranty support, and future claims handling may be limited over time, despite LG's stated commitment to continued warranty support for existing installations.

Efficiency below current segment leaders

At 20–20.7%, efficiency is now clearly lower than newer comparable models (Sunlike Solar SKT420~455M10-108D6: 22.8%, LEDVANCE M435~455N54LB-SF-F7: 22.77%, Solitek SOLRIF D Black: 22.56%), meaning a larger installation area is required for the same 440–455 Wp power output.

Notes from the database
  • Module efficiency of 20.0% is 1.9pp below average for N-type 400-450W panels (median: 21.9%)
  • At 200.1 W/m², this panel generates 18.2 W/m² less per unit area than N-type 400-450W median (218.3 W/m²)
  • -0.33%/°C temperature coefficient - 0.04pp worse than N-type 400-450W median (-0.29%/°C), expect higher hot weather losses
  • In the top 87% for efficiency among all N-type panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 440 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 20.00 % Weak Segment median 21.91%
Vmpp · Impp 41.20 V · 10.70 A Operating point at max power
Voc · Isc 49.10 V · 11.20 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2110×1042×40 mm · 2.20 m² of roof
Weight 22.0 kg Typical Typical · median 22.0 kg
Cells 144 · N-type Monocrystalline
Coefficient Pmax -0.330 %/°C Weak bottom 9% of its segment
Coefficient Voc · Isc -0.260 · 0.040 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 25 years Weak bottom 11% · median 30 yrs
End-of-warranty output 90.6 % Equals 391 W guaranteed
Degradation 1.50 → 0.33 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by LG in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 440 Wp appear here. The rest cover the whole series.

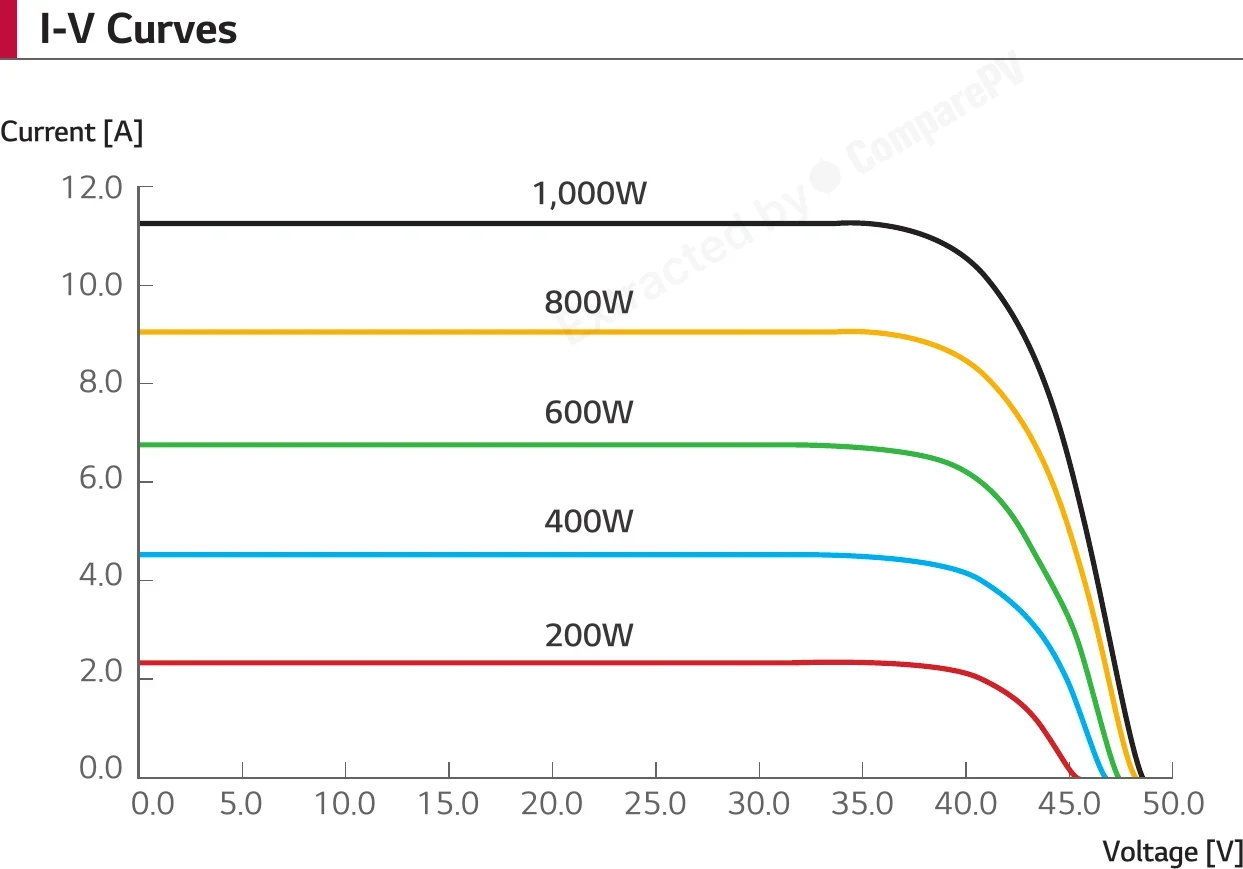

I-V Curves I-V Curves Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.330 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
LG LG440N2W-E6 440 W 20.00% -0.330 22.0 kg You are here
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +50 W, cooler, +4.5 pp
STP-NT11/48QGSF-490 490 W 24.50% -0.260 21.5 kg +50 W, cooler, +4.5 pp
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg Cooler, +4.3 pp, +5 yr warranty
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg Cooler, +4.3 pp, +5 yr warranty
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg Cooler, +4.3 pp, +5 yr warranty
GK-5-54HG-485M 485 W 24.30% -0.260 21.0 kg Cooler, +4.3 pp, +5 yr warranty
ZEUS 3.0+ 108 485WP 485 W 24.30% -0.260 24.2 kg Cooler, +4.3 pp, +5 yr warranty
LG445N2W-E6 445 W 20.20% -0.330 22.0 kg Very close match
LG450N2W-E6 450 W 20.50% -0.330 22.0 kg +10 W, +0.5 pp
LG455N2W-E6 455 W 20.70% -0.330 22.0 kg +15 W, +0.7 pp
GKA120N-PRO-590W 590 W 23.82% -0.300 26.7 kg +150 W, +3.8 pp, +5 yr warranty
GKA120N-PRO-585W 585 W 23.62% -0.300 26.7 kg +145 W, +3.6 pp, +5 yr warranty
BGO 580 580 W 23.50% -0.290 26.0 kg +140 W, +3.5 pp, +5 yr warranty
GKA120N-PRO-580W 580 W 23.42% -0.300 26.7 kg +140 W, +3.4 pp, +5 yr warranty

Found 115 panels of the same or similar size to this one, within ±10 mm. See them here Found 345 panels of the same or similar size to this one, within ±25 mm. See them here Found 350 panels of the same or similar size to this one, within ±50 mm. See them here Found 959 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Is the LG NeON H series still available for purchase?
No. LG exited the solar panel manufacturing business in June 2022, and the NeON H series has been discontinued. Some units may still be found in authorized distributor warehouses, but availability is very limited and prices tend to be higher than active market alternatives due to scarcity. LG continues to honor all issued warranties and maintains a replacement inventory for warranty service claims.
What warranty does LG offer on the NeON H series?
The LG NeON H carries a 25-year product warranty and a 25-year linear power warranty, guaranteeing at least 90.6% of initial rated output after 25 years of operation. Notably, the warranty also covers labor costs up to $450 per module for any required replacement, a benefit rarely offered in the industry that significantly reduces long-term financial risk for the system owner.
What is N-type cell technology in the LG NeON H, and why does it matter?
N-type cells in the NeON H series are phosphorus-doped rather than boron-doped, which eliminates Light Induced Degradation (LID). In practice, the panel does not lose output in the first weeks of operation, as commonly seen in P-type PERC modules. Combined with a 144 half-cut cell layout and LG's multi-busbar Cello Technology, shading losses are significantly reduced and the expected service life of the installation is extended.
How do LG NeON H 455W panels perform on hot summer days?
The NeON H series performs well at elevated temperatures thanks to a low temperature coefficient of power. This means the panel loses proportionally less output per degree Celsius of module temperature increase compared to typical P-type PERC cells. For rooftop installations where modules routinely reach over 60°C in summer, this translates into measurably higher annual energy yield compared to less efficient alternatives.
What is the rated power output and efficiency of the LG NeON H panel?
The top model in the series, LG455N2W-E6, delivers 455 Wp peak power at a module efficiency of 20.8%, among the highest ratings in the premium segment at the time of its release. The module consists of 144 half-cut cells in a 6x24 configuration and uses standard MC4 connectors, making it compatible with virtually all inverters and racking systems available on the market.
Are LG NeON H panels suitable for a pitched roof with partial shading from a chimney or dormer?
Yes. The half-cut cell design and multi-busbar m6 cells in the NeON H series handle partial shading better than conventional full-cell modules. When shade falls on only part of a panel, power loss is contained because each cell operates independently within two separate half-cell strings. For roofs with heavy or persistent shading, pairing the system with power optimizers or a string inverter featuring per-string MPPT is still recommended for best results.
