Kingdom KD-M440-108-N

440 Wp N-type
ComparePV verdict

Space saver, no clear weak spot

Rank 9,559 of 14,354
Compare panels Datasheet PDF
Power (Wp)
440
Strong · top 23%
Efficiency (%)
22.50
Strong · top 10%
Density (Wp/m²)
225.3
Strong · top 8%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
22.0
Typical · median 22.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

Ranking

348 panels in the segment N-type 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.50% 21.99% Strong · top 10% 4,394
Power density 225.3 218.8 Strong · top 8% 4,268
Temperature coefficient -0.290 -0.290 Typical 2,288
Weight per kWp 50.0 51.8 Typical 3,363
Performance warranty 30 yrs 30 yrs Typical 31
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

2 positive · 0 caution
Best for

Roofs where every square metre counts and small roofs that need every watt.

Strengths
225.3 watts per square metre

Top 8% of the N-type 400-450 W segment, against a median of 218.8. Ranked 4,268th in the whole database.

22.50% module efficiency

Top 10% of the N-type 400-450 W segment, against a median of 21.99%. Ranked 4,394th in the whole database.

Notes from the database
  • Efficiency of 22.5% matches the N-type 400-450W median
  • 225.3 W/m² power density - 6.5 W/m² more than N-type 400-450W median (218.8 W/m²), more power per roof area
  • Temperature coefficient of -0.29%/°C matches the N-type 400-450W median
  • In the top 31% for efficiency among all N-type panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 440 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.50 % Strong Segment median 21.99%
Vmpp · Impp 32.81 V · 13.41 A Operating point at max power
Voc · Isc 39.38 V · 13.86 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×30 mm · 1.95 m² of roof
Weight 22.0 kg Typical Typical · median 22.0 kg
Cells 108 · N-type Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs

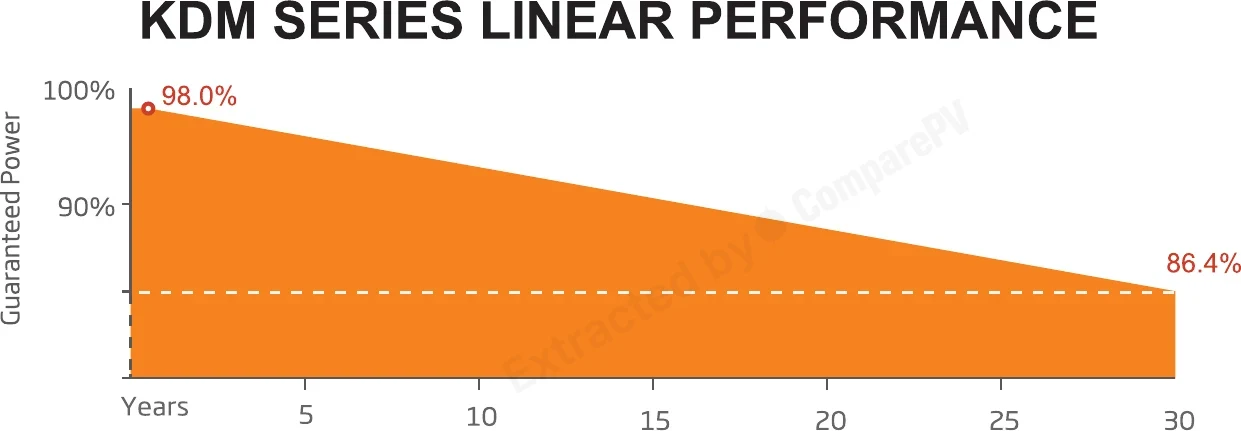

End-of-warranty output 86.4 % Equals 380 W guaranteed
Degradation 2.00 → 0.40 % First year, then annual

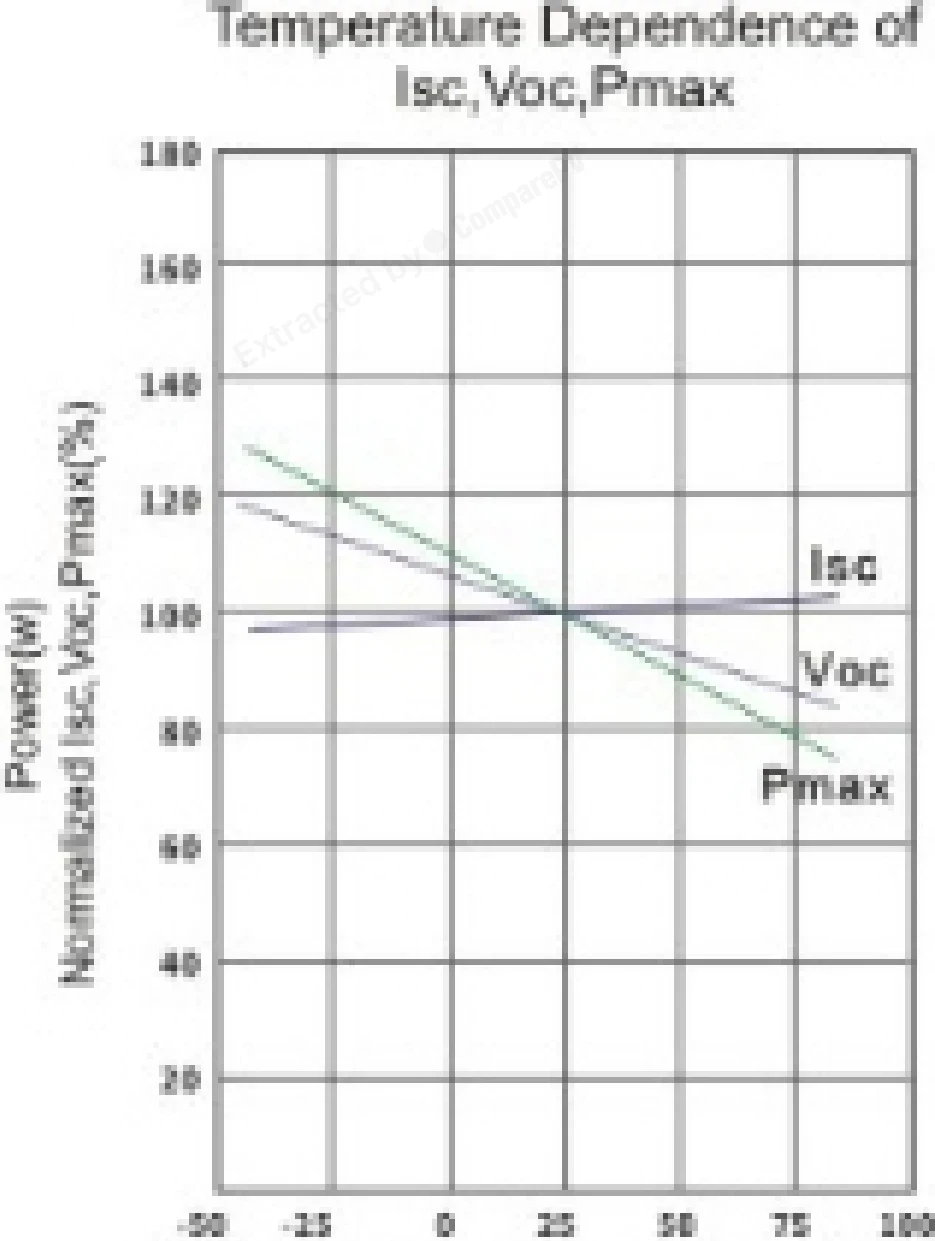

Datasheet charts

Open datasheet PDF

Measured curves published by Kingdom in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 440 Wp appear here. The rest cover the whole series.

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Kingdom KD-M440-108-N 440 W 22.50% -0.290 22.0 kg You are here
JKM490T-48HL6M-DB 490 W 24.52% -0.240 22.0 kg +50 W, cooler, +2.0 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +50 W, cooler, +2.0 pp
STP-NT11/48QGSF-490 490 W 24.50% -0.260 21.5 kg +50 W, cooler, +2.0 pp
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg +45 W, cooler, +1.8 pp
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg +45 W, cooler, +1.8 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg +45 W, cooler, +1.8 pp
GK-5-54HG-485M 485 W 24.30% -0.260 21.0 kg +45 W, cooler, +1.8 pp
JKM510T-48HL6M-DB 510 W 25.52% -0.240 22.0 kg +70 W, cooler, +3.0 pp
JKM505T-48HL6M-DB 505 W 25.27% -0.240 22.0 kg +65 W, cooler, +2.8 pp
JKM500T-48HL6M-DB 500 W 25.02% -0.240 22.0 kg +60 W, cooler, +2.5 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +70 W, cooler, +2.5 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +55 W, cooler, +2.3 pp
JKM495T-48HL6M-DB 495 W 24.77% -0.240 22.0 kg +55 W, cooler, +2.3 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +65 W, cooler, +2.2 pp
WST-505BKX54-A2 505 W 24.70% -0.260 25.0 kg +65 W, heavier, +2.2 pp
SPR-BE54-HD505 505 W 24.70% -0.260 26.0 kg +65 W, +2.2 pp, +10 yr warranty

Found 1839 panels of the same or similar size to this one, within ±10 mm. See them here Found 1970 panels of the same or similar size to this one, within ±25 mm. See them here Found 3497 panels of the same or similar size to this one, within ±50 mm. See them here Found 4125 panels of the same or similar size to this one, within ±100 mm. See them here
