Jinko Solar JKM455N-54HL4R-B-F8-EN
Jinko Solar Brand review

JKM455N-54HL4R-B-F8-EN

455 Wp TOPCon
ComparePV verdict

Light for its output, no clear weak spot

Rank 5,614 of 14,129
Compare panels Datasheet PDF
Power (Wp)
455
Typical for its class
Efficiency (%)
22.77
Typical · median 22.52%
Density (Wp/m²)
227.7
Typical · median 225.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
21.0
Strong · 3.0 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

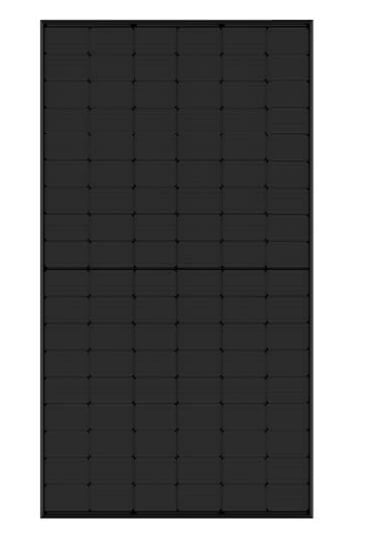

Jinko Solar Tiger Neo 54HL4R-B (All Black mono-facial) is designed for maximizing energy production from limited rooftop space without compromising on aesthetic appeal. The use of N-type TOPCon cells minimizes typical degradation-related losses over time and enhances performance in low-light conditions, translating to more stable operation in Poland's climate. In practice, you get a module that maintains its parameters more consistently season after season.

The HOT 2.0 technology and auxiliary solutions for collecting power from the cells (including the highly reliable connection design) also make the panel less sensitive to microcracks and uneven stress. Furthermore, Anti-PID resistance reduces the risk of performance drops under harsh operating conditions.

This is an excellent choice for single-family homes and premium projects where aesthetics matter - the full black (Full Black) design integrates better with modern roofing and facade materials.

Ranking

1,096 panels in the segment TOPCon 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.77% 22.52% Typical 3,129
Power density 227.7 225.2 Typical 2,943
Temperature coefficient -0.290 -0.290 Typical 2,220
Weight per kWp 46.2 52.2 Strong · top 15% 1,016
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

6 positive · 2 caution
Best for

Residential and commercial.

Strengths
46.2 kg per kWp

Top 15% of the TOPCon 450-500 W segment, against a median of 52.2.

What owners get
N-type TOPCon + HOT 2.0 technology

N-type cells degrade at ~0.4%/year vs. ~0.7% for PERC modules, while HOT 2.0 minimizes LID and LETID losses. Over a 30-year system life, this results in measurably higher cumulative energy yield compared to previous P-type generations.

30-year linear power warranty (≥87.4%)

JinkoSolar guarantees ≥87.4% of rated Pmax after 30 years at ≤0.4% annual degradation - compared to the Tier-1 PERC market standard of a 25-year warranty with ~84.8% retention (e.g., JA Solar, Trina). A meaningful advantage in LCOE calculations.

Temperature coefficient Pmax: -0.29%/°C

At -0.29%/°C (Pmax), this module outperforms typical PERC panels (-0.35 to -0.40%/°C), delivering higher real-world output on hot days when module temperatures routinely exceed 60°C - a condition relevant even in Central European climates during summer.

Top BNEF bankability - #1 globally (2024)

JinkoSolar ranks #1 in the BloombergNEF 2024 PV Module Bankability Survey as the only manufacturer with 100% bankable status, for the 10th consecutive year. This is a critical factor for project financing and warranty claim reliability over the full 30-year panel lifetime.

Full Black aesthetics - premium residential segment

The 54HL4R-B features all-black frame, backsheet, and cells, eliminating visual contrast with dark roofing materials. It is the preferred choice for premium residential projects and visible roof sections where aesthetic integration is a client requirement.

Trade-offs
Series discontinued (2024)

The Tiger Neo 54HL4R-B was discontinued in 2024. Availability is limited to distributor stock with no option to reorder matching batches. Over a multi-decade operational lifetime, access to replacement components and dedicated OEM service support may become constrained.

Mono-facial only - no bifacial yield gain

The module does not harvest reflected irradiance from the ground. Bifacial alternatives in the same power class - e.g., IBC Solar LS-TA2 455W (22.8% efficiency) - typically deliver 5-15% additional annual yield at ground albedo >0.3. On light-colored surfaces (gravel, snow, white TPO membrane), this represents a real production loss.

Notes from the database
  • At 22.8% efficiency, this panel is on par with typical TOPCon 450-500W modules
  • Power density of 227.7 W/m² matches the TOPCon 450-500W median
  • At -0.29%/°C, hot weather performance is typical for TOPCon 450-500W panels
  • Weight of 21.0 kg (3.0 kg below TOPCon 450-500W median of 24.0 kg) allows easier transport and roof mounting
  • In the top 22% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 455 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.77 % Typical Segment median 22.52%
Vmpp · Impp 33.58 V · 13.55 A Operating point at max power
Voc · Isc 40.17 V · 14.01 A Sizes the string length
Max system voltage 1000 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 21.0 kg Strong Strong · 3.0 kg below median
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 398 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Jinko Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 455 Wp appear here. The rest cover the whole series.

30-year Linear Performance Warranty 30-year Linear Performance Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Jinko Solar JKM455N-54HL4R-B-F8-EN 455 W 22.77% -0.290 21.0 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +40 W, cooler, +2.0 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +50 W, cooler, +1.9 pp
WST-505BKX54-A2 505 W 24.70% -0.260 25.0 kg +50 W, heavier, +1.9 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +35 W, cooler, +1.7 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +45 W, cooler, +1.7 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +45 W, cooler, +1.7 pp
JKM420N-54HL4R-BDV 420 W 21.02% -0.290 22.0 kg -35 W, heavier, -1.8 pp
EU-JKM425-450N-54HL4R-BDB-G4 (425W class) 425 W 21.27% -0.290 24.5 kg -30 W, heavier, -1.5 pp
JKM430-455N-54HL4R-B-F8-EN (430W) 430 W 21.52% -0.290 21.0 kg -25 W, -1.2 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +55 W, cooler, +2.2 pp

Found 1402 panels of the same or similar size to this one, within ±10 mm. See them here Found 1432 panels of the same or similar size to this one, within ±25 mm. See them here Found 3651 panels of the same or similar size to this one, within ±50 mm. See them here Found 3999 panels of the same or similar size to this one, within ±100 mm. See them here

About the Tiger Neo 54HL4R-B (All Black mono-facial module) series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

Is the Jinko Solar Tiger Neo 54HL4R-B All Black series still available for purchase?
The Tiger Neo 54HL4R-B All Black series has been discontinued. New shipments directly from the manufacturer are no longer available, and supply is limited to existing distributor inventory. If you specifically need this series, check current stock levels with local importers or consider a newer equivalent from the Tiger Neo lineup.
What warranty does the Jinko Solar Tiger Neo 54HL4R-B come with?
Jinko Solar provides a 25-year product warranty covering material defects and workmanship, plus a 30-year linear power output warranty guaranteeing at least 87.4% of rated power at the end of the warranty period. These terms are among the most competitive in the industry and reflect the inherently lower annual degradation of N-type TOPCon cells compared to PERC technology.
What advantage does N-type TOPCon technology offer in the Tiger Neo 54HL4R-B over standard PERC panels?
TOPCon cells deliver higher module efficiencies (above 21%) and lower annual power degradation than PERC. In practical terms, the Tiger Neo 54HL4R-B retains more of its rated output over 30 years and performs better under diffuse irradiance conditions. The temperature coefficient of Pmax is only -0.29%/°C, meaning less power loss on hot summer days compared to most PERC modules.
Do the Tiger Neo 54HL4R-B All Black panels perform well in winter and overcast conditions?
Yes. N-type TOPCon cells show superior low-light and diffuse irradiance performance compared to standard PERC modules. The low Pmax temperature coefficient (-0.29%/°C) also means the panel retains near-nominal output in cold weather. This is particularly relevant in climates with high cloud cover, where low-irradiance harvesting directly impacts annual energy yield.
What are the dimensions and weight of the Jinko Tiger Neo 54HL4R-B, and will it fit on a standard pitched roof?
The module measures 1762 x 1134 x 30 mm and weighs approximately 21 kg. These are standard dimensions for 54-cell format modules and are fully compatible with conventional pitched-roof mounting systems using aluminum rails and roof hooks. A 10-module, ~4.5 kWp system requires roughly 20 m² of roof area, which fits comfortably on a typical single-family home.
Why choose the All Black version over standard white-backsheet Jinko Tiger Neo panels?
The All Black version features a black frame, black backsheet, and black cell interconnects, making it visually cohesive with dark roofing materials such as anthracite metal sheets or bituminous shingles. It is the preferred choice for premium residential projects and architecturally regulated buildings. Electrical ratings are identical up to 455 Wp, though the dark backsheet can result in slightly higher operating cell temperatures, which should be factored into system design.
