440Wp

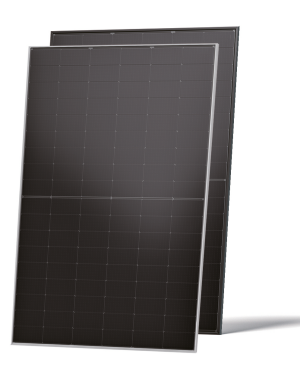

Jinko Solar JKM435-460N-54HL4R-(V) (440W)
Jinko Solar Review

JKM435-460N-54HL4R-(V) (440W)

Monocrystalline
Datasheet
22.02%
Efficiency
220.2 Wp/m²
Power Density
-0.290%/°C
Temp. Coeff. Pmax chart
385W from 440W
Power after 30 years
Smart Insights (data-driven)
  • At 22.0% efficiency, this panel is on par with typical N-type 400-450W modules
  • At 220.2 W/m² power density, roof space requirements are typical for N-type 400-450W panels
  • At -0.29%/°C, hot weather performance is typical for N-type 400-450W panels
  • Weight of 21.0 kg is typical for N-type 400-450W panels
  • Ranked #5110 out of 11672 panels for efficiency in the database
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series Tiger Neo 54HL4R-(V) 19 variants
Efficiency Range 21.8% - 23.0%
Avg. Efficiency 22.43%
Technology N-type
Dimensions 1762 × 1134 mm
Show series description

The Jinko Solar Tiger Neo 54HL4R-(V) series are modules based on N-type TOPCon cells, designed for high energy yield in real-world operating conditions, not just in the lab. The application of half-cut architecture and modern wiring layout helps minimize internal losses and better handle partial shading – a common issue on rooftops near chimneys, skylights, or tree installations.

In practice, this series stands out with more stable performance over time – N-type technology reduces the risk of power drops associated with typical degradation mechanisms, translating to more predictable yields year after year. An additional advantage is high mechanical strength, which is crucial for installation on snowy and windy rooftops.

The Tiger Neo 54HL4R-(V) is suitable for both residential and commercial installations, where efficiency on limited space and long-term reliability matter more than the initial purchase price alone.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)440 Wp
Module Efficiency22.02%
Voltage at Max Power (Vmpp)32.81 V
Current at Max Power (Impp)13.41 A
Open Circuit Voltage (Voc)39.38 V
Short Circuit Current (Isc)13.86 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.290%/°C
Temp. Coeff. Voc-0.250%/°C
Temp. Coeff. Isc0.045%/°C
NOCT-
Cell Technology
Cell TypeMonocrystalline
Cell Count108
BifacialNo
Bifaciality Factor-
Dimensions & Weight
Length1762 mm
Width1134 mm
Height30 mm
Weight21.0 kg
Area2.00 m²
Power Density220.2 Wp/m²
Warranty
Product Warranty15 years
Performance Warranty30 years
End-of-Warranty Output87.4%
First Year Degradation1.00%
Annual Degradation0.40%/year
Key Specifications
22.02%
Efficiency
440 Wp
Power
-0.29%/°C
Temp Coeff
30 yrs
Warranty
