Middle of its segment, short guarantee

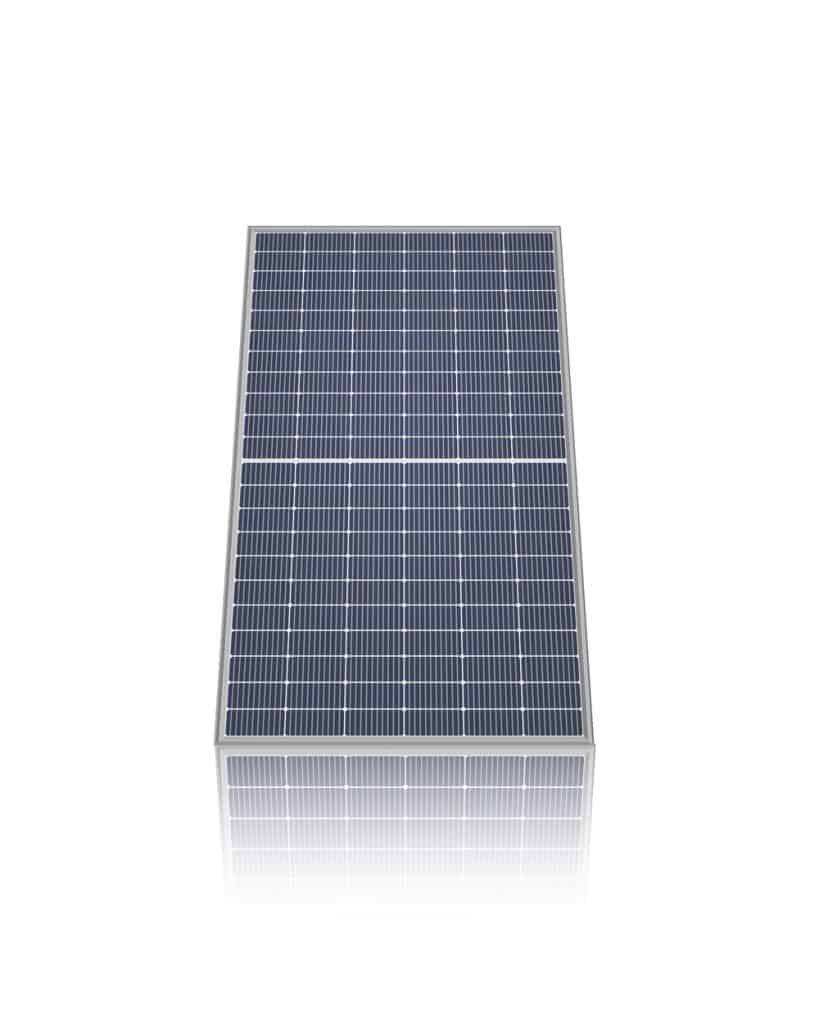

The Heliene 132HC M10 NTYP SL monofacial series are modules designed for high energy production in practical operating conditions - not just in a laboratory setting. They utilize N-type cells, which naturally limit LID (light-induced degradation), resulting in panels that maintain their efficiency over time and operate more stably for years. The half-cut design reduces internal losses and improves performance under partial shading, which is particularly important on roofs with chimneys, skylights, or antennas. The split junction box is also noteworthy, providing a solution that supports operation under uneven solar irradiance and helps to minimize power drops in demanding systems.
The module is monofacial, making it well-suited for applications where predictability and easy installation are key - such as on residential and commercial roofs, as well as in industrial installations. It stands out due to its reinforced frame and tempered glass with an anti-reflective coating, which improves durability and daily performance, while also simplifying the design of low-cost BOS (Building-Integrated Solar) systems.
Ranking
Signals from the data
Residential, commercial and shaded-installations.
Owners who want a long output guarantee, roofs where every square metre has to count and tight roof space.
Bottom 8% of the N-type 500-550 W segment, against a median of 30 yrs. Ranked 10,073rd in the whole database.
Bottom 9% of the N-type 500-550 W segment, against a median of 225.5. Ranked 8,344th in the whole database.
Bottom 10% of the N-type 500-550 W segment, against a median of 22.60%. Ranked 8,367th in the whole database.
Efficiency up to 22.53% matches the top peer comparable (Renesola RS5-535NBG-E2, 22.53%) and clearly outperforms Hanersun Hitouch 5 (20.71%) and Daxieworld ETFE (20.10%) at the same 535 Wp maximum power.
N-type cells reduce LID effects and improve the temperature coefficient compared to older PERC technology, translating into more stable annual yield, especially in hot climates.
The half-cut design reduces CTM losses, and the split junction box improves performance under partial shading - a real benefit on roofs with chimneys, dormers, or antennas.
Heliene, founded in 2010, holds Tier-1 bankable status, easing project financing, and North American manufacturing matters for support programs with domestic content requirements (e.g., US IRA).
3.2mm tempered glass with an anti-reflective coating plus a reinforced frame increase resistance to hail, wind, and snow load, contributing to lower BoS costs in system design.
The 15-year product and 25-year power warranty is standard, but newer N-type modules on the market (e.g., Tiger Neo series, JA Solar DeepBlue 4.0) already offer 25/30 years, making Heliene's warranty less competitive on this parameter.
The module is monofacial, so it forgoes the potential 5-15% additional rear-side yield available in bifacial N-type designs from some comparable manufacturers, limiting appeal for ground-mount or elevated installations.
- At 21.5% efficiency, this panel is 1.1pp below the N-type 500-550W median of 22.6%
- 214.8 W/m² power density is 10.7 W/m² below N-type 500-550W median (225.5 W/m²) - requires larger installation area
- Temperature coefficient of -0.30%/°C matches the N-type 500-550W median
- #8367 for efficiency, #6298 for temperature performance out of 14354 panels
Specifications
Datasheet charts
Measured curves published by Heliene in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 510 Wp appear here. The rest cover the whole series.
Simulations

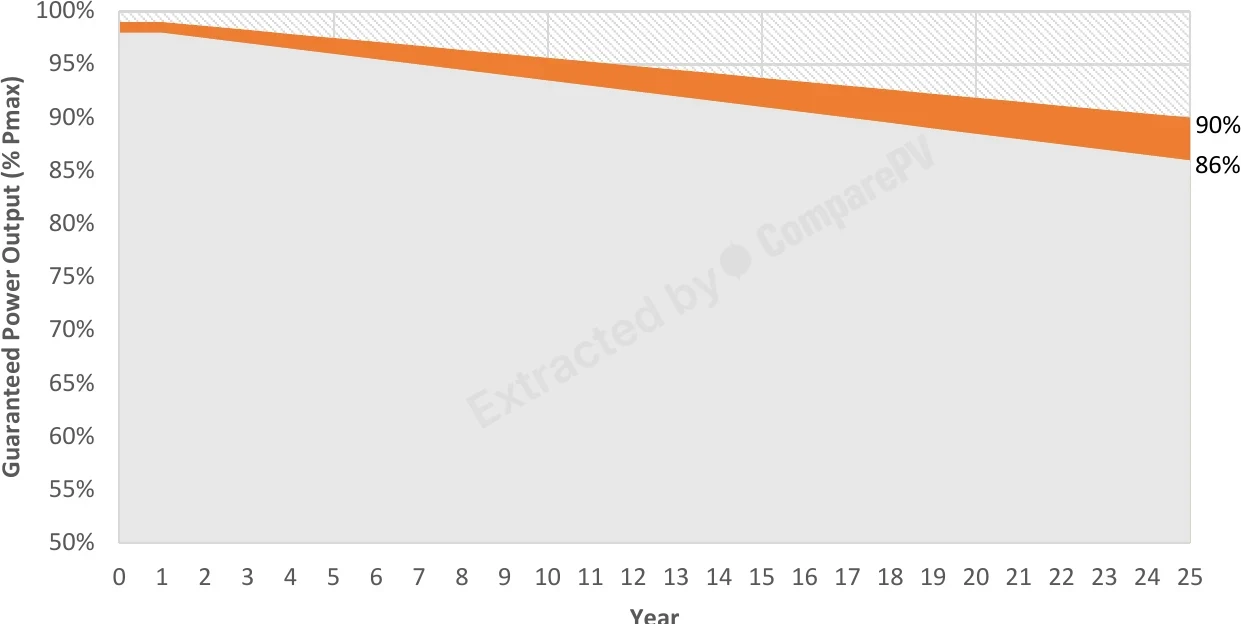

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Alternatives
Found 407 panels of the same or similar size to this one, within ±10 mm. See them here Found 418 panels of the same or similar size to this one, within ±25 mm. See them here Found 435 panels of the same or similar size to this one, within ±50 mm. See them here Found 969 panels of the same or similar size to this one, within ±100 mm. See them here
About the 132HC M10 NTYP SL Monofacial series
These answers cover the whole series. Where a figure differs, the specification above is this module's own.
