Heliene 108HC-440 M10X SL BIFACIAL
Heliene Brand review

108HC-440 M10X SL BIFACIAL

440 Wp N-type Bifacial 80%
ComparePV verdict

Efficiency leader, short guarantee

Rank 7,550 of 14,005
Compare panels Datasheet PDF
Power (Wp)
440
Strong · top 23%
Efficiency (%)
22.53
Strong · top 6%
Density (Wp/m²)
225.3
Strong · top 9%
Temp (%/°C)
-0.300
Weak · bottom 25%
Weight (kg)
21.5
Typical · median 22.0 kg
Warranty (yrs)
25
Weak · bottom 11%

The 108HC M10 NTYP SL Bifacial series is built around N-Type TOPCon cells, which offer lower degradation and better high-temperature performance, making them especially well suited for installations operated intensively over many years. The half-cut cell technology reduces power losses related to shading and internal resistance, resulting in more stable energy output under variable irradiance conditions. The dual-sided, glass-glass bifacial construction also captures light reflected from the ground surface, boosting total energy yield without increasing the installation footprint - a solution particularly attractive for mounting on light-colored roofs, facades, or ground-mount farms with elevated albedo. The reinforced frame and 3.2 mm tempered front glass provide high mechanical resistance to hail, wind, and snow loads, which matters in more demanding operating conditions. These panels are a solid choice for investors seeking a lower LCOE over the full lifecycle of an installation, suitable for both commercial projects and larger prosumer arrays where the ratio of energy yield to roof area and long-term product reliability are key considerations.

Ranking

321 panels in the segment N-type 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.53% 21.91% Strong · top 6% 3,982
Power density 225.3 218.3 Strong · top 9% 4,099
Temperature coefficient -0.300 -0.290 Weak · bottom 25% 6,093
Weight per kWp 48.9 51.2 Typical 2,535
Performance warranty 25 yrs 30 yrs Weak · bottom 11% 9,798
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

7 positive · 3 caution
Best for

Residential, commercial and shaded-installations.

Not ideal for

Owners who want a long output guarantee and hot climates.

Strengths
22.53% module efficiency

Top 6% of the N-type 400-450 W segment, against a median of 21.91%. Ranked 3,982nd in the whole database.

225.3 watts per square metre

Top 9% of the N-type 400-450 W segment, against a median of 218.3. Ranked 4,099th in the whole database.

Watch-outs
25 year performance warranty

Bottom 11% of the N-type 400-450 W segment, against a median of 30 yrs.

-0.300 %/°C temperature coefficient

Bottom 25% of the N-type 400-450 W segment, against a median of -0.290.

What owners get
N-type TOPCon cells with low degradation

The N-type TOPCon technology combined with half-cut cell design reduces LID/LeTID degradation and shading losses, resulting in higher and more stable energy yield over the module's lifetime compared to older PERC cells.

Bifacial glass-glass construction

The double-glass bifacial design (3.2 mm front glass) captures light reflected from the ground, increasing total energy yield without expanding the installation footprint - particularly beneficial on light-colored roofs or ground-mount farms with elevated albedo.

Efficiency up to 22.79% - above peer average

The series' top-end efficiency (22.79%) exceeds comparable tier-1 bifacial modules such as Jinko Tiger Neo 54HL4R-BDB (22.27%), Q.TRON BLACK (22.3%), and Astronergy ASTRO N7s (22.3%), at the same 445 Wp max power.

Low power temperature coefficient

A Pmax temperature coefficient of -0.30%/°C ensures better power retention in high temperatures than typical PERC modules (usually -0.35 to -0.40%/°C), which matters for installations in high-irradiance climates.

Bankable tier-1 manufacturer since 2010

Heliene has operated since 2010, holds tier-1 bankable status, and runs manufacturing facilities in North America (Canada/USA), easing project financing and eligibility for US domestic content programs.

Trade-offs
Price premium for North American manufacturing

Heliene modules manufactured in Canada/USA typically carry a higher unit price than comparable tier-1 Asian-made modules (Jinko, Astronergy), which may reduce cost competitiveness on projects that don't qualify for domestic content bonuses.

Notes from the database
  • Efficiency of 22.5% is 0.6pp above the N-type 400-450W median (21.9%)
  • 225.3 W/m² power density - 7.0 W/m² more than N-type 400-450W median (218.3 W/m²), more power per roof area
  • Temperature coefficient of -0.30%/°C matches the N-type 400-450W median
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface
  • In the top 28% for efficiency among all N-type panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 440 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.53 % Strong Segment median 21.91%
Vmpp · Impp 33.65 V · 13.09 A Operating point at max power
Voc · Isc 39.87 V · 13.79 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×35 mm · 1.95 m² of roof
Weight 21.5 kg Typical Typical · median 22.0 kg
Cells 108 · N-type Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Weak bottom 25% of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 25 years Weak bottom 11% · median 30 yrs
End-of-warranty output 90.0 % Equals 385 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Heliene in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 440 Wp appear here. The rest cover the whole series.

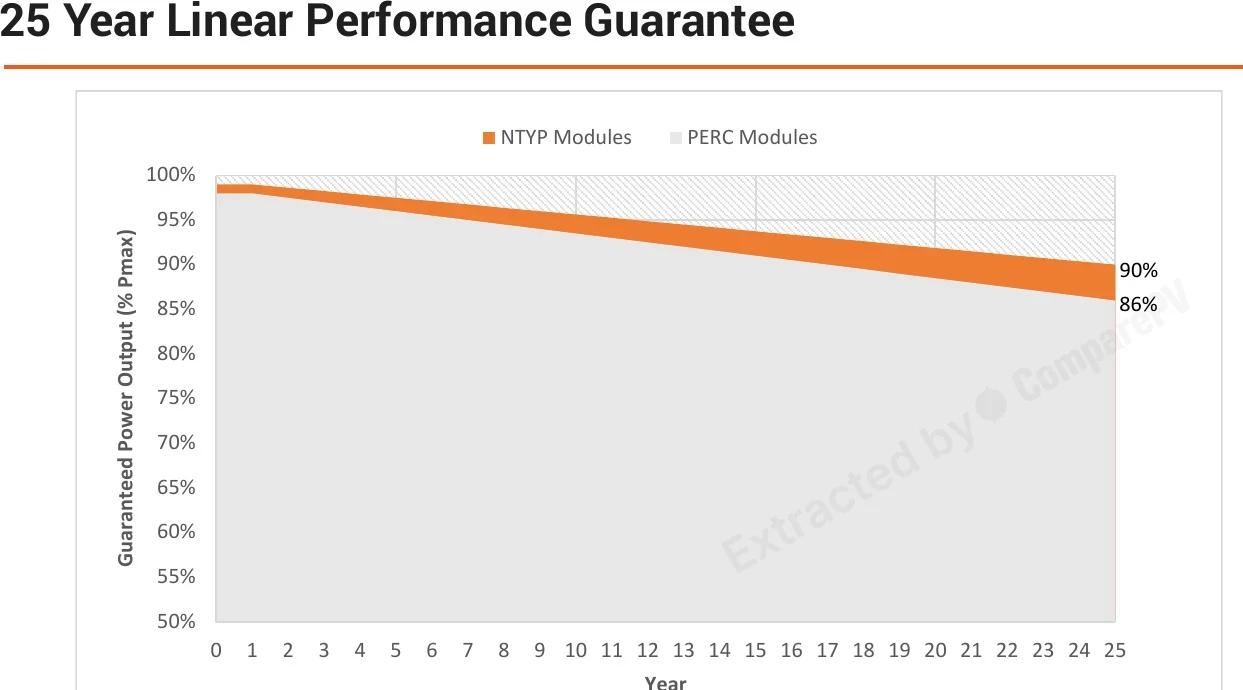

25 Year Linear Performance Guarantee 25 Year Linear Performance Guarantee Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Alternatives

All Heliene panels
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Heliene 108HC-440 M10X SL BIFACIAL 440 W 22.53% -0.300 21.5 kg You are here
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +50 W, +2.0 pp, +5 yr warranty
STP-NT11/48QGSF-490 490 W 24.50% -0.260 21.5 kg +50 W, +2.0 pp, +5 yr warranty
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg +45 W, +1.8 pp, +5 yr warranty
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg +45 W, +1.8 pp, +5 yr warranty
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg +45 W, +1.8 pp, +5 yr warranty
GK-5-54HG-485M 485 W 24.30% -0.260 21.0 kg +45 W, +1.8 pp, +5 yr warranty
ZEUS 3.0+ 108 485WP 485 W 24.30% -0.260 24.2 kg +45 W, +1.8 pp, +5 yr warranty
108HC-380 M10 SL All Black (Monofacial) 380 W 19.50% -0.340 21.5 kg -60 W, hotter, -3.0 pp
108HC-385 M10 SL All Black (Monofacial) 385 W 19.70% -0.340 21.5 kg -55 W, hotter, -2.8 pp
108HC-390 M10 SL S1 All Black 390 W 20.00% -0.350 21.5 kg -50 W, hotter, -2.5 pp
108HC-395 M10 SL All Black (Monofacial) 395 W 20.20% -0.340 21.5 kg -45 W, hotter, -2.3 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +70 W, cooler, +2.5 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +55 W, +2.3 pp, +5 yr warranty
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +65 W, cooler, +2.2 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +60 W, cooler, +2.0 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +60 W, +2.0 pp, +5 yr warranty

Found 1783 panels of the same or similar size to this one, within ±10 mm. See them here Found 1914 panels of the same or similar size to this one, within ±25 mm. See them here Found 3392 panels of the same or similar size to this one, within ±50 mm. See them here Found 3970 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is the difference between the Heliene 108HC M10 NTYP SL Bifacial series and standard monofacial panels?
The key difference is the glass-glass construction with dual-sided light capture, allowing the module to generate energy from reflected light off the ground as well. This typically results in an additional energy yield of a few to over ten percent without increasing the installation footprint, especially noticeable on light-colored roofs, facades, or ground-mount farms with high albedo.
What warranty comes with the Heliene 108HC M10 NTYP SL Bifacial panels?
The manufacturer provides a 25-year product warranty and a 25-year power performance warranty. This is one of the longer coverage periods available on the market, made possible by the N-type TOPCon cells, which show lower annual degradation compared to conventional P-type PERC cells.
How much power does the Heliene 108HC M10 NTYP SL Bifacial panel produce and what installations is it suited for?
The module reaches a maximum power output of 445 Wp. With its high unit power and bifacial technology, it works well for both commercial installations and larger prosumer systems where the ratio of energy yield to available roof or ground area matters most.
Does N-type TOPCon technology in Heliene panels make a real difference for a system owner?
Yes. N-type TOPCon cells degrade more slowly than traditional P-type cells and handle high operating temperatures better, resulting in more stable energy production during summer months. Over the long term, this means higher cumulative energy yield across a 25-30 year system lifespan, and therefore a lower LCOE.
Do Heliene 108HC M10 NTYP SL Bifacial panels require special mounting to take advantage of their bifacial design?
To effectively use the rear side of the module, panels should be mounted on structures that leave clearance underneath, such as elevated ground-mount racking or flat roofs with an appropriate tilt angle. Mounting directly flush on a sloped roof without clearance limits the bifacial gain, though the panel will still perform normally on its front side.
Can the tempered glass and reinforced frame of the Heliene 108HC M10 NTYP SL Bifacial withstand harsh weather conditions?
Yes, the module features 3.2 mm tempered front glass and a reinforced frame, providing strong mechanical resistance to hail, high winds, and snow load. This is a significant advantage for installations in regions with variable climate conditions, where glass breakage is often a common cause of warranty claims.
