Haitai Solar Brand review

CETC-450TR(GDF)/96

450 Wp TOPCon Bifacial
ComparePV verdict

Middle of its segment, weak in heat

Rank 9,054 of 14,005
Compare panels Datasheet PDF
Power (Wp)
450
Weak · bottom 9%
Efficiency (%)
22.52
Typical · median 22.52%
Density (Wp/m²)
225.2
Typical · median 225.2
Temp (%/°C)
-0.300
Weak · bottom 20%
Weight (kg)
23.9
Typical · median 24.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Haitai Solar N series G12R bifacial double-glass module utilizes n-type TOPCon technology in a G12R (rectangular cell) format, designed to genuinely increase energy yield without complicating the installation project. The bifacial design allows for the utilization of reflected light from the ground - this works particularly well on bright, flat roofs, ground-mounted structures, and PV farms with appropriate albedo.

The use of glass-glass improves moisture and micro-cracking resistance, leading to more stable performance over a longer period and better resistance to harsh environmental conditions. Thanks to n-type TOPCon cells, the modules are better equipped to handle high temperatures and offer lower degradation over time, reducing the risk of decreased production in subsequent years.

This is a sensible choice for investors who prioritize LCOE and want higher yields on the same area - from commercial and industrial installations to large ground-mounted power plants, including those with trackers.

Ranking

1,089 panels in the segment TOPCon 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.52% 22.52% Typical 4,108
Power density 225.2 225.2 Typical 4,225
Temperature coefficient -0.300 -0.290 Weak · bottom 20% 6,093
Weight per kWp 53.1 52.2 Typical 6,893
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 3 caution
Best for

Commercial.

Not ideal for

Hot climates.

Watch-outs
-0.300 %/°C temperature coefficient

Bottom 20% of the TOPCon 450-500 W segment, against a median of -0.290.

What owners get
Up to 22.77% Efficiency — Top of the Segment

The module's peak efficiency of 22.77% places the series just behind the leading direct peer comparables — Sunlike Solar (22.8%) and IBC Solar (22.8%) — while clearly outperforming the Waaree ARKA Series (20.93%). The gap relative to the top two is only 0.03 percentage points, which in practice translates to comparable energy yield per unit area.

N-type TOPCon — Lower Degradation and Better Performance in Heat

N-type TOPCon technology eliminates the LID (Light-Induced Degradation) effect characteristic of p-type PERC cells and exhibits a lower temperature coefficient (typically ~-0.30%/°C vs. ~-0.35%/°C for PERC), resulting in higher annual energy yield in hot climates and slower long-term degradation.

30-Year Linear Power Warranty

The series carries a 30-year linear power output warranty — a timeframe consistent with top-tier competitors in the bifacial TOPCon segment. This minimizes the risk of production losses in later years of operation and reduces LCOE for projects with extended financing periods.

Bifacial Double-Glass — Higher Yield and Durability

The glass-glass construction with bifacial irradiance capture enables additional energy gain from ground albedo (typically +5–15% for ground-mounted systems with suitable surface reflectivity). The glass-glass laminate also provides superior moisture barrier performance, greater resistance to microcracks, and longer-term electrical stability compared to standard backsheet modules.

BNEF Tier 1 — Bankable Status

Haitai Solar achieved BloombergNEF Tier 1 status in Q2 2025 under BNEF's tightened methodology, which requires a minimum 10 MW per project and six qualifying projects per quarter. Bankable status streamlines access to project financing and insurer acceptance in large-scale commercial and utility-scale installations.

Trade-offs
Product Warranty of Only 12 Years

At a 12-year product warranty, the series falls short of select premium competitors: JA Solar Deep Blue 4.0 Pro offers 25 years, and the Jinko Tiger Neo (54-cell format) provides 15 years of product warranty. For projects with long financing horizons or public tenders requiring a minimum 15-year product warranty, this may represent a formal disqualifying criterion.

Limited Documented Track Record as a Tier 1 Manufacturer

With BNEF Tier 1 status granted in Q2 2025, Haitai Solar has approximately one year of history as a bankable manufacturer under BNEF's revised, more stringent methodology. Compared to established leaders — LONGi, JA Solar, and Canadian Solar, all present in the rankings for over a decade — this shorter track record may be perceived as a risk factor by institutions financing large project portfolios.

Notes from the database
  • Efficiency of 22.5% matches the TOPCon 450-500W median
  • At 225.2 W/m² power density, roof space requirements are typical for TOPCon 450-500W panels
  • Temperature coefficient of -0.30%/°C matches the TOPCon 450-500W median
  • #4108 for efficiency, #6093 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 450 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.52 % Typical Segment median 22.52%
Vmpp · Impp 29.24 V · 15.39 A Operating point at max power
Voc · Isc 34.73 V · 16.23 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 23.9 kg Typical Typical · median 24.0 kg
Cells 96 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Weak bottom 20% of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 393 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

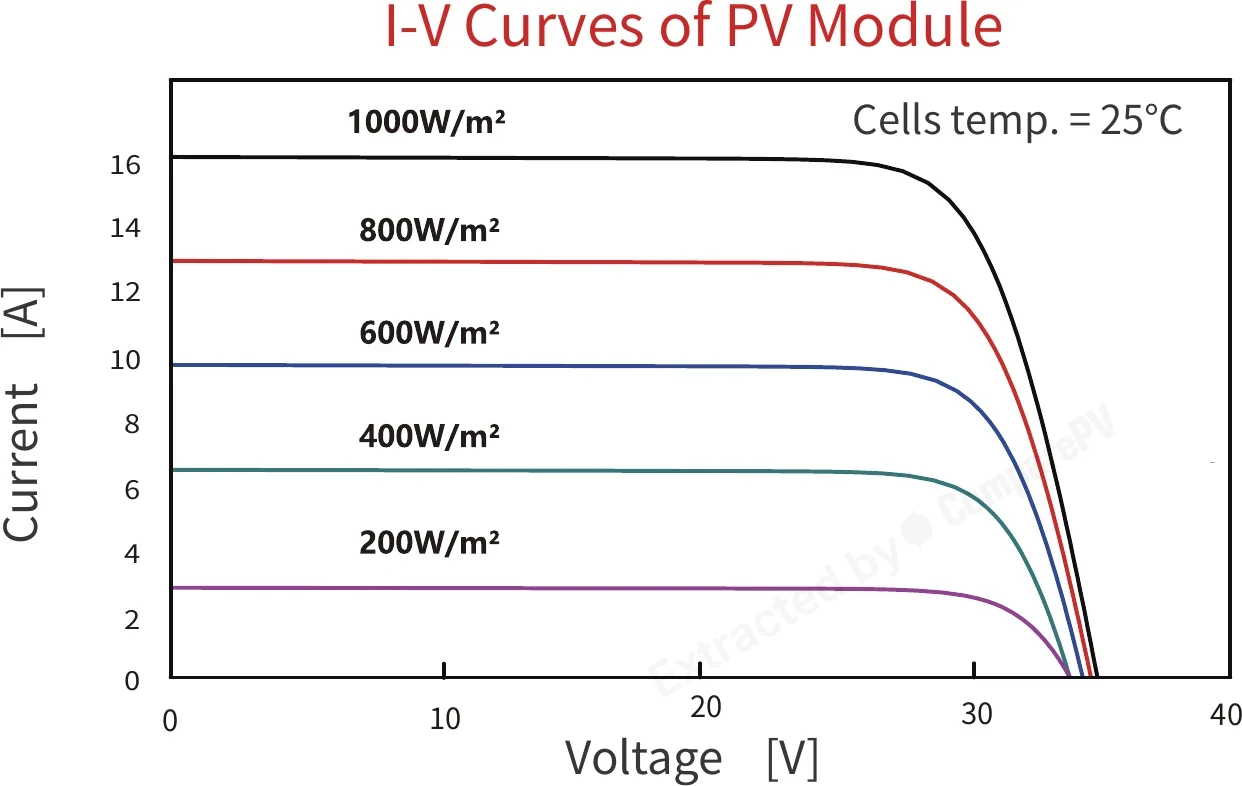

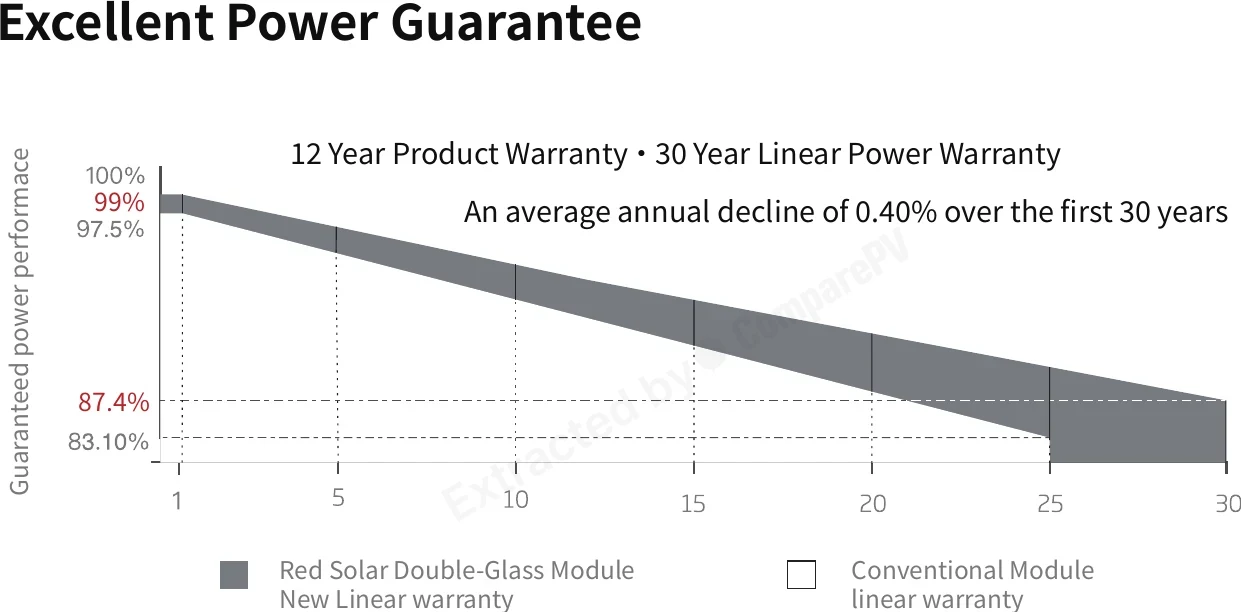

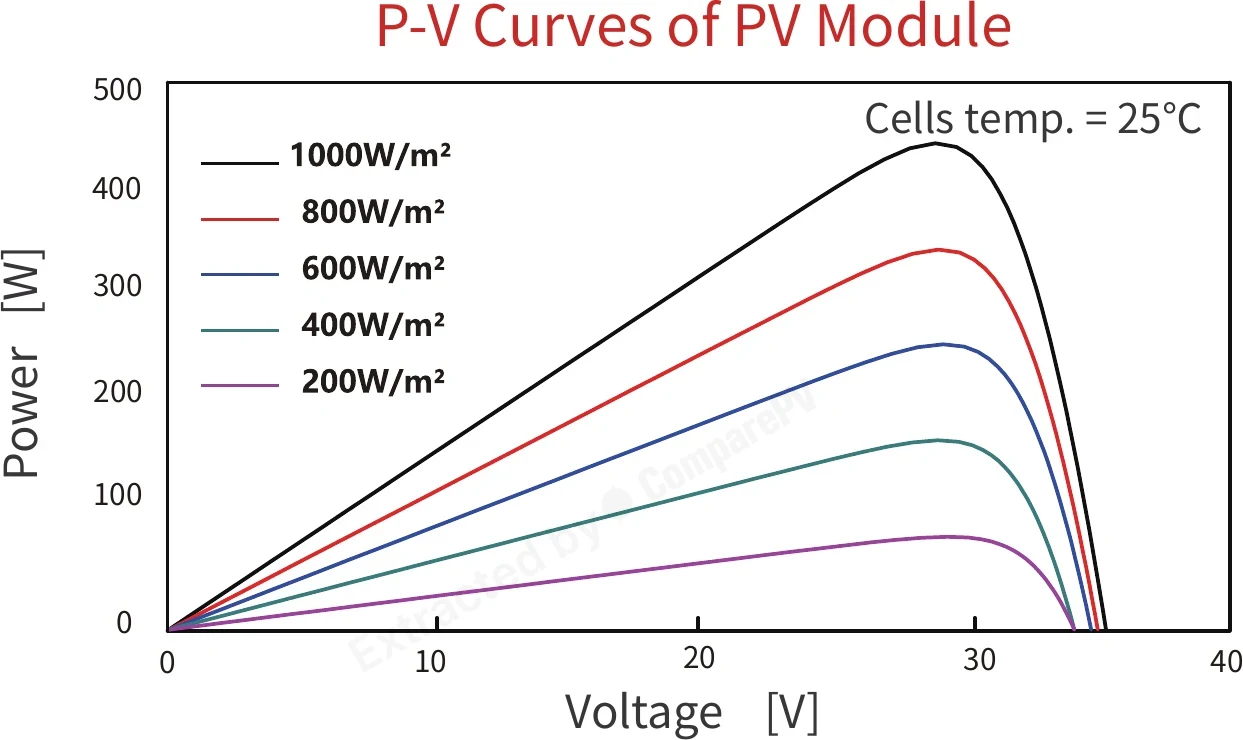

Measured curves published by Haitai Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 450 Wp appear here. The rest cover the whole series.

Excellent Power Guarantee Excellent Power Guarantee Whole series P-V Curves of PV Module P-V Curves of PV Module Whole series I-V Curves of PV Module I-V Curves of PV Module Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Haitai Solar CETC-450TR(GDF)/96 450 W 22.52% -0.300 23.9 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +45 W, cooler, +2.3 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +40 W, cooler, +2.0 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +50 W, cooler, +2.0 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +50 W, cooler, +2.0 pp
GK-3-54HGb-500M 500 W 24.50% -0.260 21.4 kg +50 W, cooler, +2.0 pp
GCL-NR10R/54BGDF 500 W 24.50% -0.260 24.6 kg +50 W, cooler, +2.0 pp
CETC-435TR(GDF)/96 435 W 21.77% -0.300 23.9 kg -15 W, -0.8 pp
CETC-440TR(GDF)/96 440 W 22.02% -0.300 23.9 kg -10 W, -0.5 pp
CETC-445TR(GDF)/96 445 W 22.27% -0.300 23.9 kg -0.2 pp
CETC-455TR(GDF)/96 455 W 22.77% -0.300 23.9 kg +0.2 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +60 W, cooler, +2.5 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +55 W, cooler, +2.2 pp

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty does the Haitai Solar N series G12R bifacial double-glass module come with?
The Haitai Solar N series G12R comes with a 12-year product warranty and a 30-year linear power output warranty. The manufacturer guarantees a degradation rate below 0.4% per year after the first year, meaning the module should still produce at least 87.4% of its rated power after 30 years. These terms are standard for Tier 1 TOPCon-class modules and are well aligned with bankability requirements for large-scale PV projects.
How much more energy can the bifacial Haitai Solar N series G12R generate compared to monofacial panels?
Bifacial modules in the G12R series can generate 5% to 25% more energy than monofacial equivalents, depending on ground albedo and tilt angle. The highest gains occur on light-colored flat roofs, white gravel or concrete ground-mount structures, and snow-covered terrain. A bifacial gain of 10–15% is the standard design assumption under typical conditions, directly improving the LCOE of the overall installation.
How do the Haitai Solar N series G12R modules handle high summer temperatures?
N-type TOPCon cells feature a lower power temperature coefficient of approximately -0.30%/°C compared to PERC technology at -0.35 to -0.40%/°C. On a hot day when module temperature reaches 70°C, this difference translates to several additional percentage points of energy output versus a same-rated PERC module. The glass-glass construction also contributes to greater long-term thermal stability and reduced degradation.
Are the Haitai Solar N series G12R panels suitable for ground-mount systems with single-axis trackers?
Yes, the G12R bifacial double-glass series is particularly well suited for ground-mount installations, including single-axis trackers. The bifacial cells rated up to 455 Wp harvest additional energy from ground-reflected irradiance, and trackers amplify this effect by continuously adjusting the module angle. The robust glass-glass construction also meets the mechanical load requirements of utility-scale PV farms for wind and snow resistance.
What is the G12R cell format used in the Haitai Solar series and how does it differ from standard G12?
G12R (rectangular) uses 182×210 mm cells instead of the square 210×210 mm cells found in standard G12 modules. This makes the modules more compact and easier to transport and install, while still delivering a peak efficiency of around 22.8% and a maximum output of 455 Wp. The reduced transverse dimension also simplifies racking selection and lowers wind load on commercial and industrial rooftops.
Is Haitai Solar a reliable manufacturer — what does Tier 1 status mean for buyers?
Haitai Solar holds Tier 1 manufacturer status per Bloomberg NEF classification, indicating a bankable supplier accepted by major project finance institutions and insurers. Tier 1 status is a standard eligibility criterion for module procurement in financed utility-scale and commercial PV projects. With headquarters in China — the world's largest PV manufacturing hub — the company backs this series with a 12-year product warranty and 30-year power guarantee.
