Solitek Brand review

Magnus 510

510 Wp TOPCon Bifacial
ComparePV verdict

Middle of its segment, heavy for its output

Rank 2,694 of 14,005
Compare panels Datasheet PDF
Power (Wp)
510
Typical for its class
Efficiency (%)
22.93
Typical · median 22.73%
Density (Wp/m²)
229.3
Typical · median 227.4
Temp (%/°C)
-0.300
Weak · bottom 20%
Weight (kg)
28.5
Weak · 1.5 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The Magnus series is SoliTek's response to the growing demand for large-scale photovoltaic installations - both solar farms and extensive commercial systems on the roofs of industrial halls. Its core is N-type TOPCon double-sided cells, which generate energy from both the front and back of the module, significantly increasing energy yield without the need for a larger land footprint. The 120-cell architecture makes Magnus offer an exceptionally favorable power-to-space ratio, reducing installation and associated infrastructure costs. The durable 2mm+2mm glass-glass construction provides exceptional mechanical resistance - the panel withstands hail up to 40 mm in diameter and extreme weather conditions typical of the European climate. The modules are manufactured in Europe, guaranteeing shorter supply chains, a lower carbon footprint, and predictable quality. The series has a prestigious Cradle to Cradle Gold certification, confirming environmental responsibility at every stage of the product lifecycle - from sustainable production to complete recycling. The manufacturer offers a 30-year product warranty, making Magnus an exceptionally attractive choice for developers of photovoltaic farms and industrial investors seeking long-term investment security and minimizing the overall system cost.

Ranking

432 panels in the segment TOPCon 500-550 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.93% 22.73% Typical 2,342
Power density 229.3 227.4 Typical 2,343
Temperature coefficient -0.300 -0.290 Weak · bottom 20% 6,093
Weight per kWp 55.9 52.4 Weak · bottom 8% 10,261
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 2 caution
Best for

Commercial and utility-scale.

Not ideal for

Weight-limited structures and hot climates.

Watch-outs
55.9 kg per kWp

Bottom 8% of the TOPCon 500-550 W segment, against a median of 52.4. Ranked 10,261st in the whole database.

-0.300 %/°C temperature coefficient

Bottom 20% of the TOPCon 500-550 W segment, against a median of -0.290.

Notes from the database
  • At 22.9% efficiency, this panel is on par with typical TOPCon 500-550W modules
  • At 229.3 W/m² power density, roof space requirements are typical for TOPCon 500-550W panels
  • At -0.30%/°C, hot weather performance is typical for TOPCon 500-550W panels
  • At 28.5 kg, this panel is 1.5 kg heavier than the TOPCon 500-550W median (27.0 kg) - more demanding for installation crews
  • #2342 for efficiency, #6093 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 510 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.93 % Typical Segment median 22.73%
Vmpp · Impp 33.34 V · 15.30 A Operating point at max power
Voc · Isc 39.06 V · 15.95 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1961×1134×30 mm · 2.22 m² of roof
Weight 28.5 kg Weak Weak · 1.5 kg above median
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Weak bottom 20% of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 46 °C At 800 W/m², 20 °C ambient
Product warranty 30 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 90.0 % Equals 459 W guaranteed
Degradation 1.00 → 0.31 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Solitek in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 510 Wp appear here. The rest cover the whole series.

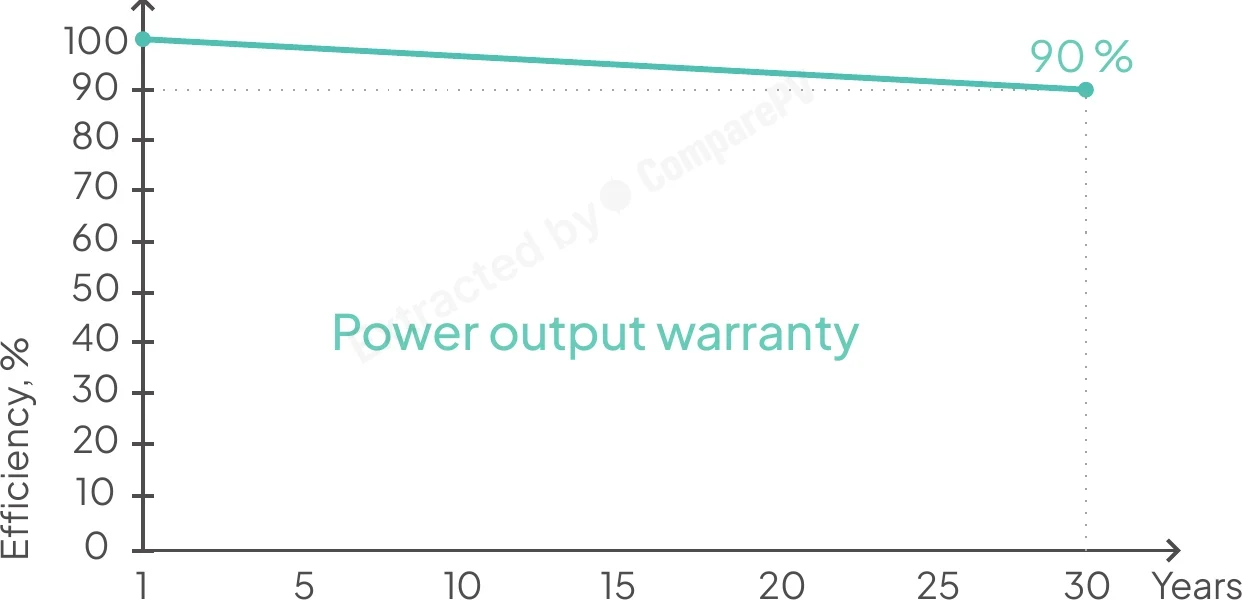

Power output warranty Power output warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Solitek Magnus 510 510 W 22.93% -0.300 28.5 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, lighter, +2.1 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +1.9 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +50 W, cooler, +1.9 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, lighter, +1.8 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +45 W, cooler, +1.7 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, lighter, +1.6 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, lighter, +1.6 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +40 W, lighter, +1.5 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg Cooler, lighter, +1.5 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg Cooler, lighter, +1.5 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg +35 W, cooler, +1.3 pp
LR7-60HVH-545M 545 W 24.20% -0.260 25.0 kg +35 W, cooler, +1.3 pp

Found 471 panels of the same or similar size to this one, within ±10 mm. See them here Found 508 panels of the same or similar size to this one, within ±25 mm. See them here Found 662 panels of the same or similar size to this one, within ±50 mm. See them here Found 1471 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Are SoliTek Magnus panels suitable for large-scale solar farms and commercial rooftop installations?
Yes, the Magnus series was specifically engineered for utility-scale and large commercial applications — solar farms and expansive rooftop systems on industrial buildings. With 120 N-type TOPCon bifacial cells and up to 510 Wp peak power, fewer modules are needed per megawatt, reducing balance-of-system (BoS) costs. European manufacturing ensures reliable supply chains and consistent quality, both critical for large-scale procurement.
What warranty does the SoliTek Magnus solar panel come with?
SoliTek backs the Magnus with a 30-year product warranty covering material and workmanship defects, plus a 30-year linear power output guarantee. This extended coverage is a key advantage for solar farm developers and industrial investors who require long-term performance certainty and want to minimize unexpected O&M costs over the full system lifecycle.
What is N-type TOPCon technology and how does it compare to older PERC panels in the Magnus series?
TOPCon (Tunnel Oxide Passivated Contact) is an advanced N-type silicon cell technology that delivers higher module efficiency and lower long-term degradation rates compared to PERC. It also performs better at elevated operating temperatures and under diffuse irradiance on overcast days. Magnus reaches up to 22.93% module efficiency, translating into more kilowatt-hours per unit area across the full 30-year operational lifetime.
What does bifacial mean for the Magnus panel, and how much additional energy can the rear side generate?
Bifacial modules capture irradiance from both the front and the rear surface, utilizing light reflected from the ground, rooftop, or surrounding environment. In ground-mount solar farms with light-colored surfaces, bifacial gain typically adds 10–15% in additional energy yield. The 2mm+2mm glass-glass construction protects the rear cell surface for the full 30-year operational lifetime without degradation caused by moisture or UV exposure.
Are SoliTek Magnus panels resistant to hail and harsh weather conditions?
Yes. The 2mm+2mm glass-glass construction allows Magnus to withstand hailstones up to 40 mm in diameter and the extreme weather conditions typical of the European climate. The frameless glass-glass design also eliminates corrosion risk at aluminum-frame contact points — an important long-term reliability benefit for utility-scale and industrial installations exposed to decades of outdoor conditions.
What is the Cradle to Cradle Gold certification and why does it matter when purchasing Magnus panels?
Cradle to Cradle Gold is one of the world's most rigorous sustainability standards, evaluating products across material health, circularity, clean production, water stewardship, and social fairness. For the Magnus series it confirms environmentally responsible practices at every stage of the product lifecycle, from European manufacturing through to full end-of-life recycling. This is a significant advantage for investors pursuing ESG targets, green financing, or carbon footprint reporting obligations.
