Efficiency leader, no clear weak spot
The DMEGC INFINITY RT (DMxxxM10RT-B60HBT) are bifacial modules featuring a dual-string (glass-glass) construction, based on N-type monocrystalline cells utilizing TOPCon technology. In practice, this means they outperform many standard P-type modules in real-world conditions, especially at high temperatures and during periods of reduced sunlight. The rear side gain helps boost energy yield in locations with reflective surfaces (bright roofs, gravel, concrete), which investors looking for maximum energy output from the same footprint value.
The B60HBT version is ideal for installations where both energy generation and aesthetics matter - including residential rooftops, carports, and commercial projects. The rigidity and sealing of the structure support high mechanical durability and parameter stability over time, translating to safer operation and lower risk of performance degradation. This series stands out from the competition by combining TOPCon technology, bifacial capability, and dual-string glass-glass construction in a format convenient for modern roofing applications.
Ranking
Signals from the data
Residential, commercial and hot-climate.
Top 23% of the TOPCon 500-550 W segment, against a median of 22.73%.
Top 25% of the TOPCon 500-550 W segment, against a median of 227.4.
A peak efficiency of 23.1% positions the series above peer comparables such as the Trina Solar Vertex Backsheet (21.2%) and on par with the JA Solar JAM60S40 LR (23%). This translates into meaningfully higher power output from the same roof area, which is particularly valuable in space-constrained installations.
The manufacturer guarantees ≤1% degradation in year one and ≤0.4% per year thereafter, ensuring a minimum of 87.4% rated power after 30 years. The market standard for most peer comparables — including JA Solar and Trina — is a 25-year power warranty; the DMEGC INFINITY RT extends that horizon by a full five years at no additional cost.
The N-type TOPCon technology delivers a Pmax temperature coefficient of –0.29%/°C, compared to the –0.34…–0.36%/°C typical of P-type PERC modules. At a summer module operating temperature of 65°C, the advantage over PERC translates to approximately 1.5–2% higher hourly energy yield.
The module withstands a front load of 5,400 Pa and a rear load of 2,400 Pa using 2+2 mm tempered glass, with IEC 61215, IEC 61730, and TÜV Rheinland certification. Eliminating the backsheet reduces the risk of PID degradation and cell micro-cracks, directly supporting output stability over the long term.
DMEGC Solar maintains BloombergNEF Tier-1 status through at least Q3 2025, backed by a manufacturing capacity of 21 GW. Tier-1 classification is a prerequisite for non-recourse project financing and a mandatory criterion in many commercial and utility-scale tenders.
The dual-glass construction raises module weight to approximately 26.8 kg, compared to ~21–22 kg for a typical single-glass backsheet module (e.g., Trina Vertex Backsheet in single-glass configuration). On rooftops with limited load-bearing capacity or in retrofit installations, a structural assessment must be completed prior to mounting.
- Efficiency of 23.1% matches the TOPCon 500-550W median
- At 230.6 W/m² power density, this panel generates 3.2 W/m² more per unit area than TOPCon 500-550W median (227.4 W/m²)
- Temperature coefficient of -0.29%/°C matches the TOPCon 500-550W median
- Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface
- Ranked #1570 out of 14005 panels for efficiency in the database
Specifications
Datasheet charts

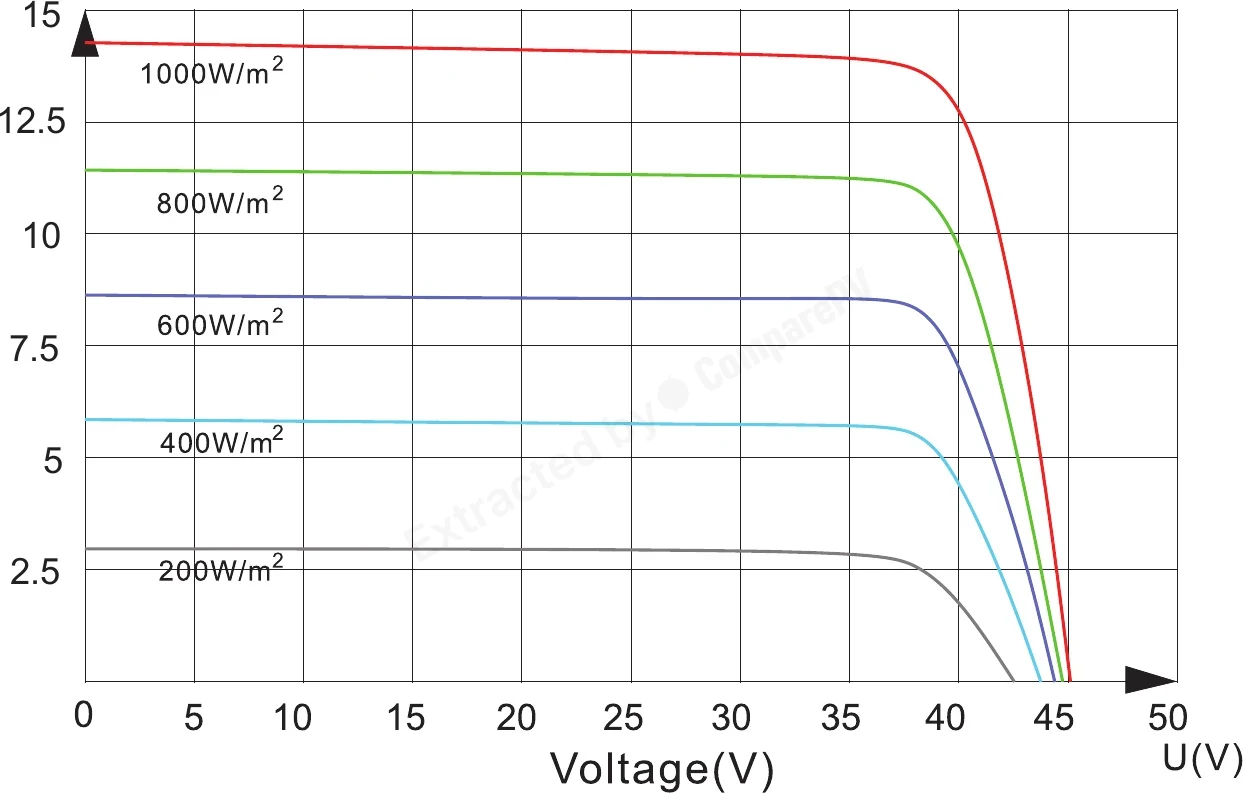

Measured curves published by DMEGC in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 510 Wp appear here. The rest cover the whole series.
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.
