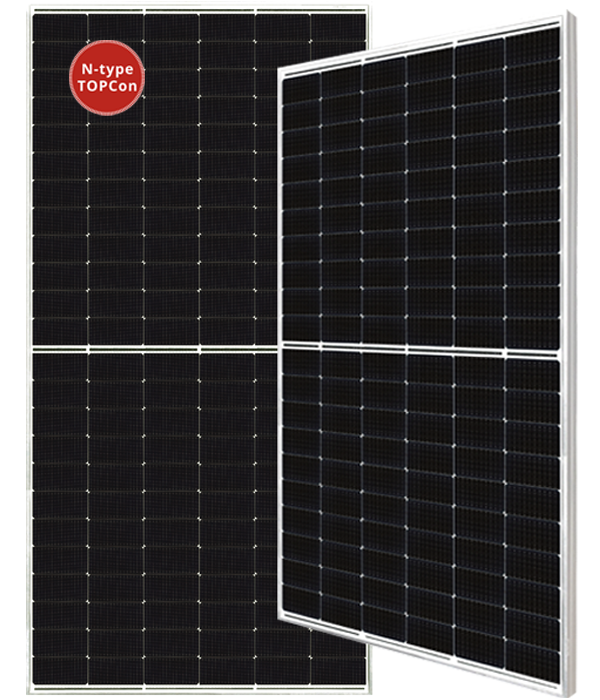

Canadian Solar CS6.2-48TD-435
Canadian Solar Brand review

CS6.2-48TD-435

435 Wp TOPCon
ComparePV verdict

Middle of its segment, heavy for its output

Rank 7,707 of 14,005
Compare panels Datasheet PDF
Power (Wp)
435
Typical for its class
Efficiency (%)
21.80
Typical · median 22.00%
Density (Wp/m²)
217.7
Typical · median 220.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
24.6
Weak · 2.6 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The Canadian Solar TOPHiKu6 (All-Black) series was designed for roofs where both aesthetics and high energy production matter. The use of N-type TOPCon cells helps reduce typical losses associated with degradation and maintains stable performance over the long term - especially significant given rising energy costs and growing self-consumption planning. ([csisolar.com](https://www.csisolar.com/na/tophiku6/?utm_source=openai))

A key feature is the all-black construction - a black frame and black backsheet facilitate seamless integration with modern roofing and façade materials, avoiding the typical "solar panel look." ([sunwatts.com](https://sunwatts.com/450-watt-canadian-solar-topcon-all-black-solar-panel/?utm_source=openai))

The modules utilize half-cell technology and advanced current collection solutions (including multi-stringing), enhancing performance under partial shading and minimizing hot-spot risks. Additionally, the manufacturer highlights PID resistance and improved mechanical reliability for demanding conditions. ([sunwatts.com](https://sunwatts.com/450-watt-canadian-solar-topcon-all-black-solar-panel/?utm_source=openai))

The TOPHiKu6 (All-Black) is an excellent choice for residential and commercial installations on visible roofs, where competition often forces compromises between aesthetics and technology. ([sunwatts.com](https://sunwatts.com/450-watt-canadian-solar-topcon-all-black-solar-panel/?utm_source=openai))

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.80% 22.00% Typical 7,022
Power density 217.7 220.2 Typical 7,066
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 56.6 51.4 Weak · bottom 17% 10,706
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 2 caution
Best for

Residential, commercial and shaded-installations.

Not ideal for

Weight-limited structures.

Watch-outs
56.6 kg per kWp

Bottom 17% of the TOPCon 400-450 W segment, against a median of 51.4.

What owners get
Low Temperature Coefficient — TOPCon Technology

N-type TOPCon cells deliver a Pmax temperature coefficient of -0.29%/°C, resulting in higher energy yield on hot days compared to standard PERC modules (-0.35%/°C). In the Polish climate this difference is less critical, yet during summer months when module temperatures reach 60–70°C, the gap in power losses can amount to as much as 3 percentage points.

30-Year Linear Power Warranty

Canadian Solar guarantees linear degradation for 30 years — longer than the 25-year industry standard offered by most Tier-1 competitors (e.g., JA Solar, Risen). The extended warranty horizon directly improves the financial model of an installation when calculating LCOE and assessing project bankability.

Uncompromised All-Black Aesthetics

The black frame and black backsheet create a uniform rooftop appearance, eliminating the "checkerboard" effect characteristic of standard modules with a white backsheet. This is particularly valued in installations on visible pitched roofs and in architectural projects requiring consistent color uniformity.

High Mechanical Resistance

The module withstands snow loads up to 5,400 Pa and wind loads up to 2,400 Pa (per IEC 61215), placing it above the minimum European standard requirements (3,600 Pa / 2,400 Pa). This is especially relevant for installations in mountainous regions or areas with heavy snowfall.

Tier-1 Manufacturer, Bankable Since 2001

Canadian Solar has maintained Bloomberg NEF Tier-1 bankable status continuously for over a decade, minimizing counterparty risk. The company has been in operation since 2001 and maintains a global service network, which is critical when considering 25- and 30-year warranty commitments.

Trade-offs
Module Efficiency Below Peer Comparables

Module efficiency stands at 21.8%, while direct competitors in the same 435 W power class achieve 22.27–22.28%: Luxen Solar LUXPOWER N5, ZNShine ZXM7-UHLDD108, and Solitek SOLID Blackstar. The ~0.5 percentage point difference means that on the same roof area (approx. 2 m²), competing modules will produce approximately 10–11 W more; scaled to a 10 kWp system, this translates to roughly 230–250 W less total installed capacity.

Notes from the database
  • Efficiency of 21.8% matches the TOPCon 400-450W median
  • Power density of 217.7 W/m² matches the TOPCon 400-450W median
  • Temperature coefficient of -0.29%/°C matches the TOPCon 400-450W median
  • Weight of 24.6 kg is 2.6 kg above TOPCon 400-450W median (22.0 kg) - verify structural support
  • In the top 50% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 435 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.80 % Typical Segment median 22.00%
Vmpp · Impp 44.20 V · 9.85 A Operating point at max power
Voc · Isc 52.30 V · 10.47 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 24.6 kg Weak Weak · 2.6 kg above median
Cells 144 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 380 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Canadian Solar CS6.2-48TD-435 435 W 21.80% -0.290 24.6 kg You are here
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg +50 W, lighter, +2.5 pp
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg +50 W, lighter, +2.5 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg +50 W, lighter, +2.5 pp
GK-5-54HG-485M 485 W 24.30% -0.260 21.0 kg +50 W, lighter, +2.5 pp
ZEUS 3.0+ 108 485WP 485 W 24.30% -0.260 24.2 kg +50 W, cooler, +2.5 pp
CS6.2-48TD-440 440 W 22.00% -0.290 24.6 kg Very close match
CS6.2-48TD-445 445 W 22.30% -0.290 24.6 kg +10 W, +0.5 pp
CS6.2-48TD-450 450 W 22.50% -0.290 24.6 kg +15 W, +0.7 pp
CS6.2-48TD-455 455 W 22.80% -0.290 24.6 kg +20 W, +1.0 pp
CS6.2-48TD-460 460 W 23.00% -0.290 24.6 kg +25 W, +1.2 pp
CS6.2-48TD-465 465 W 23.30% -0.290 24.6 kg +30 W, +1.5 pp
CS6.2-48TD-470 470 W 23.50% -0.290 24.6 kg +35 W, +1.7 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +75 W, cooler, +3.2 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +60 W, lighter, +3.0 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +70 W, cooler, +2.9 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +55 W, lighter, +2.7 pp

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What warranty coverage applies to the Canadian Solar TOPHiKu6 (All-Black) series?
The TOPHiKu6 (All-Black) series comes with a 25-year product warranty covering materials and workmanship, along with a 30-year linear power output warranty. This means the manufacturer commits to maintaining a specified energy yield level for three decades — one of the longest warranty commitments available on the market and a compelling factor when calculating return on investment.
How does the TOPCon technology in the TOPHiKu6 series differ from conventional PERC cells?
The N-type TOPCon cells used in the TOPHiKu6 series feature a lower temperature coefficient of power (approximately -0.29%/°C) compared to typical PERC cells, resulting in reduced losses on hot days. This technology also demonstrates superior resistance to LID and LeTID degradation, allowing the module to retain higher power output over its operating lifetime compared to older-generation modules.
Will the TOPHiKu6 (All-Black) panel perform well on a partially shaded roof?
Yes, the TOPHiKu6 (All-Black) series employs half-cut cell technology combined with a multi-busbar current collection architecture. As a result, shading of part of the module — caused by a chimney, antenna, or dormer windows — does not produce the same level of energy losses as in older module designs. The additional resistance to PID ensures stable operation even in challenging installation conditions.
What are the dimensions and weight of the Canadian Solar TOPHiKu6 (All-Black) 435W panel?
The TOPHiKu6 (All-Black) module in the 435W variant has dimensions of approximately 1762 × 1134 × 30 mm and weighs around 20–21 kg. The standard form factor and manageable weight facilitate rooftop transport and installation on typical aluminum racking systems without the need for specialized equipment. Exact dimensions should be confirmed in the datasheet for the specific model.
Why does the TOPHiKu6 (All-Black) series feature a black frame, and what does this mean for installation?
The all-black design combines a black anodized aluminum frame with a black backsheet, giving the entire module a uniform, dark appearance. This aesthetic solution is well suited for visible roof surfaces, dark ceramic roof tiles, or façade-integrated installations, eliminating the contrasting effect of a conventional silver frame. The visual design has no negative impact on the module's energy performance.
Is Canadian Solar a reliable manufacturer, and is the TOPHiKu6 (All-Black) series available in Poland?
Canadian Solar is classified as a Tier 1 manufacturer according to bankability rankings (BNEF), reflecting its established market position and creditworthiness as recognized by financial institutions. The company operates a global manufacturing and service network. The TOPHiKu6 (All-Black) series is an active product line available through Polish renewable energy distributors, although the specific wattage variants in stock may vary depending on the distributor's inventory.
