Strong in heat, heavy for its output
The Terra E CMER-72BD series is engineered for agrivoltaic applications, where the module doubles as both a roofing element and a power source. The defining feature of this line is high transparency of up to 40%, enabling homogeneous light distribution for crops grown beneath modules installed on greenhouse structures or agri-PV canopies. The panel shields plants from hail, heavy rain, and wind while also reducing heat stress during droughts and frost periods. Its bifacial double-glass construction boosts energy yield by capturing light reflected from the ground, improving LCOE in commercial installations. The half-cut n-Type TOPCon cells deliver lower power degradation over time and more stable performance under high temperatures compared to standard PERC structures. A reinforced frame and tempered, anti-reflective coated glass ensure high mechanical resistance to snow and wind loads, making the series well suited to demanding weather conditions. This makes it a strong choice for agricultural investors, greenhouse developers, and agri-PV projects that need to combine crop protection with a stable source of electricity revenue.
Ranking
Signals from the data
Agrivoltaic, commercial and shaded-installations.
Weight-limited structures, tight roof space and roofs where every square metre has to count.
Top 4% of the PERC 300-350 W segment, against a median of -0.360. Ranked 2,220th in the whole database.
Top 16% of the PERC 300-350 W segment, against a median of 25 yrs.
Bottom 1% of the PERC 300-350 W segment, against a median of 60.3. Ranked 13,920th in the whole database.
Bottom 1% of the PERC 300-350 W segment, against a median of 19.00%. Ranked 13,962nd in the whole database.
Bottom 1% of the PERC 300-350 W segment, against a median of 190.0. Ranked 13,938th in the whole database.
The series offers light transmittance of up to 40%, enabling homogeneous illumination of crops under greenhouse structures and agrivoltaic canopies - a feature rarely found in standard tier-1 panels (Canadian Solar HiDM, Jinko Cheetah HC), which do not offer this type of solution.
The glass-glass bifacial construction captures light reflected from the ground, improving the LCOE in commercial projects and extending module lifespan through better moisture protection compared to backsheet-based designs.
TOPCon technology delivers lower LID/LeTID degradation and more stable performance at high temperatures than older PERC structures, translating into higher real-world annual yield - particularly relevant during hot growing-season months.
The manufacturer provides a 30-year power output warranty, matching the current market standard for TOPCon modules and exceeding the 25-year power warranties still common in the PERC segment until recently.
AE Solar is a Tier-1 manufacturer headquartered in Germany, operating since 2003, which enhances project bankability for financiers requiring a documented supply track record and supplier financial stability.
Module efficiency ranges from 14.64-15.54%, significantly below comparable Tier-1 modules such as Canadian Solar HiDM (20.5%) or Jinko Cheetah HC 60M-V (20.45%). This is a direct consequence of the 40% transparency reducing active cell area - an acceptable trade-off for agri-PV, but a disadvantage in per-m² power comparisons for projects that don't require crop light transmission.
The product warranty is 15 years, while some competing TOPCon modules on the market already offer a 25-year product warranty alongside a 30-year power warranty - a meaningful factor for investors comparing total service-risk cost.
- At 14.9% efficiency, this panel is 4.6pp below the PERC 0-400W median of 19.4%
- 148.6 W/m² power density is 45.6 W/m² below PERC 0-400W median (194.2 W/m²) - requires larger installation area
- At -0.29%/°C (vs median -0.36%/°C), loses ~3% less power in hot conditions
- At 27.5 kg, this panel is 7.0 kg heavier than the PERC 0-400W median (20.5 kg) - more demanding for installation crews
- Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface
Specifications

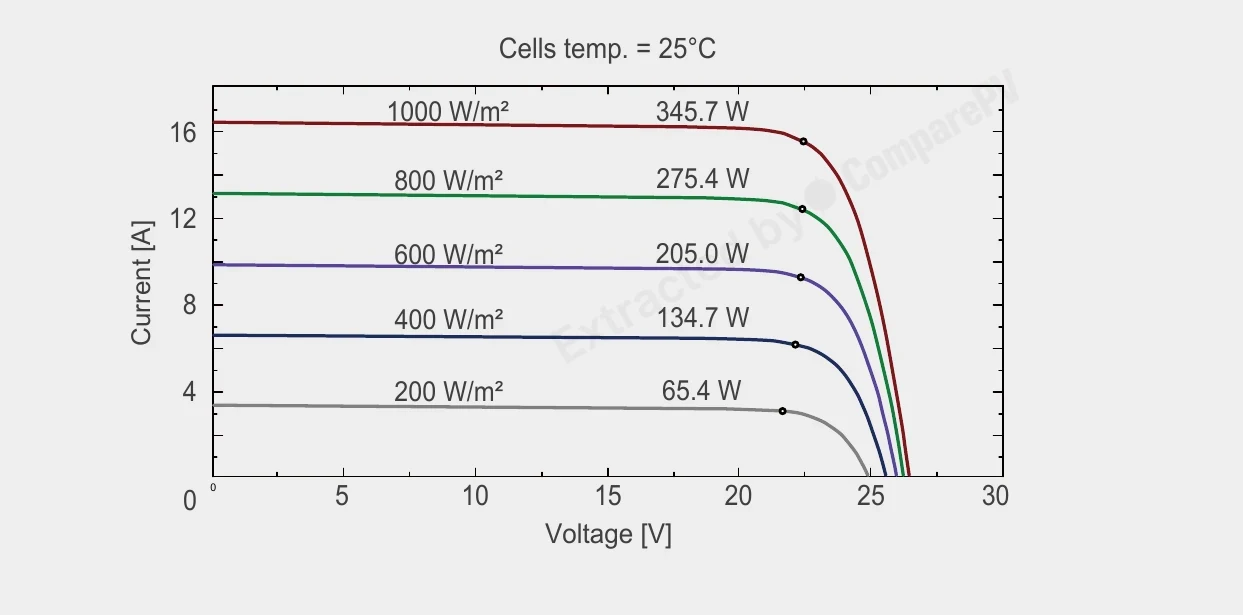

Datasheet charts
Measured curves published by AE Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 330 Wp appear here. The rest cover the whole series.
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.
Found 488 panels of the same or similar size to this one, within ±10 mm. See them here Found 508 panels of the same or similar size to this one, within ±25 mm. See them here Found 776 panels of the same or similar size to this one, within ±50 mm. See them here Found 1476 panels of the same or similar size to this one, within ±100 mm. See them here
About the Terra E CMER-72BD series
These answers cover the whole series. Where a figure differs, the specification above is this module's own.
