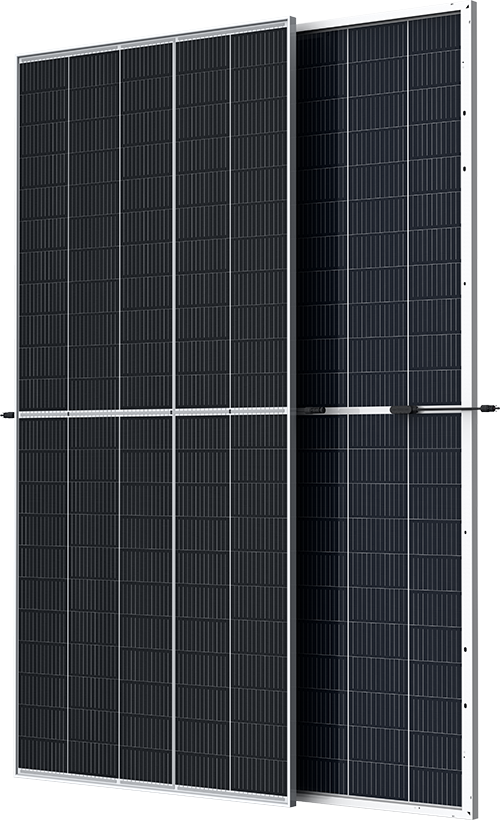

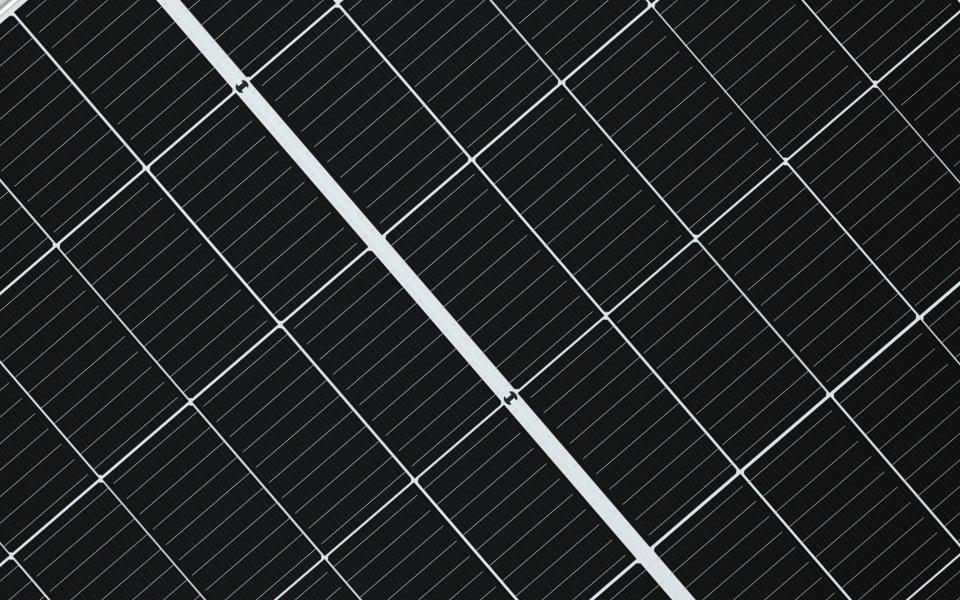

Trina Solar TSM-DE19R-565 vs Trina Solar TSM-DE19-550
VS
The verdict
DE19R-565 leads on the differences that matter
The largest is open-circuit voltage: 7.70 V apart. 11 of 19 comparable parameters are identical.
See all 8 differencesHow alike are they
11
of 19 comparable
parameters are identical
parameters are identical
identical
differs
01
8 of 19 parameters
What actually differs
Parameter
DE19R-565
DE19-550
Difference
Open-circuit voltage
45.60 V
37.90 V
7.70 V apart
Short-circuit current
15.81 A
18.52 A
2.71 A apart
Module area
2.701 m²
2.613 m²
0.088 m² apart
Rated power
565 Wp
550 Wp
15 W more power
Voltage at max power
38.30 V
31.60 V
6.70 V apart
Current at max power
14.76 A
17.40 A
2.64 A apart
Cell count
132
110
22 cells apart
Dimensions
2382x1134x30 mm
2384x1096x30 mm
2382x1134x30 mm vs 2384x1096x30 mm
02
What it means on a roof
Thirty years of production
Each panel's own declared degradation curve, at 1,200 kWh/kWp a year
Same temp coeff. for both panels (-0.340 %/°C), so a warmer roof scales both curves by the same factor: the totals fall together and neither panel gains on the other.
DE19R-565
18,311 kWh
DE19-550
17,825 kWh
Lifetime gap
486 kWh
Output when it is hot
Rated power carried across the range a module actually sees
Scenario
DE19R-565
DE19-550
Standard test conditions
25 °C
100.0% of rated power
565 W
550 W
Cool, bright day
40 °C
94.9% of rated power
536 W
522 W
Typical summer roof
55 °C
89.8% of rated power
507 W
494 W
Hot roof
70 °C
84.7% of rated power
479 W
466 W
03
Full specification
Parameter
DE19R-565
DE19-550
Difference
Power and efficiency
Rated power
565 Wp
550 Wp
+15 W for DE19R-565
Module efficiency
20.90 %
21.00 %
Effectively the same
Power density
209.2 Wp/m²
210.5 Wp/m²
Effectively the same
Open-circuit voltage
45.60 V
37.90 V
7.70 V apart
Voltage at max power
38.30 V
31.60 V
6.70 V apart
Short-circuit current
15.81 A
18.52 A
2.71 A apart
Current at max power
14.76 A
17.40 A
2.64 A apart
Temperature
Temperature coefficient
-0.340 %/°C
-0.340 %/°C
Same
Mechanical
Dimensions
2382x1134x30 mm
2384x1096x30 mm
2382x1134x30 mm vs 2384x1096x30 mm
Module area
2.701 m²
2.613 m²
0.088 m² apart
Weight
28.1 kg
28.3 kg
Effectively the same
Weight per kWp
49.7 kg/kWp
51.5 kg/kWp
Effectively the same
Warranty and degradation
Product warranty
12 yrs
12 yrs
Same
Performance warranty
25 yrs
25 yrs
Same
Annual degradation
0.55 %/yr
0.55 %/yr
Same
Technology
Cell technology
PERC
PERC
Same
Cell type
Monocrystalline
Monocrystalline
Same
Cell count
132
110
22 cells apart
Bifacial
No
No
Same
04
14,005 panels
Against the whole database
Efficiency
#10,072
vs
#9,758
DE19-550 leads by 314 places
Power density
#10,086
vs
#9,622
DE19-550 leads by 464 places
Heat behaviour
#8,778
vs
#8,778
Tied - the same position in the database
Weight
#3,211
vs
#4,829
DE19R-565 leads by 1,618 places
Warranty
#9,798
vs
#9,798
Tied - the same position in the database
Overall
#7,948
vs
#8,437
DE19R-565 leads by 489 places
05
Open the full database
More useful comparisons
Same series, other bin
Trina Solar TSM-DE19R-565 vs Trina Solar TSM-DE19R-585
5 differences, the largest is module efficiency
Same series, other bin
Trina Solar TSM-DE19R-565 vs Trina Solar TSM-DE19R-580
3 differences, the largest is module efficiency
Same series, other bin
Trina Solar TSM-DE19R-565 vs Trina Solar TSM-DE19R-575
3 differences, the largest is module efficiency
Same series, other bin
Trina Solar TSM-DE19R-565 vs Trina Solar TSM-DE19R-570
One difference: module efficiency
Same series, other bin
Trina Solar TSM-DE19-550 vs Trina Solar TSM-DE19-560
3 differences, the largest is module efficiency
Same series, other bin
Trina Solar TSM-DE19-550 vs Trina Solar TSM-DE19-555
One difference: module efficiency
06
Written summary
Checking cache...
07
Questions about this pairing
Which panel is better: Trina Solar TSM-DE19R-565 or Trina Solar TSM-DE19-550?
According to our database: Trina Solar TSM-DE19-550 has higher module efficiency (21.00% vs 20.90%). See the full spec comparison and 30-year energy simulation above for a complete picture.
What is the efficiency of Trina Solar TSM-DE19R-565 and Trina Solar TSM-DE19-550?
Trina Solar TSM-DE19R-565 has a module efficiency of 20.90%, while Trina Solar TSM-DE19-550 is 21.00%. Higher efficiency means more electricity from the same roof area - useful when space is limited.
What cell technology does Trina Solar TSM-DE19R-565 use vs Trina Solar TSM-DE19-550?
Trina Solar TSM-DE19R-565 uses PERC cells; Trina Solar TSM-DE19-550 uses PERC. Modern n-type technologies (TOPCon, HJT, BC) typically deliver higher efficiency and lower degradation compared to older PERC (p-type) cells.
What is the warranty on Trina Solar TSM-DE19R-565 and Trina Solar TSM-DE19-550?
Trina Solar TSM-DE19R-565 has a 25 years power warranty; Trina Solar TSM-DE19-550 has a 25 years power warranty. The power warranty guarantees a minimum percentage of rated output at the end of the warranty period (typically 80-87%). Product (materials) warranties are usually shorter.
Shop prices: See 248 Trina Solar offers
Every figure here is from the manufacturers' own datasheets - a dash means the value is not published, never an estimate. The thirty-year projection and the temperature scenarios are calculations from those figures, and each states its assumption above.
