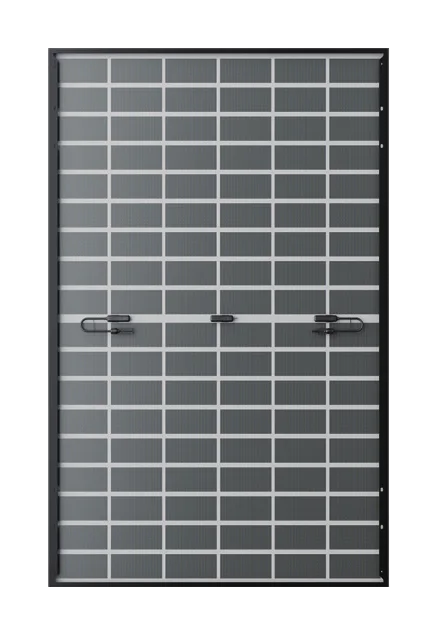

Longi Solar LR7-54HJD-495M vs Longi Solar LR7-72HVD-665M
VS
The verdict
13 differences, and they point both ways
The largest is rated power: 170 W more power. 6 of 19 comparable parameters are identical.
See all 13 differencesHow alike are they
6
of 19 comparable
parameters are identical
parameters are identical
identical
differs
01
13 of 19 parameters
What actually differs
Parameter
54HJD-495M
72HVD-665M
Difference
Rated power
495 Wp
665 Wp
170 W more power
Weight
23.5 kg
33.5 kg
10.0 kg lighter
Product warranty
30 yrs
15 yrs
15 yrs longer
Temperature coefficient
-0.240 %/°C
-0.260 %/°C
0.020 %/°C better in heat
Open-circuit voltage
41.25 V
54.52 V
13.27 V apart
Module area
2.041 m²
2.701 m²
0.660 m² apart
Module efficiency
24.30 %
24.60 %
0.30 pp more efficient
Cell technology
Back Contact
N-type
Back Contact vs N-type
Power density
242.5 Wp/m²
246.2 Wp/m²
3.7 Wp/m² higher
Weight per kWp
47.5 kg/kWp
50.4 kg/kWp
2.9 kg/kWp lighter
Voltage at max power
34.07 V
45.17 V
11.10 V apart
Cell count
108
144
36 cells apart
Dimensions
1800x1134x30 mm
2382x1134x30 mm
1800x1134x30 mm vs 2382x1134x30 mm
02
What it means on a roof
Thirty years of production
Each panel's own declared degradation curve, at 1,200 kWh/kWp a year
54HJD-495M
16,737 kWh
72HVD-665M
22,486 kWh
Lifetime gap
5,749 kWh
Output when it is hot
Rated power carried across the range a module actually sees
Scenario
54HJD-495M
72HVD-665M
Standard test conditions
25 °C
100.0% of rated power
495 W
665 W
Cool, bright day
40 °C
96.1% of rated power
477 W
639 W
Typical summer roof
55 °C
92.2% of rated power
459 W
613 W
Hot roof
70 °C
88.3% of rated power
442 W
587 W
03
Full specification
Parameter
54HJD-495M
72HVD-665M
Difference
Power and efficiency
Rated power
495 Wp
665 Wp
+170 W for 72HVD-665M
Module efficiency
24.30 %
24.60 %
+0.30 pp for 72HVD-665M
Power density
242.5 Wp/m²
246.2 Wp/m²
+3.7 Wp/m² for 72HVD-665M
Open-circuit voltage
41.25 V
54.52 V
13.27 V apart
Voltage at max power
34.07 V
45.17 V
11.10 V apart
Short-circuit current
15.19 A
15.35 A
Effectively the same
Current at max power
14.53 A
14.72 A
Effectively the same
Temperature
Temperature coefficient
-0.240 %/°C
-0.260 %/°C
+0.020 %/°C for 54HJD-495M
Mechanical
Dimensions
1800x1134x30 mm
2382x1134x30 mm
1800x1134x30 mm vs 2382x1134x30 mm
Module area
2.041 m²
2.701 m²
0.660 m² apart
Weight
23.5 kg
33.5 kg
-10.0 kg for 54HJD-495M
Weight per kWp
47.5 kg/kWp
50.4 kg/kWp
-2.9 kg/kWp for 54HJD-495M
Warranty and degradation
Product warranty
30 yrs
15 yrs
+15 yrs for 54HJD-495M
Performance warranty
30 yrs
30 yrs
Same
Annual degradation
0.35 %/yr
0.35 %/yr
Same
Technology
Cell technology
Back Contact
N-type
Back Contact vs N-type
Cell type
Monocrystalline
Monocrystalline
Same
Cell count
108
144
36 cells apart
Bifacial
Yes
Yes
Same
04
14,005 panels
Against the whole database
Efficiency
#131
vs
#51
72HVD-665M leads by 80 places
Power density
#159
vs
#42
72HVD-665M leads by 117 places
Heat behaviour
#13
vs
#511
54HJD-495M leads by 498 places
Weight
#1,708
vs
#3,742
54HJD-495M leads by 2,034 places
Warranty
#21
vs
#21
Tied - the same position in the database
Overall
#1,810
vs
#414
72HVD-665M leads by 1,396 places
05
Open the full database
More useful comparisons
Same series, other bin
Longi Solar LR7-54HJD-495M vs Longi Solar LR7-54HJD-510M
3 differences, the largest is module efficiency
Same series, other bin
Longi Solar LR7-54HJD-495M vs Longi Solar LR7-54HJD-505M
3 differences, the largest is module efficiency
Same series, other bin
Longi Solar LR7-54HJD-495M vs Longi Solar LR7-54HJD-500M
One difference: module efficiency
Same series, other bin
Longi Solar LR7-72HVD-665M vs Longi Solar LR7-72HVD-660M
One difference: module efficiency
Same series, other bin
Longi Solar LR7-72HVD-665M vs Longi Solar LR7-72HVD-655M
3 differences, the largest is module efficiency
Same series, other bin
Longi Solar LR7-72HVD-665M vs Longi Solar LR7-72HVD-650M
3 differences, the largest is module efficiency
06
Written summary
Checking cache...
07
Questions about this pairing
Which panel is better: Longi Solar LR7-54HJD-495M or Longi Solar LR7-72HVD-665M?
According to our database: Longi Solar LR7-72HVD-665M has higher module efficiency (24.60% vs 24.30%); Longi Solar LR7-54HJD-495M tolerates heat better (temp coeff -0.240%/°C vs -0.260%/°C). See the full spec comparison and 30-year energy simulation above for a complete picture.
What is the efficiency of Longi Solar LR7-54HJD-495M and Longi Solar LR7-72HVD-665M?
Longi Solar LR7-54HJD-495M has a module efficiency of 24.30%, while Longi Solar LR7-72HVD-665M is 24.60%. Higher efficiency means more electricity from the same roof area - useful when space is limited.
What cell technology does Longi Solar LR7-54HJD-495M use vs Longi Solar LR7-72HVD-665M?
Longi Solar LR7-54HJD-495M uses Back Contact cells; Longi Solar LR7-72HVD-665M uses N-type. Modern n-type technologies (TOPCon, HJT, BC) typically deliver higher efficiency and lower degradation compared to older PERC (p-type) cells.
What is the warranty on Longi Solar LR7-54HJD-495M and Longi Solar LR7-72HVD-665M?
Longi Solar LR7-54HJD-495M has a 30 years power warranty; Longi Solar LR7-72HVD-665M has a 30 years power warranty. The power warranty guarantees a minimum percentage of rated output at the end of the warranty period (typically 80-87%). Product (materials) warranties are usually shorter.
Are Longi Solar LR7-54HJD-495M and Longi Solar LR7-72HVD-665M bifacial panels?
Both Longi Solar LR7-54HJD-495M and Longi Solar LR7-72HVD-665M are bifacial - they capture reflected light from the ground, which can add 5-15% more annual energy on ground-mount or elevated rooftop installations with a light surface beneath.
Shop prices: See 177 Longi Solar offers
Every figure here is from the manufacturers' own datasheets - a dash means the value is not published, never an estimate. The thirty-year projection and the temperature scenarios are calculations from those figures, and each states its assumption above.
