ZNShine ZXM7-UH144-575
ZNShine Brand review

ZXM7-UH144-575

575 Wp TOPCon
ComparePV verdict

Light for its output, short guarantee

Rank 5,852 of 14,005
Compare panels Datasheet PDF
Power (Wp)
575
Typical for its class
Efficiency (%)
22.25
Typical · median 22.44%
Density (Wp/m²)
222.5
Typical · median 224.4
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
28.0
Strong · 3.2 kg below median
Warranty (yrs)
25
Weak · bottom 5%

The ZNShine ZXM7-UH144 (in variants UHLDD/UHLD) was designed for high yield in real-world operating conditions-beyond just the catalog. The use of N-type TOPCon cells minimizes losses associated with degradation and helps maintain stable energy production over the long term, which is crucial for investments seeking predictable returns. Modules utilize half-cut technology and multi-string SMBB/16BB connections, enabling them to better handle partial shading, lower internal resistances, and hot-spot risks.

In practice, this series addresses typical challenges encountered in Poland: variable weather, reduced insolation during winter, and power decreases at higher temperatures. The bifacial double glass construction allows for additional use of reflected light, which is particularly beneficial on ground installations, flat roofs, and carport structures.

This is an excellent choice for commercial and industrial installations as well as solar farms, where longevity, environmental resilience, and a lower energy cost-of-ownership throughout the entire lifecycle are key factors.

Ranking

1,018 panels in the segment TOPCon 550-600 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.25% 22.44% Typical 5,689
Power density 222.5 224.4 Typical 5,668
Temperature coefficient -0.300 -0.290 Typical 6,093
Weight per kWp 48.7 53.8 Strong · top 22% 2,422
Performance warranty 25 yrs 30 yrs Weak · bottom 5% 9,798
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 1 caution
Best for

Commercial, utility-scale and shaded-installations.

Not ideal for

Owners who want a long output guarantee.

Strengths
48.7 kg per kWp

Top 22% of the TOPCon 550-600 W segment, against a median of 53.8.

Watch-outs
25 year performance warranty

Bottom 5% of the TOPCon 550-600 W segment, against a median of 30 yrs. Ranked 9,798th in the whole database.

Notes from the database
  • Efficiency of 22.2% matches the TOPCon 550-600W median
  • At 222.5 W/m² power density, roof space requirements are typical for TOPCon 550-600W panels
  • At -0.30%/°C, hot weather performance is typical for TOPCon 550-600W panels
  • At 28.0 kg, this panel is 3.2 kg lighter than TOPCon 550-600W median (31.2 kg) - easier handling during installation
  • In the top 41% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 575 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.25 % Typical Segment median 22.44%
Vmpp · Impp 42.60 V · 13.50 A Operating point at max power
Voc · Isc 51.20 V · 14.24 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2279×1134×35 mm · 2.58 m² of roof
Weight 28.0 kg Strong Strong · 3.2 kg below median
Cells 144 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 25 years Weak bottom 5% · median 30 yrs
End-of-warranty output 87.0 % Equals 486 W guaranteed
Degradation 1.00 → 0.50 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by ZNShine in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 575 Wp appear here. The rest cover the whole series.

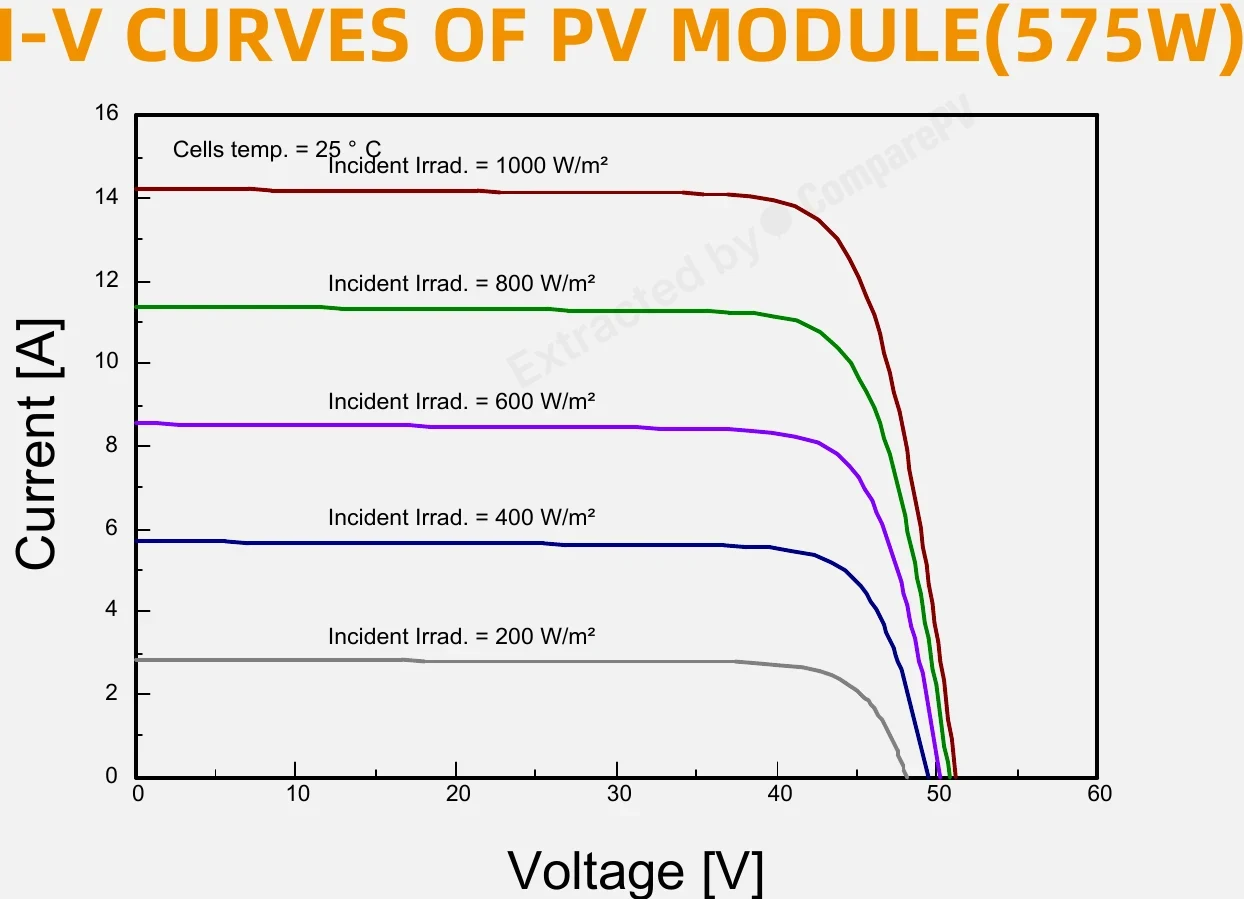

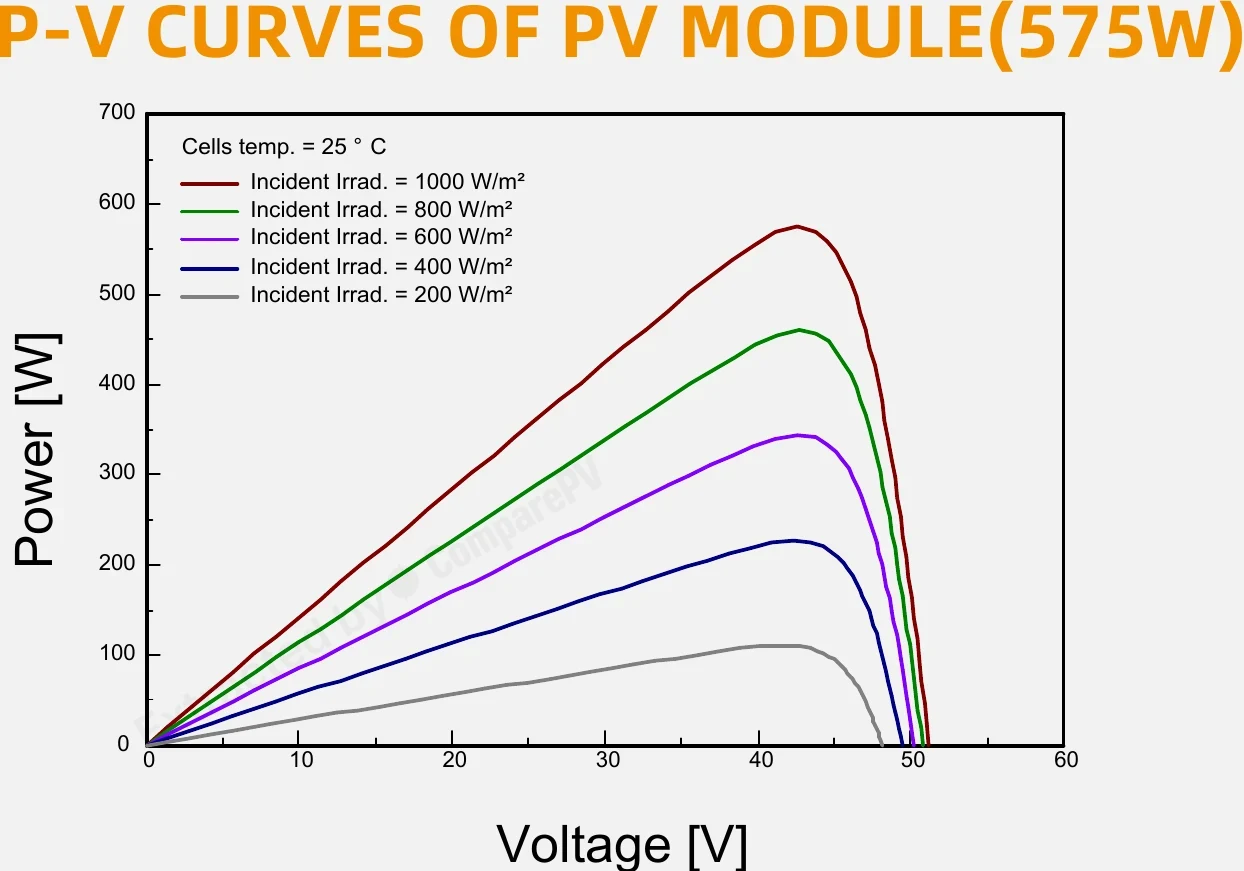

I-V Curves of PV Module (575W) I-V Curves of PV Module (575W) 575 W P-V Curves of PV Module (575W) P-V Curves of PV Module (575W) 575 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
ZNShine ZXM7-UH144-575 575 W 22.25% -0.300 28.0 kg You are here
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, +2.6 pp, +5 yr warranty
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, +2.4 pp, +5 yr warranty
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg Lighter, +2.1 pp, +5 yr warranty
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg Lighter, +2.1 pp, +5 yr warranty
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg Lighter, +2.1 pp, +5 yr warranty
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg Cooler, +2.0 pp, +5 yr warranty
AIKO-A625-MAH72Dw 625 W 24.20% -0.260 32.5 kg +50 W, +1.9 pp, +5 yr warranty
ZXM7-SHW144-520 520 W 20.29% -0.350 13.5 kg -55 W, lighter, -2.0 pp
ZXM7-SHW144-525 525 W 20.49% -0.350 13.5 kg -50 W, lighter, -1.8 pp
ZXM7-SHW144-530 530 W 20.68% -0.350 13.5 kg Hotter, lighter, -1.6 pp
ZXM7-SHLD144-530W 530 W 20.51% -0.350 31.5 kg Hotter, -1.7 pp, +5 yr warranty
ZXM7-SHW144-535 535 W 20.88% -0.350 13.5 kg Hotter, lighter, -1.4 pp
ZXM7-SHLD144-535W 535 W 20.70% -0.350 31.5 kg Hotter, -1.6 pp, +5 yr warranty
AIKO-A650-MAE72Mw 650 W 25.20% -0.260 27.0 kg +75 W, +2.9 pp, +5 yr warranty
AIKO-A645-MAE72Mw 645 W 25.00% -0.260 27.0 kg +70 W, +2.8 pp, +5 yr warranty
AIKO-A640-MAE72Mw 640 W 24.80% -0.260 27.0 kg +65 W, +2.6 pp, +5 yr warranty

Found 2326 panels of the same or similar size to this one, within ±10 mm. See them here Found 2368 panels of the same or similar size to this one, within ±25 mm. See them here Found 2382 panels of the same or similar size to this one, within ±50 mm. See them here Found 2542 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is the maximum power output of ZNShine ZXM7-UH144 panels?
The highest-power variants in the ZXM7-UH144 series reach up to 580 Wp. This high output results from N-type TOPCon cells, half-cut cell technology, and multi-busbar SMBB/16BB interconnections, which reduce current losses and improve module efficiency per unit area compared to older cell designs.
What warranty comes with ZNShine ZXM7-UH144 panels?
The manufacturer offers a 12-year product warranty and a 25-year power output warranty. This covers both material and workmanship defects, as well as the module's ability to maintain its rated power output over a quarter century, which is important when planning ROI for commercial-scale installations.
How do N-type TOPCon cells differ from standard PERC cells?
The N-type TOPCon cells used in the ZXM7-UH144 series show lower annual degradation and better performance at high temperatures compared to older P-type PERC cells. As a result, the panel retains higher power output for longer, with a slower decline in energy production over the years, translating into higher lifetime energy yield.
Are ZNShine ZXM7-UH144 panels suitable for solar farms and commercial installations?
Yes, this series is designed for commercial, industrial, and utility-scale PV farm installations, where durability and low lifetime energy cost matter most. High module power output (up to 580 Wp) reduces the number of panels needed to reach a target system capacity, lowering costs for mounting structures, cabling, and installation labor.
How well do ZXM7-UH144 panels handle partial shading?
Half-cut cell technology combined with multi-busbar SMBB/16BB interconnections limits the impact of partial shading on overall module performance. Splitting cells into halves reduces internal resistance and hot-spot risk, which matters for roofs with chimneys, dormers, or nearby structures casting shadows.
Is ZNShine a reliable and established solar panel manufacturer?
ZNShine is a China-based manufacturer holding Tier 1 status, meaning the company is recognized as financially stable with a proven track record of large-scale production and supply to major commercial and utility-scale PV projects worldwide. Tier 1 status also makes it easier to secure bank financing for larger installations.
