ZNShine Brand review

ZXM7-SHLDD108-430/N

430 Wp TOPCon Bifacial 70%
ComparePV verdict

Middle of its segment, weak in heat

Rank 10,082 of 14,005
Compare panels Datasheet PDF
Power (Wp)
430
Typical for its class
Efficiency (%)
22.02
Typical · median 22.00%
Density (Wp/m²)
220.2
Typical · median 220.2
Temp (%/°C)
-0.350
Weak · bottom 3%
Weight (kg)
24.5
Weak · 2.5 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The ZNShine ZXM7-SHLDD108 series delivers genuine energy gains in variable conditions, including on roofs not optimally oriented throughout the day. The key advantage is the bifacial glass-glass construction, enabling the panel to generate power not only from front-facing sunlight but also from reflected light off the ground. In practice, this means higher productivity on light-colored roofs, carports, ground-mounted structures, and any installation where every additional kilowatt-hour counts.

The series incorporates PERC technology and half-cut cells, helping minimize losses and improve module performance under partial shading. Furthermore, it features PID resistance, crucial for installations operating year-round under high voltage, along with a watertight connection box and reinforced structure, ensuring reliability in challenging outdoor conditions.

This is an excellent choice for residential and commercial installations prioritizing stable energy yield, longevity, and predictable performance in the Polish climate.

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.02% 22.00% Typical 6,329
Power density 220.2 220.2 Typical 6,481
Temperature coefficient -0.350 -0.290 Weak · bottom 3% 10,419
Weight per kWp 57.0 51.4 Weak · bottom 14% 10,964
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 2 caution
Best for

Residential, commercial and shaded-installations.

Not ideal for

Hot climates and weight-limited structures.

Watch-outs
-0.350 %/°C temperature coefficient

Bottom 3% of the TOPCon 400-450 W segment, against a median of -0.290. Ranked 10,419th in the whole database.

57.0 kg per kWp

Bottom 14% of the TOPCon 400-450 W segment, against a median of 51.4.

Notes from the database
  • Efficiency of 22.0% matches the TOPCon 400-450W median
  • Power density of 220.2 W/m² matches the TOPCon 400-450W median
  • -0.35%/°C temperature coefficient - 0.06pp worse than TOPCon 400-450W median (-0.29%/°C), expect higher hot weather losses
  • Weight of 24.5 kg is 2.5 kg above TOPCon 400-450W median (22.0 kg) - verify structural support
  • Bifacial design (70% factor) captures reflected light - adds 4-10% yield on ground-mount or white roof

Specifications

Open datasheet PDF
Nominal power (Pmax) 430 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.02 % Typical Segment median 22.00%
Vmpp · Impp 32.10 V · 13.40 A Operating point at max power
Voc · Isc 38.40 V · 14.13 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1722×1134×30 mm · 1.95 m² of roof
Weight 24.5 kg Weak Weak · 2.5 kg above median
Cells 108 · TOPCon Monocrystalline
Bifaciality 70 % Rear output as a share of front
Coefficient Pmax -0.350 %/°C Weak bottom 3% of its segment
Coefficient Voc · Isc -0.290 · 0.050 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 376 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by ZNShine in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 430 Wp appear here. The rest cover the whole series.

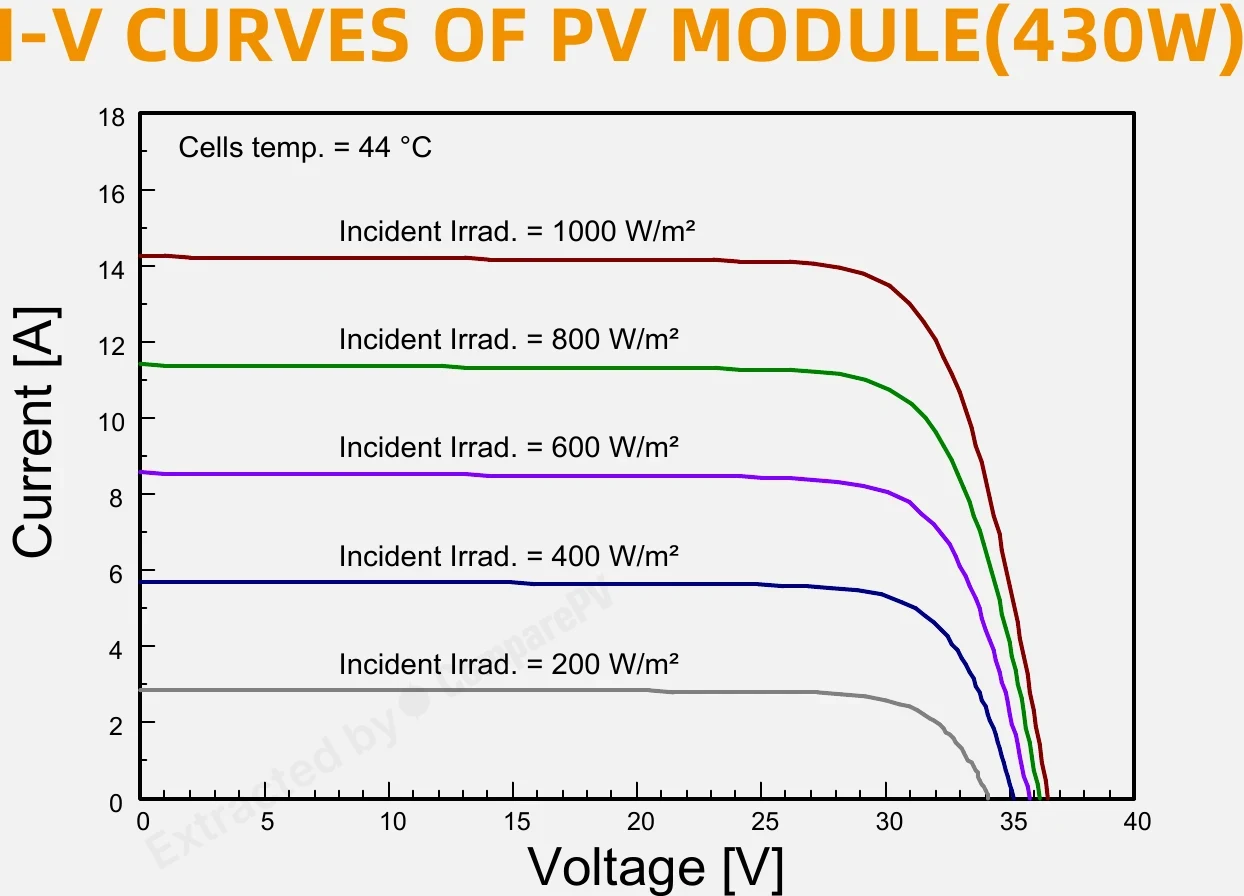

I-V Curves of PV Module(430W) I-V Curves of PV Module(430W) 430 W

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.350 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
ZNShine ZXM7-SHLDD108-430/N 430 W 22.02% -0.350 24.5 kg You are here
AIKO-A480-MAH54Mw 480 W 24.10% -0.260 21.5 kg +50 W, cooler, +2.1 pp
GK-5-54HG-480M 480 W 24.10% -0.260 21.0 kg +50 W, cooler, +2.1 pp
JKM480N-48QL6-DB-F2-EU 480 W 24.02% -0.260 24.4 kg +50 W, cooler, +2.0 pp
GKA96N-PRO-480W 480 W 24.02% -0.300 21.0 kg +50 W, cooler, +2.0 pp
ZXM7-SH108-395W 395 W 20.23% -0.350 20.5 kg Lighter, -1.8 pp, -5 yr warranty
ZXM7-SH108-400W 400 W 20.48% -0.350 20.5 kg Lighter, -1.5 pp, -5 yr warranty
ZXM7-SH108-405W 405 W 20.74% -0.350 20.5 kg Lighter, -1.3 pp, -5 yr warranty
ZXM7-SH108-410W 410 W 21.00% -0.350 20.5 kg Lighter, -1.0 pp, -5 yr warranty
ZXM7-SH108-415W 415 W 21.25% -0.350 20.5 kg Lighter, -0.8 pp, -5 yr warranty
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +80 W, cooler, +3.0 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +65 W, cooler, +2.8 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +75 W, cooler, +2.7 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +60 W, cooler, +2.5 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +70 W, cooler, +2.5 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +70 W, cooler, +2.5 pp

Found 1783 panels of the same or similar size to this one, within ±10 mm. See them here Found 1914 panels of the same or similar size to this one, within ±25 mm. See them here Found 3392 panels of the same or similar size to this one, within ±50 mm. See them here Found 3970 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
How does TOPCon cell technology in the ZNShine ZXM7-SHLDD108 series differ from older PERC cells?
TOPCon (N-type) cells used in this series offer higher efficiency and lower long-term degradation than classic PERC (P-type) cells. The additional passivation layer reduces current losses and performs better under high temperatures and low-irradiance conditions. In practice, this means higher energy yield from the same roof area and a slower power drop over the module's lifetime.
How much extra energy does bifaciality add to the ZXM7-SHLDD108 panels?
The glass-glass design allows the panel to capture light reflected from the ground, which on bright surfaces (white roofing, gravel, snow) can add up to 25 percent extra power gain from the rear side. The actual result depends on ground albedo and mounting height, so these modules perform best on carports, ground-mount structures, and flat roofs rather than a typical sloped roof flush with the surface.
What warranty applies to ZNShine ZXM7-SHLDD108 modules?
The manufacturer provides a 12-year product warranty and a 30-year linear power warranty, guaranteeing 87.4 percent of initial power output after 30 years of operation. This is a standard typical of premium N-type panels, letting you plan the installation as a long-term investment without worrying about rapid performance decline.
Are ZXM7-SHLDD108 panels suitable for a single-family home roof, or only for commercial installations?
With a max power of up to 440 Wp and dimensions of 1722x1134 mm, these panels work well for both residential and commercial installations. The glass-glass construction is heavier than a standard backsheet panel (about 24.5 kg), so roof load capacity should be checked, especially on older roofing. On light-colored roofs and free-standing structures, bifaciality delivers a noticeably higher return.
Is ZNShine a Tier 1 manufacturer, and can you trust such a long warranty?
Yes, ZNShine PV-Tech is a Chinese manufacturer with a long production history, classified as Tier 1, which indicates financial stability and reliability in honoring warranty commitments. Additionally, an IP68-rated junction box and reinforced frame improve resistance to moisture and harsh weather, supporting the 30-year power warranty.
Do ZXM7-SHLDD108 panels perform well in winter and low temperatures?
Yes, TOPCon cells have a favorable temperature coefficient and a good response to weak, diffuse light, which translates into better energy production on cloudy winter days and during early morning or late afternoon hours. The bifacial design also captures light reflected off snow, which has very high albedo, potentially noticeably increasing rear-side yield in winter conditions.
