Trina Solar TSM-445NEG9RC.27
Trina Solar Brand review

TSM-445NEG9RC.27

445 Wp TOPCon Bifacial 80%
ComparePV verdict

Light for its output, no clear weak spot

Rank 6,562 of 14,129
Compare panels Datasheet PDF
Power (Wp)
445
Strong · top 8%
Efficiency (%)
22.30
Strong · top 17%
Density (Wp/m²)
222.7
Typical · median 220.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
21.0
Strong · 1.0 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The Trina Solar Vertex S+ series are modules designed for rooftops, where yield, durability, and aesthetics are key factors. The key differentiator is the combination of n-type i-TOPCon cell technology with the dual-glass construction, which uses a second glass sheet instead of a traditional backsheet. This provides better protection against moisture and material aging, performing exceptionally well in more demanding environmental conditions. In practice, this means more stable performance over time and lower risk of degradation compared to older solutions.

The Vertex S+ addresses a common challenge for investors: achieving high yield from limited rooftop space without compromising on appearance. Available variants (including the version with enhanced black finish) offer modern, cohesive aesthetics for premium homes, while simultaneously maintaining installer-friendly parameters - compatibility with popular inverters and optimizers, along with a format that simplifies installation. This is an excellent choice for residential and small commercial installations where long-term quality and predictable energy yield are essential.

Ranking

1,220 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.30% 22.00% Strong · top 17% 5,161
Power density 222.7 220.2 Typical 5,365
Temperature coefficient -0.290 -0.290 Typical 2,220
Weight per kWp 47.2 51.5 Strong · top 12% 1,537
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Price offers

3 from shops we track
Shop Country Price Per kWp Stock Offer updated
solar-haus.de Germany 85 € incl. VAT 191.01 €/kWp In stock 21h ago Visit shop
store.solarcellzusa.com United States 210.34 $ net 472.67 $/kWp In stock 17h ago Visit shop
Nowa Elektro Poland 360.16 zł incl. VAT - In stock 20h ago Visit shop

Signals from the data

2 positive · 0 caution
Best for

Residential, commercial, shaded-installations and hot-climate.

Strengths
47.2 kg per kWp

Top 12% of the TOPCon 400-450 W segment, against a median of 51.5.

22.30% module efficiency

Top 17% of the TOPCon 400-450 W segment, against a median of 22.00%.

Notes from the database
  • At 22.3% efficiency, this panel is on par with typical TOPCon 400-450W modules
  • Power density of 222.7 W/m² matches the TOPCon 400-450W median
  • Temperature coefficient of -0.29%/°C matches the TOPCon 400-450W median
  • At 21.0 kg, weight matches the TOPCon 400-450W median
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface

Specifications

Open datasheet PDF
Nominal power (Pmax) 445 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.30 % Strong Segment median 22.00%
Vmpp · Impp 44.30 V · 10.05 A Operating point at max power
Voc · Isc 52.60 V · 10.71 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 21.0 kg Strong Strong · 1.0 kg below median
Cells 144 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.240 · 0.040 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 389 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Trina Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 445 Wp appear here. The rest cover the whole series.

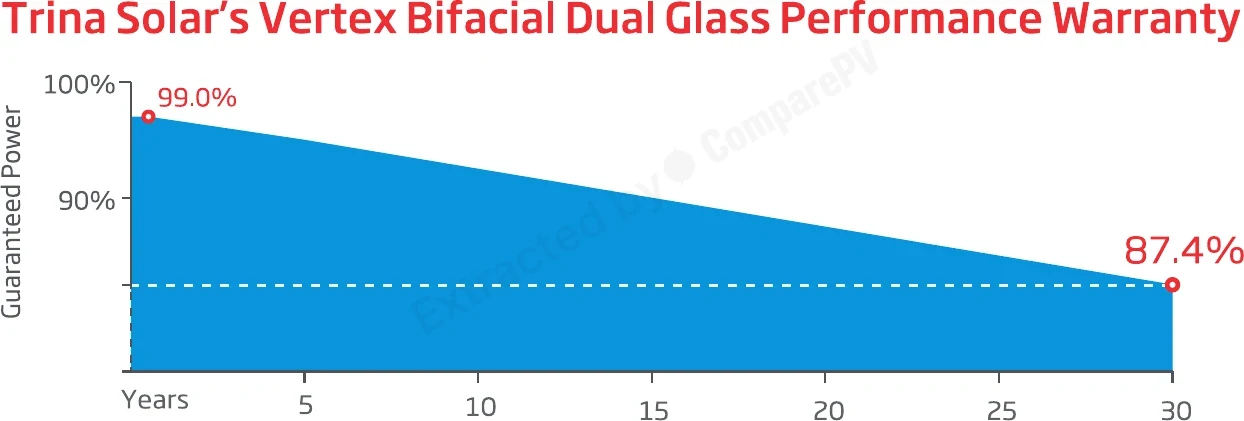

Trina Solar's Vertex Bifacial Dual Glass Performance Warranty Trina Solar's Vertex Bifacial Dual Glass Performance Warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Trina Solar TSM-445NEG9RC.27 445 W 22.30% -0.290 21.0 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +50 W, cooler, +2.5 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +45 W, cooler, +2.2 pp
STP-NT11/48QGSF-490 490 W 24.50% -0.260 21.5 kg +45 W, cooler, +2.2 pp
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg +40 W, cooler, +2.0 pp
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg +40 W, cooler, +2.0 pp
LR7-54HJD-495M 495 W 24.30% -0.240 23.5 kg +50 W, cooler, +2.0 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg +40 W, cooler, +2.0 pp
TSM-DE09R.05-405 405 W 20.30% -0.340 21.8 kg Hotter, -2.0 pp, -5 yr warranty
TSM-DE09R.05-410 410 W 20.50% -0.340 21.8 kg Hotter, -1.8 pp, -5 yr warranty
TSM-DE09R-415 415 W 20.80% -0.340 21.8 kg Hotter, -1.5 pp, -5 yr warranty
TSM-DE09R.08-420 420 W 21.00% -0.340 21.8 kg Hotter, -1.3 pp, -5 yr warranty
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +65 W, cooler, +2.7 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +60 W, cooler, +2.4 pp
WST-505BKX54-A2 505 W 24.70% -0.260 25.0 kg +60 W, heavier, +2.4 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +55 W, cooler, +2.2 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +55 W, cooler, +2.2 pp

Found 1402 panels of the same or similar size to this one, within ±10 mm. See them here Found 1432 panels of the same or similar size to this one, within ±25 mm. See them here Found 3651 panels of the same or similar size to this one, within ±50 mm. See them here Found 3999 panels of the same or similar size to this one, within ±100 mm. See them here

About the Vertex S+ series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What is n-type i-TOPCon cell technology in Trina Solar Vertex S+ panels and how does it differ from standard p-type cells?
i-TOPCon is an n-type cell technology that reduces light-induced degradation (LID) and temperature-related losses compared to more common p-type cells. In practice this means higher initial efficiency, a slower power decline over time, and better performance on hot rooftops in summer. For homeowners, this translates into higher real-world energy yield across the panel's 30-year service life.
How many Trina Solar Vertex S+ 510 Wp panels are needed for a 6 kW residential system?
With a unit power of 510 Wp, a roughly 6 kW system requires about 11-12 panels, covering approximately 22-24 m² of roof space. That's a real space saving compared to older, less efficient modules, where the same output often required several extra panels. The exact number depends on roof pitch, orientation, and local solar irradiance.
What warranty comes with Trina Solar Vertex S+ panels and what does it cover?
The manufacturer provides a 25-year product warranty covering material and workmanship defects, plus a 30-year linear power output warranty. This means that even after 30 years, the module should still deliver a guaranteed, high percentage of its original power. As a Tier 1 manufacturer with a long track record, Trina Solar adds extra confidence that these warranty claims will actually be honored.
How does the dual-glass construction in Vertex S+ differ from a standard backsheet panel, and is it worth the cost?
Instead of a polymer backsheet, the panel uses a second glass layer on the back side, offering better protection against moisture, microcracks, and material aging, especially in harsher climates. Purchase cost is only slightly higher than a backsheet version, but it translates into greater durability and lower failure risk over decades of operation, supporting the 30-year power warranty.
Are Trina Solar Vertex S+ panels bifacial, generating extra energy from the rear side?
No, this Vertex S+ configuration is a monofacial module despite its dual-glass construction. The second glass layer serves a protective function rather than capturing reflected light for extra generation. This is a deliberate design choice by the manufacturer, balancing aesthetics and universal compatibility with sloped roof installations, where bifacial gains would be minimal anyway.
Is Trina Solar a reliable, trustworthy manufacturer for residential solar panels?
Yes, Trina Solar is a China-based manufacturer classified as Tier 1, meaning it has a solid financial standing, in-house production lines, and a long track record of module deliveries worldwide. This status matters practically when filing warranty claims years later - Tier 1 status lowers the risk that the manufacturer disappears from the market and leaves the warranty unenforceable.
