Techwise Solar TW-545HTS-06
Techwise Solar Brand review

TW-545HTS-06

545 Wp TOPCon
ComparePV verdict

Light for its output, short guarantee

Rank 5,996 of 14,005
Compare panels Datasheet PDF
Power (Wp)
545
Strong · top 2%
Efficiency (%)
22.95
Typical · median 22.73%
Density (Wp/m²)
229.5
Typical · median 227.4
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
25.2
Strong · 1.8 kg below median
Warranty (yrs)
25
Weak · bottom 3%

The Techwise Solar Sun-Pursuit Pro Series is designed for installations where high energy yield is crucial, even under challenging operating conditions. These modules utilize the TOPCon technology, available in both standard and bifacial versions. This allows them to better utilize reflected light from the ground, resulting in real benefits for solar farms, carports, and large industrial rooftops. The use of a half-cut design helps minimize losses and improves the module's performance under partial shading. Additionally, the denser multi-busbar (16BB) connection system ensures stable operation and resistance to micro-cracks during operation. In practice, this series solves a common problem for projects with limited space - it allows for maximizing energy production from the same area. For investors focused on aesthetics, FULL BLACK versions are also available, particularly desirable for residential and premium rooftop installations.

Ranking

432 panels in the segment TOPCon 500-550 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.95% 22.73% Typical 2,268
Power density 229.5 227.4 Typical 2,308
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 46.2 52.4 Strong · top 14% 1,091
Performance warranty 25 yrs 30 yrs Weak · bottom 3% 9,798
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 1 caution
Best for

Commercial, utility-scale and shaded-installations.

Not ideal for

Owners who want a long output guarantee.

Strengths
46.2 kg per kWp

Top 14% of the TOPCon 500-550 W segment, against a median of 52.4.

Watch-outs
25 year performance warranty

Bottom 3% of the TOPCon 500-550 W segment, against a median of 30 yrs. Ranked 9,798th in the whole database.

Notes from the database
  • Efficiency of 22.9% matches the TOPCon 500-550W median
  • At 229.5 W/m² power density, roof space requirements are typical for TOPCon 500-550W panels
  • At -0.29%/°C, hot weather performance is typical for TOPCon 500-550W panels
  • Weight of 25.2 kg (1.8 kg below TOPCon 500-550W median of 27.0 kg) allows easier transport and roof mounting
  • #2268 for efficiency, #2165 for temperature performance out of 14005 panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 545 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.95 % Typical Segment median 22.73%
Vmpp · Impp 40.95 V · 13.31 A Operating point at max power
Voc · Isc 49.30 V · 13.93 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2094×1134×30 mm · 2.37 m² of roof
Weight 25.2 kg Strong Strong · 1.8 kg below median
Cells 132 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.240 · 0.046 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 12 years Hardware defects only
Performance warranty 25 years Weak bottom 3% · median 30 yrs
End-of-warranty output 89.4 % Equals 476 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Techwise Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 545 Wp appear here. The rest cover the whole series.

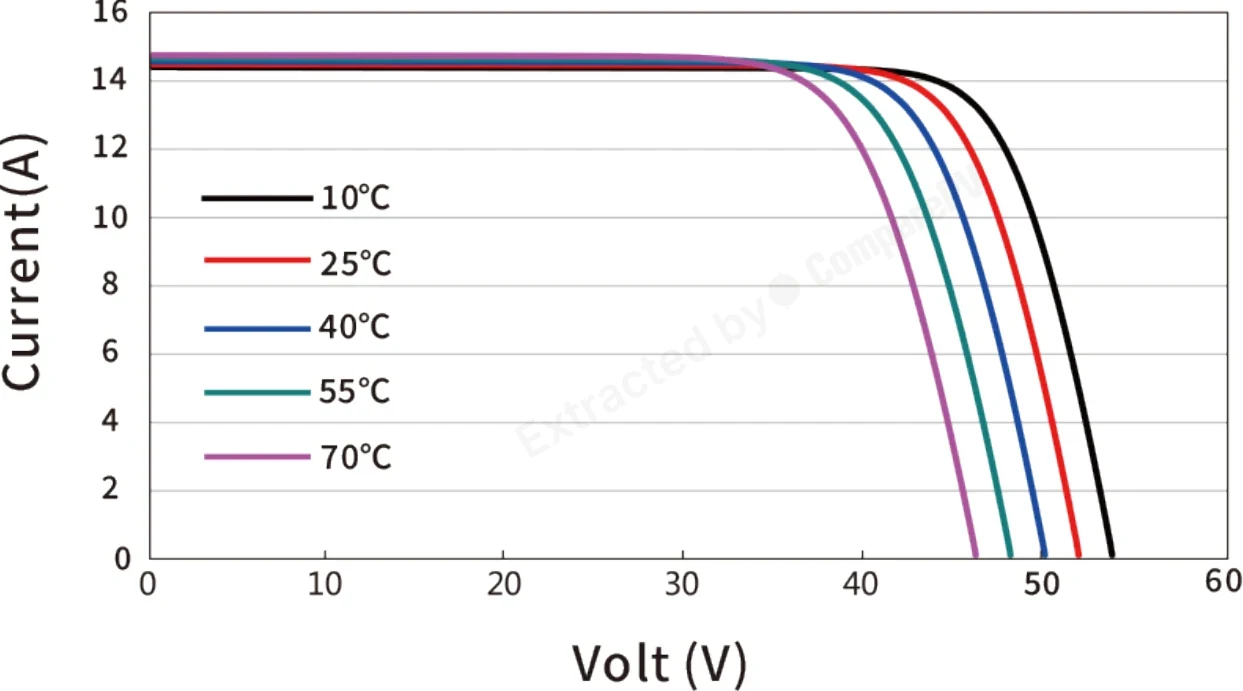

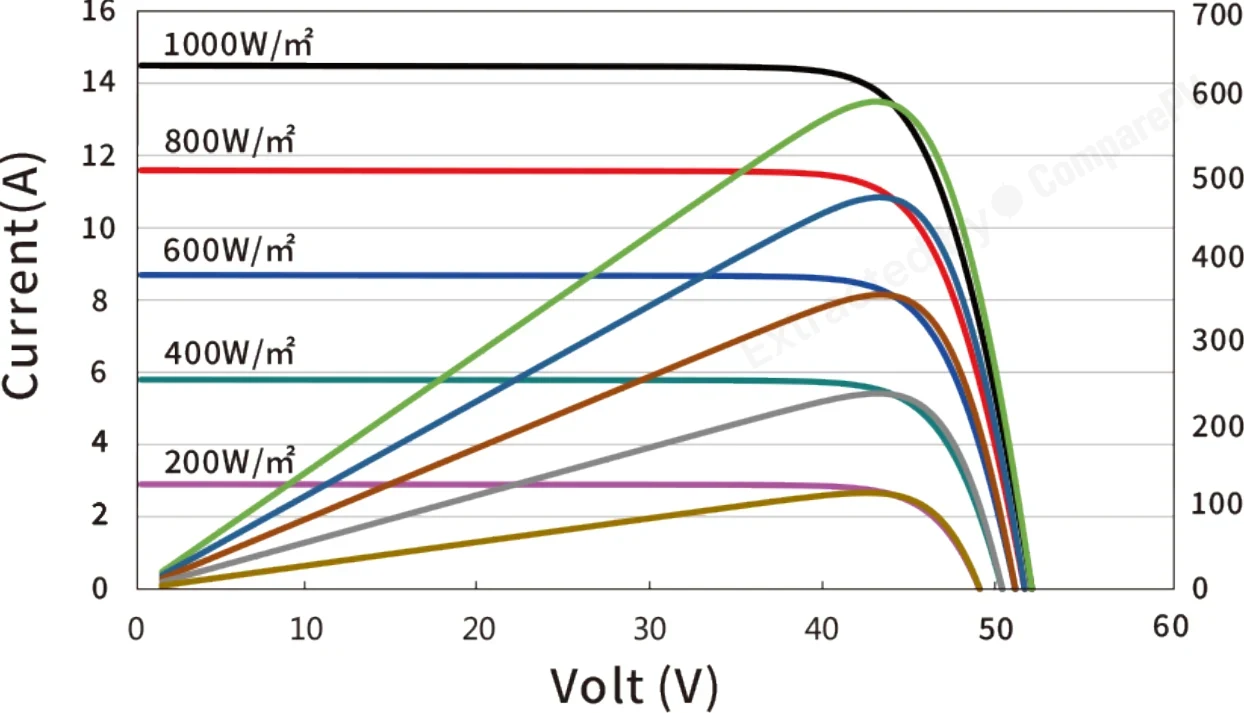

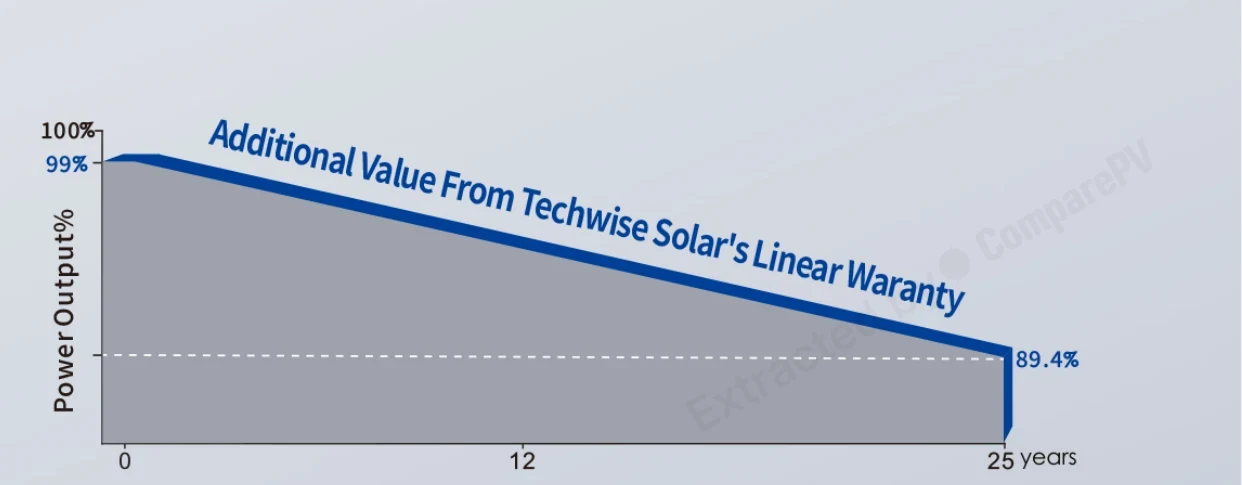

I-V Curve at Different Irradiance Levels I-V Curve at Different Irradiance Levels Whole series I-V Curve at Different Temperatures I-V Curve at Different Temperatures Whole series Additional Value From Techwise Solar's Linear Waranty Additional Value From Techwise Solar's Linear Waranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Techwise Solar TW-545HTS-06 545 W 22.95% -0.290 25.2 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, +2.1 pp, +5 yr warranty
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg -50 W, +1.9 pp, +5 yr warranty
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, +1.9 pp, +5 yr warranty
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, +1.8 pp, +5 yr warranty
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, +1.7 pp, +5 yr warranty
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, +1.6 pp, +5 yr warranty
TW-485HT 485 W 20.42% -0.350 26.0 kg -60 W, hotter, -2.5 pp
TW-490HT 490 W 20.64% -0.350 26.0 kg -55 W, hotter, -2.3 pp
TW-495HT 495 W 20.85% -0.350 26.0 kg -50 W, hotter, -2.1 pp
TW-500HT 500 W 21.06% -0.350 26.0 kg -45 W, hotter, -1.9 pp
TW-505HT 505 W 21.27% -0.350 26.0 kg -40 W, hotter, -1.7 pp
TW-530HT-06 530 W 22.32% -0.300 29.2 kg Heavier, -0.6 pp, +5 yr warranty
TW-535HT-06 535 W 22.53% -0.300 29.2 kg Heavier, -0.4 pp, +5 yr warranty
TW-540HT-06 540 W 22.74% -0.300 29.2 kg Heavier, -0.2 pp, +5 yr warranty
GKA120N-PRO-590W 590 W 23.82% -0.300 26.7 kg +45 W, +0.9 pp, +5 yr warranty
GKA120N-PRO-585W 585 W 23.62% -0.300 26.7 kg +40 W, +0.7 pp, +5 yr warranty

Found 397 panels of the same or similar size to this one, within ±10 mm. See them here Found 408 panels of the same or similar size to this one, within ±25 mm. See them here Found 425 panels of the same or similar size to this one, within ±50 mm. See them here Found 953 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Are Techwise Solar Sun-Pursuit Pro Series panels suitable for a pitched roof?
Yes, the Sun-Pursuit Pro Series works well on pitched roofs, especially in the FULL BLACK variant, which is a popular aesthetic choice for residential and premium installations. The half-cut cell design reduces energy losses under partial shading, such as from chimneys or dormers, a common challenge in single-family homes.
What is the maximum power output of a Sun-Pursuit Pro Series module?
Sun-Pursuit Pro Series modules reach up to 620 Wp of maximum power. Thanks to TOPCon cell technology and a dense multi-busbar (16BB) grid, these panels deliver high energy yield from a limited roof or land area, which matters for projects with space constraints.
What warranty comes with Techwise Solar Sun-Pursuit Pro Series panels?
The manufacturer provides a 15-year product warranty and a 30-year power output warranty. This gives long-term protection for the investment, covering both build quality and guaranteed energy performance of the module throughout its service life.
What is TOPCon technology and is it worth choosing panels built with it?
TOPCon (Tunnel Oxide Passivated Contact) is a modern cell technology that delivers higher efficiency and better performance compared to older solutions like PERC. In the Sun-Pursuit Pro Series, this translates into higher energy yield, especially under challenging conditions such as elevated temperatures or lower irradiance, making it a solid choice for installations focused on maximizing production.
Is a bifacial version of the Sun-Pursuit Pro Series available?
Yes, the series is offered in both a standard and a bifacial variant, which additionally captures light reflected from the ground surface. The bifacial version is particularly effective in PV farms, carports, and large industrial rooftops, where installation conditions allow the rear side of the module to contribute to output.
How do the half-cut and multi-busbar design in the Sun-Pursuit Pro Series differ from standard panels?
The half-cut design splits cells in half, reducing current losses and improving module behavior under partial shading. The denser multi-busbar (16BB) grid increases the number of current-carrying pathways, improving operational stability and resistance to microcracks over years of use, which supports longer system lifespan.
