Techwise Solar TW-530HT-06
Techwise Solar Brand review

TW-530HT-06

530 Wp TOPCon Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 5,768 of 14,005
Compare panels Datasheet PDF
Power (Wp)
530
Strong · top 15%
Efficiency (%)
22.32
Weak · bottom 22%
Density (Wp/m²)
223.2
Weak · bottom 21%
Temp (%/°C)
-0.300
Weak · bottom 20%
Weight (kg)
29.2
Weak · 2.2 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The Techwise Solar Sun-Pursuit Pro Series is designed for installations where high energy yield is crucial, even under challenging operating conditions. These modules utilize the TOPCon technology, available in both standard and bifacial versions. This allows them to better utilize reflected light from the ground, resulting in real benefits for solar farms, carports, and large industrial rooftops. The use of a half-cut design helps minimize losses and improves the module's performance under partial shading. Additionally, the denser multi-busbar (16BB) connection system ensures stable operation and resistance to micro-cracks during operation. In practice, this series solves a common problem for projects with limited space - it allows for maximizing energy production from the same area. For investors focused on aesthetics, FULL BLACK versions are also available, particularly desirable for residential and premium rooftop installations.

Ranking

432 panels in the segment TOPCon 500-550 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.32% 22.73% Weak · bottom 22% 5,067
Power density 223.2 227.4 Weak · bottom 21% 5,050
Temperature coefficient -0.300 -0.290 Weak · bottom 20% 6,093
Weight per kWp 55.1 52.4 Weak · bottom 12% 9,523
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 3 caution
Best for

Commercial, utility-scale and shaded-installations.

Not ideal for

Weight-limited structures, hot climates and roofs where every square metre has to count.

Watch-outs
55.1 kg per kWp

Bottom 12% of the TOPCon 500-550 W segment, against a median of 52.4.

-0.300 %/°C temperature coefficient

Bottom 20% of the TOPCon 500-550 W segment, against a median of -0.290.

223.2 watts per square metre

Bottom 21% of the TOPCon 500-550 W segment, against a median of 227.4.

Notes from the database
  • Efficiency of 22.3% matches the TOPCon 500-550W median
  • 223.2 W/m² power density is 4.2 W/m² below TOPCon 500-550W median (227.4 W/m²) - requires larger installation area
  • At -0.30%/°C, hot weather performance is typical for TOPCon 500-550W panels
  • At 29.2 kg, this panel is 2.2 kg heavier than the TOPCon 500-550W median (27.0 kg) - more demanding for installation crews
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces

Specifications

Open datasheet PDF
Nominal power (Pmax) 530 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.32 % Weak Segment median 22.73%
Vmpp · Impp 40.37 V · 13.13 A Operating point at max power
Voc · Isc 48.06 V · 13.96 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 2094×1134×30 mm · 2.37 m² of roof
Weight 29.2 kg Weak Weak · 2.2 kg above median
Cells 132 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Weak bottom 20% of its segment
Coefficient Voc · Isc -0.250 · 0.040 %/°C
NOCT 44 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 463 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Techwise Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 530 Wp appear here. The rest cover the whole series.

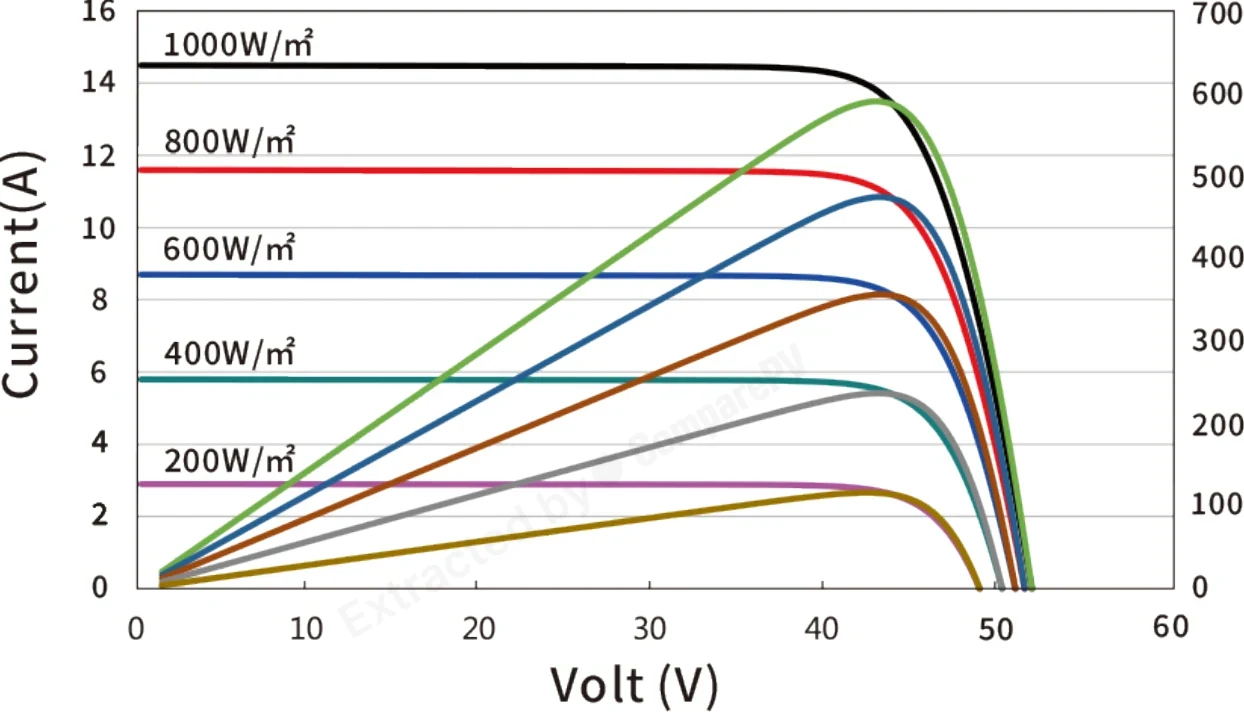

I-V Curve at Different Irradiance Levels (200–1000 W/m²) I-V Curve at Different Irradiance Levels (200–1000 W/m²) Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
Techwise Solar TW-530HT-06 530 W 22.32% -0.300 29.2 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, lighter, +2.7 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +2.5 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg Cooler, lighter, +2.5 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, lighter, +2.4 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg Cooler, lighter, +2.3 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg -40 W, lighter, +2.2 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, lighter, +2.2 pp
TW-485HT 485 W 20.42% -0.350 26.0 kg Hotter, -1.9 pp, -5 yr warranty
TW-490HT 490 W 20.64% -0.350 26.0 kg Hotter, -1.7 pp, -5 yr warranty
TW-495HT 495 W 20.85% -0.350 26.0 kg Hotter, -1.5 pp, -5 yr warranty
TW-500HT 500 W 21.06% -0.350 26.0 kg Hotter, -1.3 pp, -5 yr warranty
TW-505HT 505 W 21.27% -0.350 26.0 kg Hotter, -1.1 pp, -5 yr warranty
TW-535HT-06 535 W 22.53% -0.300 29.2 kg +0.2 pp
TW-540HT-06 540 W 22.74% -0.300 29.2 kg +10 W, +0.4 pp
GKA120N-PRO-590W 590 W 23.82% -0.300 26.7 kg +60 W, lighter, +1.5 pp
GKA120N-PRO-585W 585 W 23.62% -0.300 26.7 kg +55 W, lighter, +1.3 pp

Found 397 panels of the same or similar size to this one, within ±10 mm. See them here Found 408 panels of the same or similar size to this one, within ±25 mm. See them here Found 425 panels of the same or similar size to this one, within ±50 mm. See them here Found 953 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
Are Techwise Solar Sun-Pursuit Pro Series panels suitable for a pitched roof?
Yes, the Sun-Pursuit Pro Series works well on pitched roofs, especially in the FULL BLACK variant, which is a popular aesthetic choice for residential and premium installations. The half-cut cell design reduces energy losses under partial shading, such as from chimneys or dormers, a common challenge in single-family homes.
What is the maximum power output of a Sun-Pursuit Pro Series module?
Sun-Pursuit Pro Series modules reach up to 620 Wp of maximum power. Thanks to TOPCon cell technology and a dense multi-busbar (16BB) grid, these panels deliver high energy yield from a limited roof or land area, which matters for projects with space constraints.
What warranty comes with Techwise Solar Sun-Pursuit Pro Series panels?
The manufacturer provides a 15-year product warranty and a 30-year power output warranty. This gives long-term protection for the investment, covering both build quality and guaranteed energy performance of the module throughout its service life.
What is TOPCon technology and is it worth choosing panels built with it?
TOPCon (Tunnel Oxide Passivated Contact) is a modern cell technology that delivers higher efficiency and better performance compared to older solutions like PERC. In the Sun-Pursuit Pro Series, this translates into higher energy yield, especially under challenging conditions such as elevated temperatures or lower irradiance, making it a solid choice for installations focused on maximizing production.
Is a bifacial version of the Sun-Pursuit Pro Series available?
Yes, the series is offered in both a standard and a bifacial variant, which additionally captures light reflected from the ground surface. The bifacial version is particularly effective in PV farms, carports, and large industrial rooftops, where installation conditions allow the rear side of the module to contribute to output.
How do the half-cut and multi-busbar design in the Sun-Pursuit Pro Series differ from standard panels?
The half-cut design splits cells in half, reducing current losses and improving module behavior under partial shading. The denser multi-busbar (16BB) grid increases the number of current-carrying pathways, improving operational stability and resistance to microcracks over years of use, which supports longer system lifespan.
