SunEvo Solar Brand review

SE6R-48HBD-455W

455 Wp TOPCon Bifacial 80%
ComparePV verdict

Middle of its segment, heavy for its output

Rank 6,074 of 14,129
Compare panels Datasheet PDF
Power (Wp)
455
Typical for its class
Efficiency (%)
22.52
Typical · median 22.52%
Density (Wp/m²)
227.7
Typical · median 225.2
Temp (%/°C)
-0.300
Weak · bottom 20%
Weight (kg)
25.0
Weak · 1.0 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The SunEvo Solar EVO 6R series is designed around N-type cells in HJT or TOPCon technologies, as well as a rectangular wafer format, which facilitates achieving high power density without artificially "over-sizing" the module. This solution will be particularly appreciated by investors who prioritize maximizing energy yield from a limited roof or ground area, as well as stable operation in varying conditions.

A key advantage of the EVO 6R is its bifacial design with double glass, which improves resistance to microcracks and degradation over time, and, under favorable conditions, allows for better utilization of reflected light. The use of half-cut cells helps to minimize losses and increases tolerance to partial shading, which is important on roofs with skylights, chimneys, or carport installations.

In practice, the EVO 6R is a good choice for companies, PV farms, and demanding prosumers who expect low degradation and a long linear warranty, while also wanting to realistically reduce BOS (Balance of System) costs thanks to the optimized module format.

Ranking

1,096 panels in the segment TOPCon 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.52% 22.52% Typical 4,167
Power density 227.7 225.2 Typical 2,943
Temperature coefficient -0.300 -0.290 Weak · bottom 20% 6,152
Weight per kWp 54.9 52.2 Weak · bottom 16% 9,410
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 2 caution
Best for

Residential, commercial and shaded-installations.

Not ideal for

Weight-limited structures and hot climates.

Watch-outs
54.9 kg per kWp

Bottom 16% of the TOPCon 450-500 W segment, against a median of 52.2.

-0.300 %/°C temperature coefficient

Bottom 20% of the TOPCon 450-500 W segment, against a median of -0.290.

Notes from the database
  • At 22.5% efficiency, this panel is on par with typical TOPCon 450-500W modules
  • At 227.7 W/m² power density, roof space requirements are typical for TOPCon 450-500W panels
  • At -0.30%/°C, hot weather performance is typical for TOPCon 450-500W panels
  • At 25.0 kg, weight matches the TOPCon 450-500W median
  • Bifaciality factor of 80% can add 4-12% extra yield with reflective mounting surface

Specifications

Open datasheet PDF
Nominal power (Pmax) 455 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.52 % Typical Segment median 22.52%
Vmpp · Impp 29.98 V · 15.18 A Operating point at max power
Voc · Isc 36.13 V · 16.02 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 25.0 kg Weak Weak · 1.0 kg above median
Cells 96 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Weak bottom 20% of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 41 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 398 W guaranteed

Datasheet charts

Open datasheet PDF

Measured curves published by SunEvo Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 455 Wp appear here. The rest cover the whole series.

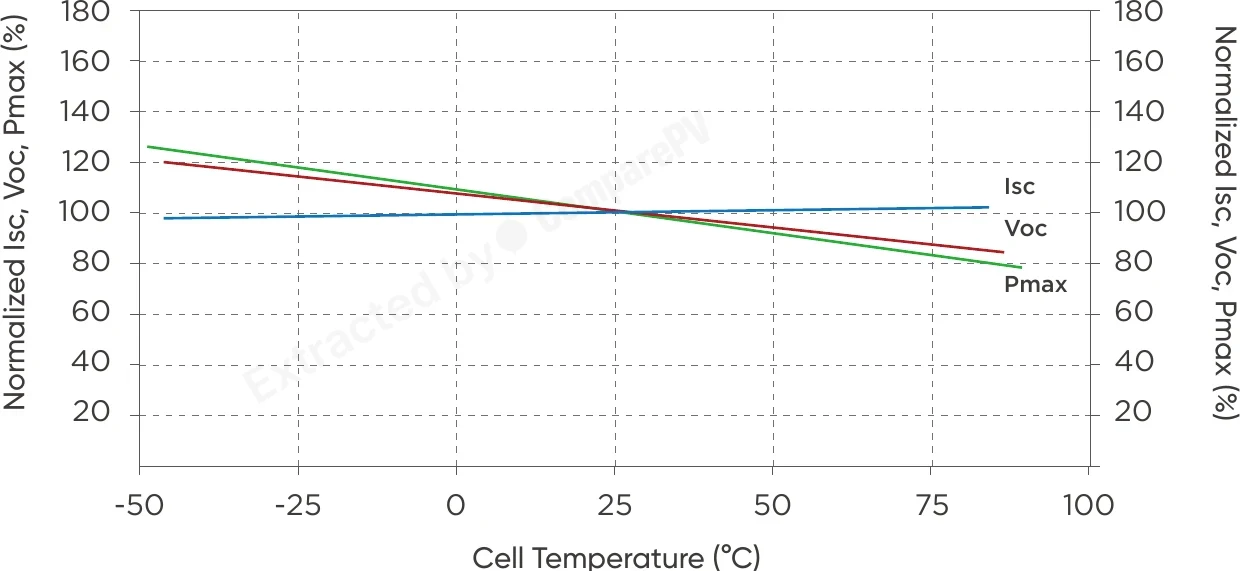

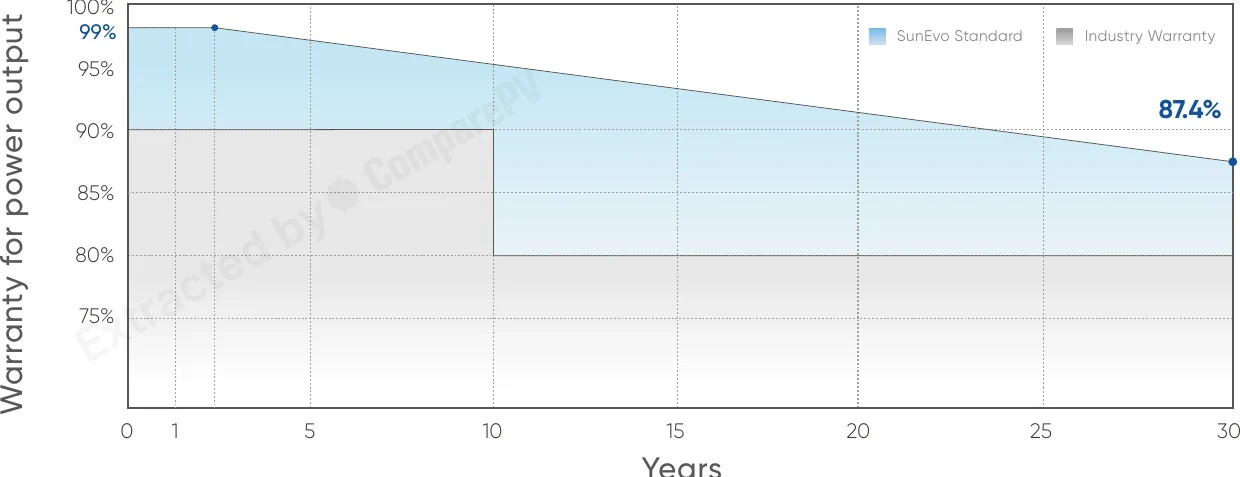

Warranty for Power Output vs Years (SunEvo Standard vs Industry Warranty) Warranty for Power Output vs Years (SunEvo Standard vs Industry Warranty) Whole series Normalized Isc, Voc, Pmax vs Cell Temperature Normalized Isc, Voc, Pmax vs Cell Temperature Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
SunEvo Solar SE6R-48HBD-455W 455 W 22.52% -0.300 25.0 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +40 W, lighter, +2.3 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +50 W, cooler, +2.2 pp
WST-505BKX54-A2 505 W 24.70% -0.260 25.0 kg +50 W, cooler, +2.2 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, lighter, +2.0 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +45 W, cooler, +2.0 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +45 W, cooler, +2.0 pp
SE6R-48HBD-435W 435 W 21.77% -0.300 25.0 kg -20 W, -0.8 pp
SE6R-48HBD-440W 440 W 22.02% -0.300 25.0 kg -15 W, -0.5 pp
SE6R-48HBD-445W 445 W 22.27% -0.300 25.0 kg -10 W, -0.2 pp
SE6R-48HBD-450W 450 W 22.52% -0.300 25.0 kg Very close match
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +55 W, cooler, +2.5 pp

Found 1402 panels of the same or similar size to this one, within ±10 mm. See them here Found 1432 panels of the same or similar size to this one, within ±25 mm. See them here Found 3651 panels of the same or similar size to this one, within ±50 mm. See them here Found 3999 panels of the same or similar size to this one, within ±100 mm. See them here

About the EVO 6R series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What warranty does the SunEvo Solar EVO 6R series come with?
The SunEvo Solar EVO 6R series includes a 25-year product warranty and a 30-year linear power output warranty. This means the module is guaranteed to retain a manufacturer-specified minimum percentage of its initial rated power after 30 years of operation. The 30-year power warranty is among the longest currently available on the market, ensuring predictable energy yield over the full system lifetime and reducing long-term investment risk.
Do EVO 6R TOPCon panels outperform PERC modules on hot days?
Yes. N-type TOPCon cells have a lower temperature coefficient than older PERC cells, which means they lose proportionally less power as module temperature rises. In practice, this translates to higher real-world output during summer months when cell temperature routinely exceeds 50-60°C. For typical Central European conditions, the annual generation advantage of TOPCon over PERC is usually in the range of a few percentage points.
What does bifacial double-glass construction mean in the EVO 6R, and is it a real-world advantage?
Bifacial construction means the module generates power from both the front and rear glass surface by capturing light reflected from the ground. Double glass replaces the traditional backsheet film, improving resistance to microcracks, moisture ingress, and PID degradation. On reflective surfaces such as concrete, light-colored roofing membrane, or gravel, actual energy yield can exceed the rated 455 Wp front-side output by several to over ten percent.
Is the EVO 6R suitable for a roof with a dormer or chimney causing partial shading?
Yes, the EVO 6R series handles partial shading well thanks to its half-cut cell layout. Splitting each cell into two independent halves limits the impact of shadow on the overall string output. The same advantage applies to carport installations with lateral obstructions. For persistent or extensive shading patterns, adding power optimizers or microinverters is still recommended to maximize harvest.
Is SunEvo Solar a Tier 1 manufacturer, and does that affect financing for an EVO 6R system?
SunEvo Solar is not currently listed among Tier 1 manufacturers according to Bloomberg NEF rankings. For residential prosumers, this typically has little practical impact - module specifications, warranty terms, and service availability matter more. For larger commercial projects or bank-financed installations, it is worth confirming the lender's requirements upfront, as some financial institutions require modules sourced exclusively from Tier 1-rated manufacturers.
What are the dimensions of the SunEvo Solar EVO 6R 455 Wp panel, and will it fit a standard roof mounting system?
The 455 Wp variant of the EVO 6R is built on a 132 half-cut cell configuration (6×22 layout) with approximate dimensions of 2382 × 1134 × 30 mm. Before ordering, confirm compatibility with your planned racking system, as the larger module format requires appropriate rail spacing. Your installer can verify whether the existing or proposed rail setup accommodates these dimensions without additional BoS components.
