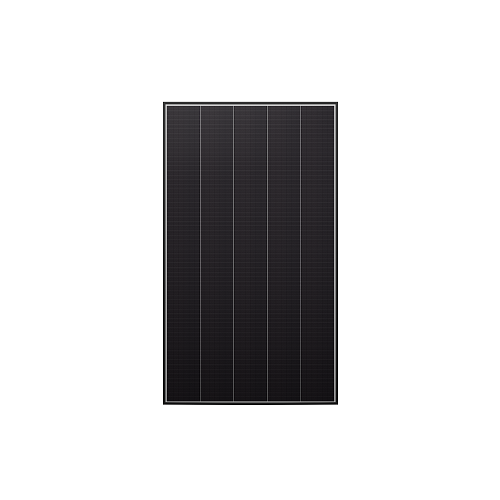

SunEvo Solar SE6-46SC-445W
SunEvo Solar Brand review

SE6-46SC-445W

445 Wp Monocrystalline
ComparePV verdict

Light for its output, short guarantee

Rank 8,888 of 14,129
Compare panels Datasheet PDF
Power (Wp)
445
Typical for its class
Efficiency (%)
21.40
Typical · median 21.50%
Density (Wp/m²)
213.8
Typical · median 215.1
Temp (%/°C)
-0.340
Typical · median -0.300
Weight (kg)
21.8
Strong · 1.7 kg below median
Warranty (yrs)
25
Weak · bottom 17%

The SunEvo Solar SE6-46SC (EVOX) 420-445W Shingled Monofacial series focuses on shingled technology, which is a "roof-like" arrangement with a very dense layout of solar cell strips. Thanks to glue-based, non-soldered connections, the module minimizes losses at connections and better utilizes the active surface, which is particularly beneficial in situations where every square meter of roof space is valuable. This architecture also translates to greater resistance to partial shading - when a shadow falls on a portion of the module, the power output is typically lower than in traditional panels with visible busbars.

In practice, this series addresses common issues with rooftop installations: limited space, uneven solar exposure (chimneys, skylights, trees), and the need for an aesthetically pleasing finish. Available frame options (including black) make it easy to match with modern roofs, and the high reliability of the shingled structure ensures long-term stability. This is a good choice for single-family homes, small businesses, and C&I installations, where high power density and predictable output are important.

Ranking

7,356 panels in the 345-545 W band, all technologies
Metric This panel Median Position in segment Overall rank
Module efficiency 21.40% 21.50% Typical 8,388
Power density 213.8 215.1 Typical 8,410
Temperature coefficient -0.340 -0.300 Typical 8,846
Weight per kWp 49.0 52.7 Strong · top 22% 2,675
Performance warranty 25 yrs 30 yrs Weak · bottom 17% 9,912
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 1 caution
Best for

Residential, commercial and shaded-installations.

Not ideal for

Owners who want a long output guarantee.

Strengths
49.0 kg per kWp

Top 22% of the 345-545 W band, against a median of 52.7.

Watch-outs
25 year performance warranty

Bottom 17% of the 345-545 W band, against a median of 30 yrs.

Notes from the database
  • At 21.4% efficiency, this panel is on par with typical database modules
  • Power density of 213.8 W/m² is 4.3 W/m² below database median (218.1 W/m²) - needs more roof space
  • At -0.34%/°C, loses 0.04pp more power per degree than database median (-0.30%/°C)
  • 21.8 kg weight - 4.7 kg lighter than database median (26.5 kg), reducing installation effort
  • In the top 59% for efficiency among all N-type panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 445 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.40 % Typical Segment median 21.50%
Vmpp · Impp 36.40 V · 12.23 A Operating point at max power
Voc · Isc 43.80 V · 13.01 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1899×1096×30 mm · 2.08 m² of roof
Weight 21.8 kg Strong Strong · 1.7 kg below median
Coefficient Pmax -0.340 %/°C Typical median -0.300 of its segment
Coefficient Voc · Isc -0.270 · 0.040 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 25 years Weak bottom 17% · median 30 yrs
End-of-warranty output 84.8 % Equals 365 W guaranteed
Degradation 2.00 → 0.55 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by SunEvo Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 445 Wp appear here. The rest cover the whole series.

Linear Power Warranty (Warranty for Power Output) Linear Power Warranty (Warranty for Power Output) Whole series I-V Curve – Cell Temperature 25°C I-V Curve – Cell Temperature 25°C Whole series I-V Curve – AM1.5 1000W/m², Temperature Dependence I-V Curve – AM1.5 1000W/m², Temperature Dependence Whole series Linear Power Warranty (Warranty for Power Output) Linear Power Warranty (Warranty for Power Output) Whole series I-V Curve – Cell Temperature 25°C I-V Curve – Cell Temperature 25°C Whole series I-V Curve – AM1.5 1000W/m², Temperature Dependence I-V Curve – AM1.5 1000W/m², Temperature Dependence Whole series Linear Power Warranty (Warranty for Power Output) Linear Power Warranty (Warranty for Power Output) Whole series I-V Curve – Cell Temperature 25°C I-V Curve – Cell Temperature 25°C Whole series I-V Curve – AM1.5 1000W/m², Temperature Dependence I-V Curve – AM1.5 1000W/m², Temperature Dependence Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.340 %/°C against a segment median of -0.300
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
SunEvo Solar SE6-46SC-445W 445 W 21.40% -0.340 21.8 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +50 W, cooler, +3.4 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, +3.1 pp, +5 yr warranty
STP-NT11/48QGSF-490 490 W 24.50% -0.260 21.5 kg Cooler, +3.1 pp, +5 yr warranty
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg Cooler, +2.9 pp, +5 yr warranty
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg Cooler, +2.9 pp, +5 yr warranty
LR7-54HJD-495M 495 W 24.30% -0.240 23.5 kg +50 W, cooler, +2.9 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg Cooler, +2.9 pp, +5 yr warranty
SE6-46SC-420W 420 W 20.20% -0.340 21.8 kg -25 W, -1.2 pp
SE6-46SC-425W 425 W 20.40% -0.340 21.8 kg -20 W, -1.0 pp
SE6-46SC-430W 430 W 20.70% -0.340 21.8 kg -15 W, -0.7 pp
SE6-46SC-435W 435 W 20.90% -0.340 21.8 kg -10 W, -0.5 pp
SE6-46SC-440W 440 W 21.10% -0.340 21.8 kg -0.3 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +65 W, cooler, +3.6 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +115 W, cooler, +3.4 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +60 W, cooler, +3.3 pp
WST-505BKX54-A2 505 W 24.70% -0.260 25.0 kg +60 W, cooler, +3.3 pp

Found 27 panels of the same or similar size to this one, within ±10 mm. See them here Found 27 panels of the same or similar size to this one, within ±25 mm. See them here Found 799 panels of the same or similar size to this one, within ±50 mm. See them here Found 1877 panels of the same or similar size to this one, within ±100 mm. See them here

About the SE6-46SC (EVOX) 420-445W Shingled Monofacial series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What is the shingled cell technology in the SunEvo Solar EVOX series and does it matter for my installation?
Shingled technology stacks narrow cell strips in a tile-like pattern, bonded with conductive adhesive instead of solder, eliminating visible busbars. This increases the active cell area and reduces resistive losses at interconnects. For rooftop installations with limited space, it translates to higher power density per square meter compared to conventional PERC modules with standard busbar layouts.
What warranty does the SunEvo Solar SE6-46SC (EVOX) series come with?
The SE6-46SC (EVOX) series carries a 25-year product warranty covering material defects and workmanship, plus a 25-year linear power output warranty. This extended performance guarantee means the manufacturer commits to maintaining module output above the warranted threshold for over two decades, supporting a predictable LCOE calculation over the full system lifetime.
Will the SunEvo EVOX series perform well on a roof partially shaded by a chimney or tree?
Yes, the shingled cell architecture improves shade tolerance compared to standard busbar-based modules. When a shadow covers part of the panel from a chimney, dormer, or tree, power loss is distributed more evenly across the individual cell strips rather than cutting across a full string. For persistent, severe shading, power optimizers or microinverters are still recommended, but under typical partial-shade conditions EVOX modules deliver noticeably better yield.
Is the SunEvo SE6-46SC (EVOX) available in a black frame and will it suit a modern roof?
Yes, the EVOX series is offered in a black frame variant and an ultra black version combining a black frame with a black backsheet. Both options blend visually with dark roofing materials such as metal roof tiles or ceramic tiles, making them a practical choice for homeowners who want high energy yield without compromising the appearance of their roof.
What is the peak power output of the SunEvo EVOX panel and is it enough for a single-family home?
The highest-rated module in the series delivers 445 Wp. A typical single-family home system ranges from 5 to 10 kWp, requiring between 12 and 23 panels depending on annual energy consumption and available roof area. The high per-module power of 445 Wp means you reach the target system size with fewer panels and a smaller roof footprint.
Is the SunEvo Solar SE6-46SC (EVOX) a bifacial panel?
No, the SE6-46SC (EVOX) is a monofacial module - it generates power from the front side only and does not capture reflected irradiance from the ground the way bifacial panels do. For standard rooftop installations this makes no practical difference, since the rear of the module is mounted against the racking structure. Bifacial gain is most relevant in ground-mount systems with high-albedo surfaces beneath the array.
