415Wp
Seraphim SRP-415-BMD-BG
Seraphim Review

SRP-415-BMD-BG

MonocrystallineBifacial
Datasheet
21.25%
Efficiency
212.5 Wp/m²
Power Density
-0.340%/°C
Temp. Coeff. Pmax chart
359W from 415W
Power after 30 years
Smart Insights (data-driven)
  • 21.2% module efficiency - 0.6pp better than the PERC 400-450W median of 20.7%
  • 212.5 W/m² power density - 6.0 W/m² more than PERC 400-450W median (206.5 W/m²), more power per roof area
  • At -0.34%/°C, hot weather performance is typical for PERC 400-450W panels
  • At 24.0 kg (2.2 kg above PERC 400-450W median of 21.8 kg), requires checking roof load capacity
  • Bifaciality factor of 70% can add 4-10% extra yield with reflective mounting surface
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series Seco 400-415W 8 variants
Efficiency Range 20.5% - 21.2%
Avg. Efficiency 20.87%
Technology PERC
Dimensions 1722 × 1134 mm
Show series description

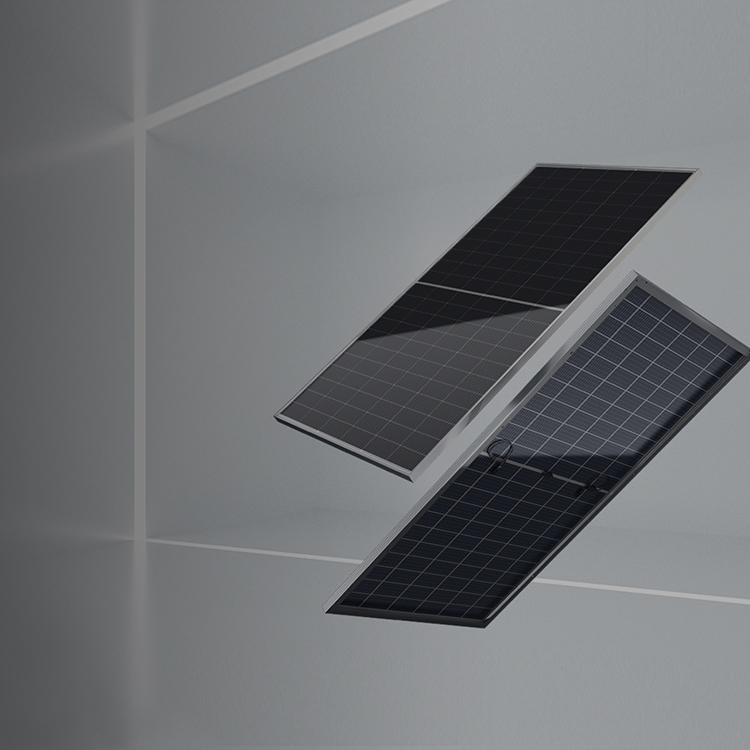

The Seraphim Seco 400-415W series is a module series based on monocrystalline cells with PERC technology, designed to operate reliably in real rooftop conditions – even with partial shading and high temperatures. The use of a 108-cell configuration improves performance when partially shaded and reduces losses due to uneven sunlight exposure, which is a common challenge in Polish installations. The series also features a positive power tolerance, which makes it easier to maintain predictable yields throughout the entire module chain. The Seco series stands out with a watertight junction box with IP68 protection and a anti-reflective glass coating, which translates to durability and improved performance in diffused light. It is a good choice for residential and commercial installations, where reliability, weather resistance, and long-term investment returns are important.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)415 Wp
Module Efficiency21.25%
Voltage at Max Power (Vmpp)31.16 V
Current at Max Power (Impp)13.32 A
Open Circuit Voltage (Voc)37.42 V
Short Circuit Current (Isc)13.90 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.340%/°C
Temp. Coeff. Voc-0.260%/°C
Temp. Coeff. Isc0.050%/°C
NOCT45°C
Cell Technology
Cell TypeMonocrystalline
Cell Count108
BifacialYes
Bifaciality Factor70%
Dimensions & Weight
Length1722 mm
Width1134 mm
Height30 mm
Weight24.0 kg
Area1.95 m²
Power Density212.5 Wp/m²
Warranty
Product Warranty15 years
Performance Warranty30 years
End-of-Warranty Output87.2%
First Year Degradation2.00%
Annual Degradation0.40%/year
Key Specifications
21.25%
Efficiency
415 Wp
Power
-0.34%/°C
Temp Coeff
30 yrs
Warranty
