Space saver, weak in heat
The HT-SAAE HT54-18X(N) series was designed for maximum energy yield on limited rooftop surfaces. What sets it apart is the use of N-type TOPCon cells, which provide ZERO LID, meaning no typical light-induced degradation - translating to more stable performance year after year. The half-cut construction helps minimize internal losses, improves performance under partial shading, and increases resistance to microcracks during transportation and installation. Meanwhile, the multi-busbar connection architecture supports better current collection and maintains high efficiency in real-world conditions. These modules are also designed for intensive operation - thanks to their enhanced mechanical durability, they perform well in areas with higher wind and snow loads. This is an excellent choice for both residential and commercial installations, where predictable yield, high performance even in weaker sunlight, and long-term profitability matter.
Ranking
Signals from the data
Residential, commercial and shaded-installations.
Hot climates.
Top 6% of the TOPCon 450-500 W segment, against a median of 225.2. Ranked 707th in the whole database.
Top 6% of the TOPCon 450-500 W segment, against a median of 52.2. Ranked 504th in the whole database.
Top 6% of the TOPCon 450-500 W segment, against a median of 22.52%. Ranked 749th in the whole database.
Bottom 6% of the TOPCon 450-500 W segment, against a median of -0.290. Ranked 8,069th in the whole database.
Peak efficiency of 23.8% positions this series above its direct competitors - DAH Solar DHN-60R20/DG (23.0%) and Silfab Commercial NTC (21.9%) - and marginally above the TCL Zhonghuan Back Contact (23.5%). In practice, this translates to meaningfully higher energy yield per m² of roof area for an equivalent installation footprint.
N-type TOPCon cells eliminate the LID (Light-Induced Degradation) effect characteristic of older P-type PERC cells. The declared annual degradation rate of 0.4%/year compares favorably to approximately 0.55%/year for PERC, resulting in a measurably higher cumulative energy yield over a 30-year operating lifetime.
The manufacturer guarantees a minimum of 87.4% rated power output after 30 years, backed by a 30-year product warranty - a standard that exceeds the market baseline, where most manufacturers offer 25-year power warranties. This qualifies the series as a long-term solution for both residential prosumer and commercial installations, with no warranty gap risk.
HT-SAAE (Shanghai Aerospace Automobile Electromechanical Co., Ltd.) has maintained continuous BNEF Tier 1 bankable status since 2014 and operates a manufacturing capacity of approximately 5 GW/year (Q1 2025 data). Its affiliation with China's CASC space agency provides capital-backed stability and substantially reduces manufacturer insolvency risk over the warranty horizon.
The half-cut cell architecture reduces internal resistive losses and limits the impact of partial shading on overall module output - offering better shade tolerance than full-cell variants. Multi-busbar (MBB) interconnection shortens current pathways, improves low-light and diffuse irradiance response, and increases resistance to microcracks during transport and installation.
The HT54-18X(N) series is a monofacial module, whereas its direct competitor - the DAH Solar DHN-60R20/DG in the same power class (495-520 W) - offers a bifacial, dual-glass construction. On installations with high-albedo surfaces (gravel, light-colored concrete, snow), bifacial modules can deliver 5-15% higher annual energy yield, a measurable difference in LCOE at commercial scale.
- 23.5% module efficiency - 1.0pp better than the TOPCon 450-500W median of 22.5%
- Power density of 235.2 W/m² packs 10.0 W/m² more into the same footprint vs TOPCon 450-500W median (225.2 W/m²)
- At -0.31%/°C, loses 0.02pp more power per degree than TOPCon 450-500W median (-0.29%/°C)
- At 21.0 kg, this panel is 3.0 kg lighter than TOPCon 450-500W median (24.0 kg) - easier handling during installation
- #716 for efficiency, #8005 for temperature performance out of 14005 panels
Specifications

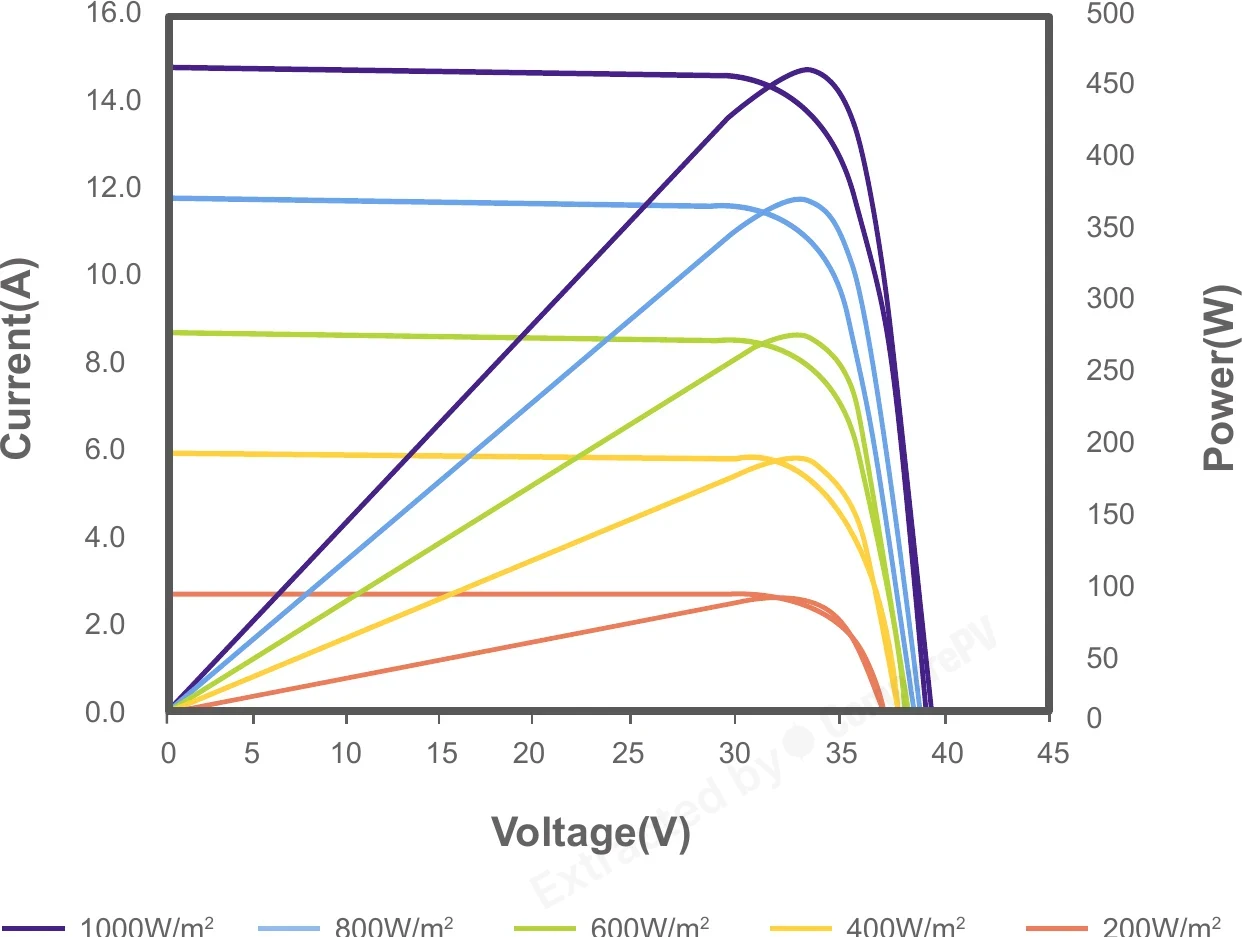

Datasheet charts
Measured curves published by HT-SAAE in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 470 Wp appear here. The rest cover the whole series.
Simulations
Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.
Alternatives
Found 1402 panels of the same or similar size to this one, within ±10 mm. See them here Found 1432 panels of the same or similar size to this one, within ±25 mm. See them here Found 3651 panels of the same or similar size to this one, within ±50 mm. See them here Found 3999 panels of the same or similar size to this one, within ±100 mm. See them here
About the HT54-18X(N) series
These answers cover the whole series. Where a figure differs, the specification above is this module's own.
