Solitek SOLID Solrif 435
Solitek Brand review

SOLID Solrif 435

435 Wp TOPCon Bifacial
ComparePV verdict

Middle of its segment, heavy for its output

Rank 6,452 of 14,129
Compare panels Datasheet PDF
Power (Wp)
435
Typical for its class
Efficiency (%)
22.04
Typical · median 22.00%
Density (Wp/m²)
212.2
Weak · bottom 7%
Temp (%/°C)
-0.300
Typical · median -0.290
Weight (kg)
27.0
Weak · 5.0 kg above median
Warranty (yrs)
30
Typical · median 30 yrs

The SOLID Solrif Full Black series is a solution designed for complete roof integration - these panels function as both a roof covering and a solar energy generator. Thanks to the unique Solrif mounting system, the modules are mounted directly as part of the roof structure, eliminating the need for traditional supports and ensuring a watertight seal comparable to traditional tiles. The uniform, full-black surface without visible metal elements allows the installation to seamlessly blend into the roof, creating a cohesive and architecturally refined whole. The technology of N-type TOPCon bifacial solar cells ensures high performance even under low irradiance or cloudy conditions. The glass-glass construction guarantees exceptional mechanical resistance to snow, hail, and strong winds, and the 30-year product and power warranty confirms the longevity of the series. DIBt certification allows the panels to be used in construction even in demanding climatic conditions. This is a solution for discerning investors, architects, and developers seeking modules that combine the highest level of aesthetics with excellent energy parameters - ideal for modern single-family homes, residential developments, and BIPV projects, where the appearance of the roof is a priority.

Ranking

1,220 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.04% 22.00% Typical 6,344
Power density 212.2 220.2 Weak · bottom 7% 9,145
Temperature coefficient -0.300 -0.290 Typical 6,152
Weight per kWp 62.1 51.5 Weak · bottom 4% 12,836
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 2 caution
Best for

Residential, commercial and BIPV.

Not ideal for

Weight-limited structures and roofs where every square metre has to count.

Watch-outs
62.1 kg per kWp

Bottom 4% of the TOPCon 400-450 W segment, against a median of 51.5. Ranked 12,836th in the whole database.

212.2 watts per square metre

Bottom 7% of the TOPCon 400-450 W segment, against a median of 220.2. Ranked 9,145th in the whole database.

Notes from the database
  • Efficiency of 22.0% matches the TOPCon 400-450W median
  • 212.2 W/m² power density is 8.0 W/m² below TOPCon 400-450W median (220.2 W/m²) - requires larger installation area
  • At -0.30%/°C, hot weather performance is typical for TOPCon 400-450W panels
  • At 27.0 kg, this panel is 5.0 kg heavier than the TOPCon 400-450W median (22.0 kg) - more demanding for installation crews
  • In the top 45% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 435 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.04 % Typical Segment median 22.00%
Vmpp · Impp 32.96 V · 13.20 A Operating point at max power
Voc · Isc 38.92 V · 13.80 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1767×1160×17 mm · 2.05 m² of roof
Weight 27.0 kg Weak Weak · 5.0 kg above median
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.045 %/°C
NOCT 46 °C At 800 W/m², 20 °C ambient
Product warranty 30 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 90.0 % Equals 392 W guaranteed
Degradation 1.00 → 0.31 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Solitek in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 435 Wp appear here. The rest cover the whole series.

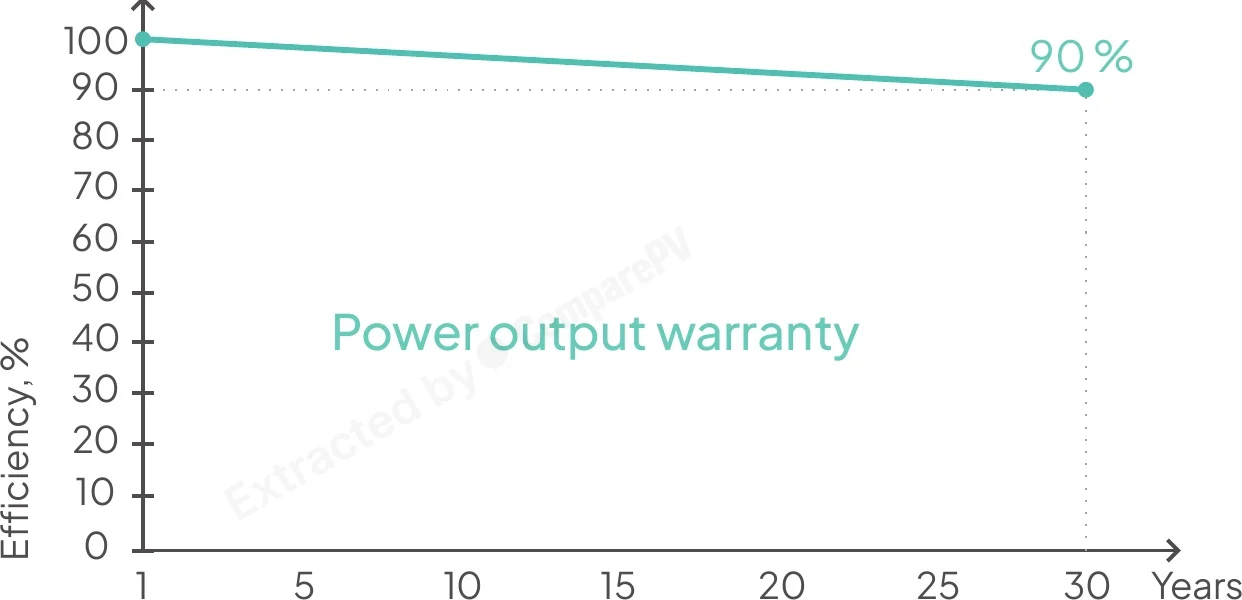

Power output warranty Power output warranty Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Solitek SOLID Solrif 435 435 W 22.04% -0.300 27.0 kg You are here
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg +50 W, lighter, +2.3 pp
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg +50 W, lighter, +2.3 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg +50 W, lighter, +2.3 pp
GK-5-54HG-485M 485 W 24.30% -0.260 21.0 kg +50 W, lighter, +2.3 pp
ZEUS 3.0+ 108 485WP 485 W 24.30% -0.260 24.2 kg +50 W, cooler, +2.3 pp
SOLID Solrif Terracotta Orange 285W 285 W 14.45% -0.300 33.5 kg -150 W, heavier, -7.6 pp
SOLID Solrif Transparent 290 290 W 14.69% -0.300 33.5 kg -145 W, heavier, -7.3 pp
SOLID Solrif Terracotta Bronze 355 355 W 18.00% -0.300 27.0 kg -80 W, -4.0 pp
SOLID Solrif 425 425 W 21.54% -0.300 33.5 kg -10 W, heavier, -0.5 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +75 W, cooler, +3.0 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +60 W, lighter, +2.8 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +70 W, cooler, +2.7 pp
WST-505BKX54-A2 505 W 24.70% -0.260 25.0 kg +70 W, cooler, +2.7 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +55 W, lighter, +2.5 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +65 W, cooler, +2.5 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +65 W, lighter, +2.5 pp

Found 9 panels of the same or similar size to this one, within ±10 mm. See them here Found 30 panels of the same or similar size to this one, within ±25 mm. See them here Found 3556 panels of the same or similar size to this one, within ±50 mm. See them here Found 3703 panels of the same or similar size to this one, within ±100 mm. See them here

About the SOLID Solrif Full black series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

How does the Solrif mounting system work, and do SOLID Solrif Full Black panels replace traditional roofing?
Yes, SOLID Solrif Full Black panels are installed using the proprietary Solrif system developed in partnership with Swiss company Ernst Schweizer AG. The modules replace conventional tiles or sheet metal, forming a watertight roof covering without additional brackets. The system delivers weatherproofing comparable to traditional roofing, while the absence of visible metal elements creates a clean, fully black roof surface.
What is the actual energy gain from bifacial cells in the SOLID Solrif Full Black series?
The bifacial N-type TOPCon cells in this series can generate up to 35% additional energy from the rear side of the module by capturing light reflected from the roof surface or surroundings. The bifacial gain is most pronounced on installations with lighter substrates or higher-albedo rooftops. Front-side rated power reaches 435 Wp, with real-world output exceeding that figure thanks to the bifacial effect.
What warranty comes with Solitek SOLID Solrif Full Black panels and what does it cover?
The SOLID Solrif Full Black series carries a 30-year product warranty and a 30-year power output warranty. Manufacturer Solitek, headquartered in Lithuania, also guarantees module longevity for at least 50 years. The warranty covers manufacturing defects and guaranteed power output levels throughout the service life, which stands out against the industry-standard 10-12-year product warranty offered by many competitors.
Do SOLID Solrif Full Black panels perform well in winter, overcast skies, and low-irradiance conditions?
Yes. N-type TOPCon technology features a low power temperature coefficient of -0.30% per degree Celsius, meaning minimal losses on cold but sunny days. Bifacial cells also capture diffuse irradiance more effectively under cloud cover. The glass-glass construction (3.2+3.2 mm) withstands snow loads up to 10,500 Pa, making the panels well-suited for climates with heavy winter precipitation.
What is the hail and wind resistance rating for the SOLID Solrif Full Black series?
The SOLID Solrif Full Black series is certified to hail resistance Class 5, meaning it withstands hailstones up to 50 mm in diameter at impact speeds exceeding 35 m/s. Wind load resistance reaches 3,600 Pa and snow load resistance 10,500 Pa. The modules also hold Fire Class A certification and DIBt approval, qualifying them for use as a building component in demanding climatic conditions.
Is the SOLID Solrif Full Black series suitable for BIPV projects and residential architecture?
Yes, BIPV is one of the primary use cases for this series. DIBt (Deutsches Institut für Bautechnik) certification qualifies the panels as a structural building element. The uniform full-black surface with no visible screws or frames makes the modules ideal for modern single-family homes, residential developments, and BIPV projects where roof aesthetics are a priority. The 1767 × 1160 mm dimensions simplify alignment with standard roof geometries.
