AE Solar CMD-108BDS-440
AE Solar Brand review

CMD-108BDS-440

440 Wp TOPCon Bifacial 80%
ComparePV verdict

Space saver, no clear weak spot

Rank 8,775 of 14,129
Compare panels Datasheet PDF
Power (Wp)
440
Typical for its class
Efficiency (%)
22.57
Strong · top 5%
Density (Wp/m²)
225.7
Strong · top 4%
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
23.5
Typical · median 22.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

The AE Solar HORIZON series redefines performance standards through the use of advanced HJT heterojunction cell technology, which effectively combines the advantages of crystalline and thin-film silicon. This innovative solution completely eliminates the problem of the LID effect and significantly minimizes voltage-induced degradation, which translates into a much longer lifespan and stability of energy yields throughout many years of operation. These modules are distinguished by an exceptionally high bifaciality factor, allowing for the efficient generation of additional power also from radiation reflected from the ground, which is crucial in professional ground-mounted installations and on roofs with light-colored coverings. Thanks to an excellent temperature coefficient, HORIZON panels maintain record efficiency even on very hot days, solving the common problem of performance drops during excessive cell heating. This product is dedicated to investors seeking premium-class solutions, for whom the priority is maximizing production from a limited roof area or in difficult lighting conditions. The use of an advanced N-type structure makes this series distance itself from the competition in terms of resistance to micro-cracks and efficiency in diffused light. It is an intelligent choice for modern photovoltaic systems, guaranteeing the highest possible return on investment thanks to the combination of breakthrough semiconductor physics with an exceptionally solid mechanical construction.

Ranking

1,220 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.57% 22.00% Strong · top 5% 3,942
Power density 225.7 220.2 Strong · top 4% 3,908
Temperature coefficient -0.290 -0.290 Typical 2,220
Weight per kWp 53.4 51.5 Typical 7,393
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

7 positive · 0 caution
Best for

Commercial, utility-scale and hot-climate.

Strengths
225.7 watts per square metre

Top 4% of the TOPCon 400-450 W segment, against a median of 220.2. Ranked 3,908th in the whole database.

22.57% module efficiency

Top 5% of the TOPCon 400-450 W segment, against a median of 22.00%. Ranked 3,942nd in the whole database.

What owners get
Performance in the leading segment

The maximum efficiency of 22.86% exceeds all the comparable products mentioned: DAH DHN-72X16/DG(BB) (22.84%), Horay Solar HS 182-144 TC-D Ocean (22.80%), and Talesun TM7G72M (22.80%). Even the lower end of the range (22.08%) places the series above the median for 144-cell TOPCon 590W modules.

The only Tier 1 BNEF manufacturer in Europe with high bankability

BloombergNEF has identified AE Solar as the only European manufacturer with a "High Bankability" rating in 2024 (bankability has increased from 26% in 2023 to 50% in 2024). This means significantly lower counterparty risk for projects financed by European banks compared to manufacturers from Asia without a European headquarters.

30-year linear warranty on the product and its power

The manufacturer offers both a 30-year product warranty and a 30-year power warranty, with more than 87% of the nominal power remaining after 30 years. Peer comparisons of DAH and Talesun products typically offer a 25-year power warranty, which translates to a significantly higher cumulative energy yield over the entire lifespan.

Low temperature coefficient of TOPCon N-type

The temperature coefficient is -0.29%/°C, which is a notable value for N-type TOPCon technology and significantly better than typical PERC modules (-0.35%/°C). When heated to 65°C, the module loses approximately 11.6% of its rated power, compared to ~14.5% in older PERC generation, which directly translates to higher energy yield during the summer season.

Awarded PVEL Top Performer 2025

AE Solar has been awarded the Kiwa PVEL Top Performer Award 2025 for its TOPCon N-type bifacial modules, which is an independent validation of the product's quality and reliability, as demonstrated in rigorous laboratory tests, including resistance to PID degradation, mechanical stress, and thermal cycling.

Notes from the database
  • Efficiency of 22.6% is 0.6pp above the TOPCon 400-450W median (22.0%)
  • Power density of 225.7 W/m² packs 5.5 W/m² more into the same footprint vs TOPCon 400-450W median (220.2 W/m²)
  • At -0.29%/°C, hot weather performance is typical for TOPCon 400-450W panels
  • Weight of 23.5 kg is 1.5 kg above TOPCon 400-450W median (22.0 kg) - verify structural support
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces

Specifications

Open datasheet PDF
Nominal power (Pmax) 440 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.57 % Strong Segment median 22.00%
Vmpp · Impp 32.84 V · 13.40 A Operating point at max power
Voc · Isc 38.66 V · 14.30 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1721×1133×30 mm · 1.95 m² of roof
Weight 23.5 kg Typical Typical · median 22.0 kg
Cells 108 · TOPCon Monocrystalline
Bifaciality 80 % Rear output as a share of front
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 42 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 385 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by AE Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 440 Wp appear here. The rest cover the whole series.

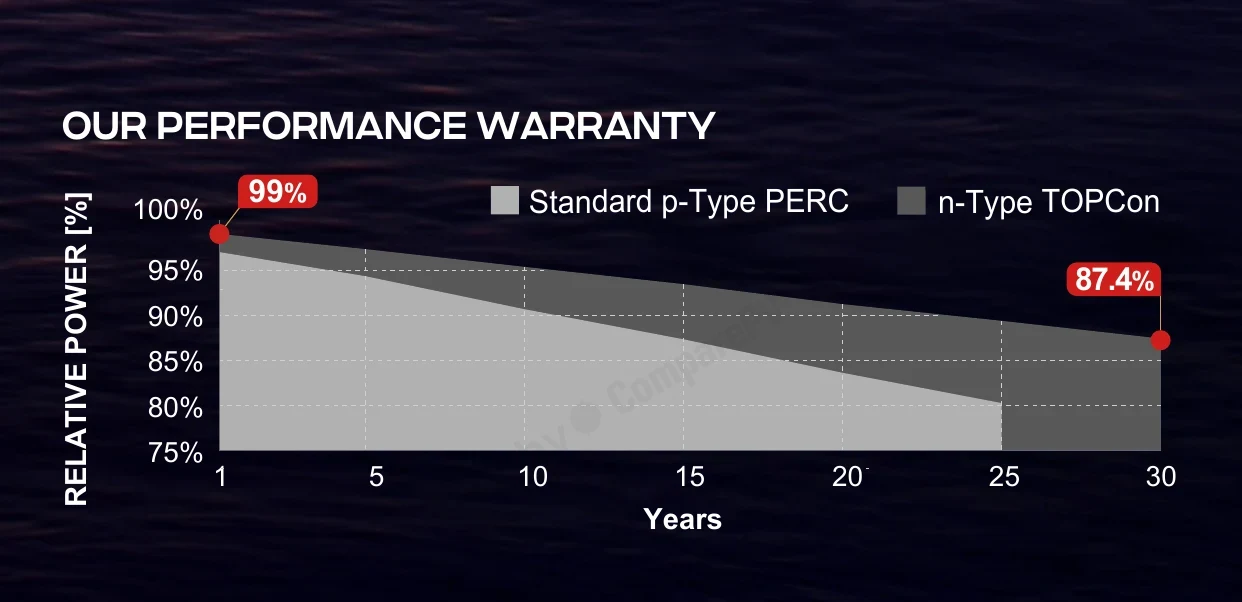

Our Performance Warranty Our Performance Warranty Whole series Cells temp. = 25°C Cells temp. = 25°C Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
AE Solar CMD-108BDS-440 440 W 22.57% -0.290 23.5 kg You are here
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +50 W, cooler, +1.9 pp
STP-NT11/48QGSF-490 490 W 24.50% -0.260 21.5 kg +50 W, cooler, +1.9 pp
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg +45 W, lighter, +1.7 pp
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg +45 W, cooler, +1.7 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg +45 W, cooler, +1.7 pp
GK-5-54HG-485M 485 W 24.30% -0.260 21.0 kg +45 W, cooler, +1.7 pp
ZEUS 3.0+ 108 485WP 485 W 24.30% -0.260 24.2 kg +45 W, cooler, +1.7 pp
AE CMD-72BD 280W 280 W 14.36% -0.290 23.5 kg -160 W, -8.2 pp
AE CMD-72BD 285W 285 W 14.62% -0.290 23.5 kg -155 W, -8.0 pp
AE CMD-72BD 290W 290 W 14.87% -0.290 23.5 kg -150 W, -7.7 pp
AE CMD-72BD 295W 295 W 15.13% -0.290 23.5 kg -145 W, -7.4 pp
AE CMD-72BD 300W 300 W 15.39% -0.290 23.5 kg -140 W, -7.2 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +70 W, cooler, +2.4 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +55 W, cooler, +2.2 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +65 W, cooler, +2.1 pp
WST-505BKX54-A2 505 W 24.70% -0.260 25.0 kg +65 W, cooler, +2.1 pp

Found 1797 panels of the same or similar size to this one, within ±10 mm. See them here Found 1928 panels of the same or similar size to this one, within ±25 mm. See them here Found 3413 panels of the same or similar size to this one, within ±50 mm. See them here Found 4015 panels of the same or similar size to this one, within ±100 mm. See them here

About the HORIZON series

6 answered

These answers cover the whole series. Where a figure differs, the specification above is this module's own.

What are the key features of the TOPCon technology used in AE Solar HORIZON panels?
TOPCon (Tunnel Oxide Passivated Contact) is a technology for N-type solar cells that, through a tunnel oxide layer, significantly reduces charge carrier recombination. In practice, this translates to module efficiencies exceeding 22%, the absence of LID (light-induced degradation), and exceptionally low annual degradation throughout the product's lifespan. The HORIZON series achieves peak power outputs of up to 590 W, making it one of the most efficient options for residential and commercial installations.
Are AE Solar HORIZON panels bifacial, and under what circumstances does bifaciality actually offer a significant advantage?
Yes, the HORIZON series are bifacial modules - they generate power from both direct sunlight from the front and reflected sunlight from the ground via the back. The additional gain from the back is typically 5-25%, depending on the albedo of the ground and the mounting angle. You will achieve the greatest benefits with ground-mounted systems, flat roofs with a light-colored membrane, or in agrivoltaic systems, where reflection from the ground is high.
What warranty does the AE Solar HORIZON series provide, and what does it cover?
AE Solar provides up to 30 years of product warranty for its HORIZON series, covering manufacturing defects and structural integrity, as well as 30 years of linear power warranty. After three decades of operation, the module should maintain at least 87% of its nominal power. This is one of the longest warranties available in the photovoltaic market, and it reflects the manufacturer's high confidence in the durability of its modules.
How do AE Solar HORIZON panels perform under high temperatures on hot days?
HORIZON modules, based on the N-type TOPCon structure, have a very low temperature coefficient, approximately -0.29%/°C. This means that they lose significantly less power compared to older PERC modules (approximately -0.34%/°C) when the temperature increases above 25°C. When the cell temperature exceeds 60°C in the summer, this difference translates into a significantly higher daily energy yield - particularly important in south-facing rooftop installations that are exposed to intense sunlight.
How many AE Solar HORIZON 590 Wp panels do I need for a 10 kWp residential system?
With a peak power output of 590 Wp per module, you only need approximately 17 panels to build a 10 kWp system. The high power density per square meter, characteristic of N-type TOPCon technology, means that the installation takes up less space on the roof compared to older, less efficient modules. This is a key advantage when roof space is limited or part of the roof is shaded.
Is AE Solar a reputable manufacturer - does it have Tier 1 status?
Yes, AE Solar is a manufacturer with Tier 1 status according to the Bloomberg NEF ranking, based in Germany. This Tier 1 status confirms compliance with strict financial and quality criteria - the modules from this manufacturer are accepted by leading banks and financial institutions that fund photovoltaic projects. This has practical implications when applying for a loan, lease, or funding from programs such as "My Current" or the BGK's green loan program.
