DNA-144-BF10-540W-DG vs Bi-55-540 14 of 19 identical Swap Change panels

Aptos Solar DNA-144-BF10-540W-DG vs Waaree Bi-55-540

Q: Which panel is better: Aptos Solar DNA-144-BF10-540W-DG or Waaree Bi-55-540?

According to our database: Waaree Bi-55-540 has higher module efficiency (20.98% vs 20.90%); Aptos Solar DNA-144-BF10-540W-DG tolerates heat better (temp coeff -0.335%/°C vs -0.350%/°C). See the full spec comparison and 30-year energy simulation above for a complete picture.

Q: What is the efficiency of Aptos Solar DNA-144-BF10-540W-DG and Waaree Bi-55-540?

Aptos Solar DNA-144-BF10-540W-DG has a module efficiency of 20.90%, while Waaree Bi-55-540 is 20.98%. Higher efficiency means more electricity from the same roof area - useful when space is limited.

Q: What cell technology does Aptos Solar DNA-144-BF10-540W-DG use vs Waaree Bi-55-540?

Aptos Solar DNA-144-BF10-540W-DG uses PERC cells; Waaree Bi-55-540 uses PERC. Modern n-type technologies (TOPCon, HJT, BC) typically deliver higher efficiency and lower degradation compared to older PERC (p-type) cells.

Q: What is the warranty on Aptos Solar DNA-144-BF10-540W-DG and Waaree Bi-55-540?

Aptos Solar DNA-144-BF10-540W-DG has a 30 years power warranty; Waaree Bi-55-540 has a 30 years power warranty. The power warranty guarantees a minimum percentage of rated output at the end of the warranty period (typically 80-87%). Product (materials) warranties are usually shorter.

Q: Are Aptos Solar DNA-144-BF10-540W-DG and Waaree Bi-55-540 bifacial panels?

Both Aptos Solar DNA-144-BF10-540W-DG and Waaree Bi-55-540 are bifacial - they capture reflected light from the ground, which can add 5-15% more annual energy on ground-mount or elevated rooftop installations with a light surface beneath.

Aptos Solar

DNA-144-BF10-540W-DG

540 Wp 20.90 % PERC Bifacial

Open panel page Datasheet PDF

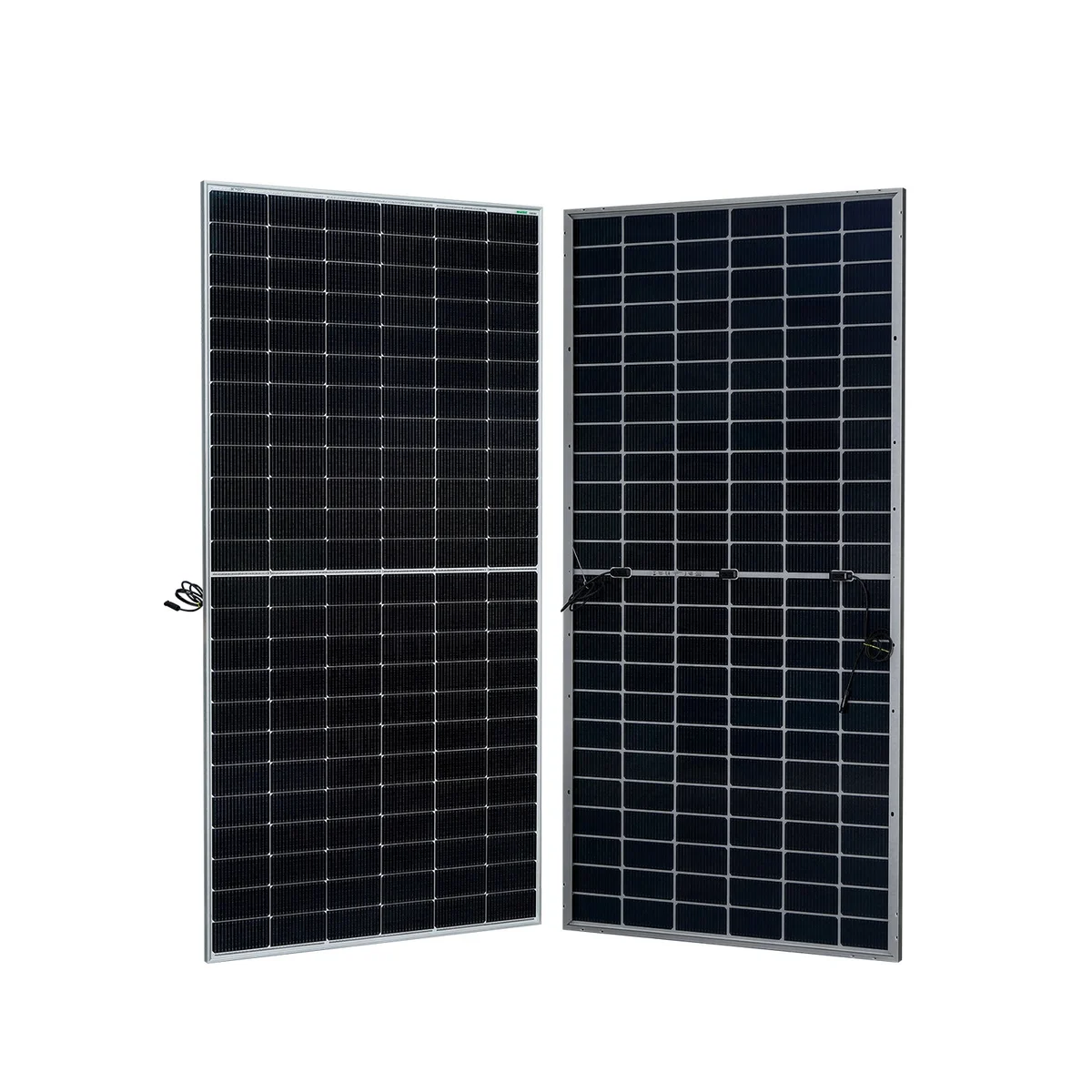

Bi-55-540

540 Wp 20.98 % PERC Bifacial

Open panel page Datasheet PDF

The verdict

DNA-144-BF10-540W-DG leads on the differences that matter

The largest is product warranty: 18 yrs longer. 14 of 19 comparable parameters are identical.

See all 5 differences

How alike are they

14 of 19 comparable
parameters are identical

identical differs

What actually differs

5 of 19 parameters

Parameter DNA-144-BF10-540W-DG Bi-55-540 Difference

Product warranty 30 yrs 12 yrs 18 yrs longer

Temperature coefficient -0.335 %/°C -0.350 %/°C 0.015 %/°C better in heat

Voltage at max power 43.84 V 41.75 V 2.09 V apart

Dimensions 2278x1134x35 mm 2272x1133x35 mm 2278x1134x35 mm vs 2272x1133x35 mm

Current at max power 12.32 A 12.95 A 0.63 A apart

What it means on a roof

Thirty years of production

Each panel's own declared degradation curve, at 1,200 kWh/kWp a year

Cell temperature

DNA-144-BF10-540W-DG

17,535 kWh

Bi-55-540

17,501 kWh

Lifetime gap

34 kWh

Output when it is hot

Rated power carried across the range a module actually sees

Scenario DNA-144-BF10-540W-DG Bi-55-540

Standard test conditions 25 °C 100.0% of rated power 540 W 540 W

Cool, bright day 40 °C 94.8% of rated power 513 W 512 W

Typical summer roof 55 °C 89.5% of rated power 486 W 483 W

Hot roof 70 °C 84.2% of rated power 459 W 455 W

Full specification

Parameter DNA-144-BF10-540W-DG Bi-55-540 Difference

Power and efficiency

Rated power 540 Wp 540 Wp Same

Module efficiency 20.90 % 20.98 % Effectively the same

Power density 209.0 Wp/m² 209.8 Wp/m² Effectively the same

Open-circuit voltage 49.50 V 49.61 V Effectively the same

Voltage at max power 43.84 V 41.75 V 2.09 V apart

Short-circuit current 13.85 A 13.83 A Effectively the same

Current at max power 12.32 A 12.95 A 0.63 A apart

Temperature

Temperature coefficient -0.335 %/°C -0.350 %/°C +0.015 %/°C for DNA-144-BF10-540W-DG

Mechanical

Dimensions 2278x1134x35 mm 2272x1133x35 mm 2278x1134x35 mm vs 2272x1133x35 mm

Module area 2.583 m² 2.574 m² Effectively the same

Weight 32.3 kg 32.5 kg Effectively the same

Weight per kWp 59.8 kg/kWp 60.2 kg/kWp Effectively the same

Warranty and degradation

Product warranty 30 yrs 12 yrs +18 yrs for DNA-144-BF10-540W-DG

Performance warranty 30 yrs 30 yrs Same

Annual degradation 0.54 %/yr 0.55 %/yr Effectively the same

Technology

Cell technology PERC PERC Same

Cell type Monocrystalline Monocrystalline Same

Cell count 144 144 Same

Bifacial Yes Yes Same

Against the whole database

14,005 panels

Efficiency

#10,072 vs #9,963

Bi-55-540 leads by 109 places

Power density

#10,100 vs #9,905

Bi-55-540 leads by 195 places

Heat behaviour

#8,753 vs #10,419

DNA-144-BF10-540W-DG leads by 1,666 places

Weight

#12,294 vs #12,384

DNA-144-BF10-540W-DG leads by 90 places

Warranty

#21 vs #21

Tied - the same position in the database

Overall

#4,039 vs #7,782

DNA-144-BF10-540W-DG leads by 3,743 places

More useful comparisons

Open the full database

Same series, other bin

Aptos Solar

Aptos Solar DNA-144-BF10-540W-DG vs Aptos Solar DNA-144-BF10-550W-DG

3 differences, the largest is module efficiency

Same series, other bin

Aptos Solar

Aptos Solar DNA-144-BF10-540W-DG vs Aptos Solar DNA-144-BF10-545W-DG

The same specification on paper

Same series, other bin

Waaree Bi-55-540 vs Waaree Bi-68-665

12 differences, the largest is rated power

Same series, other bin

Waaree Bi-55-540 vs Waaree Bi-68-660

10 differences, the largest is rated power

Same series, other bin

Waaree Bi-55-540 vs Waaree Bi-68-655

10 differences, the largest is rated power

Same series, other bin

Waaree Bi-55-540 vs Waaree Bi-68-650

10 differences, the largest is rated power

Written summary

Checking cache...

Questions about this pairing

Which panel is better: Aptos Solar DNA-144-BF10-540W-DG or Waaree Bi-55-540?

According to our database: Waaree Bi-55-540 has higher module efficiency (20.98% vs 20.90%); Aptos Solar DNA-144-BF10-540 W-DG tolerates heat better (temp coeff -0.335%/°C vs -0.350%/°C). See the full spec comparison and 30-year energy simulation above for a complete picture.

What is the efficiency of Aptos Solar DNA-144-BF10-540W-DG and Waaree Bi-55-540?

Aptos Solar DNA-144-BF10-540 W-DG has a module efficiency of 20.90%, while Waaree Bi-55-540 is 20.98%. Higher efficiency means more electricity from the same roof area - useful when space is limited.

What cell technology does Aptos Solar DNA-144-BF10-540W-DG use vs Waaree Bi-55-540?

Aptos Solar DNA-144-BF10-540 W-DG uses PERC cells; Waaree Bi-55-540 uses PERC. Modern n-type technologies (TOPCon, HJT, BC) typically deliver higher efficiency and lower degradation compared to older PERC (p-type) cells.

What is the warranty on Aptos Solar DNA-144-BF10-540W-DG and Waaree Bi-55-540?

Aptos Solar DNA-144-BF10-540 W-DG has a 30 years power warranty; Waaree Bi-55-540 has a 30 years power warranty. The power warranty guarantees a minimum percentage of rated output at the end of the warranty period (typically 80-87%). Product (materials) warranties are usually shorter.

Are Aptos Solar DNA-144-BF10-540W-DG and Waaree Bi-55-540 bifacial panels?

Both Aptos Solar DNA-144-BF10-540 W-DG and Waaree Bi-55-540 are bifacial - they capture reflected light from the ground, which can add 5-15% more annual energy on ground-mount or elevated rooftop installations with a light surface beneath.

Compare Aptos Solar and Waaree as manufacturers Portfolio, efficiency, cell technologies and warranty terms

Shop prices: See 8 Aptos Solar offers · See 26 Waaree offers

Every figure here is from the manufacturers' own datasheets - a dash means the value is not published, never an estimate. The thirty-year projection and the temperature scenarios are calculations from those figures, and each states its assumption above.
