Ulica Solar Brand review

UL-460M-108CHVN

460 Wp TOPCon
ComparePV verdict

Light for its output, no clear weak spot

Rank 7,942 of 14,005
Compare panels Datasheet PDF
Power (Wp)
460
Typical for its class
Efficiency (%)
22.54
Typical · median 22.52%
Density (Wp/m²)
225.4
Typical · median 225.2
Temp (%/°C)
-0.290
Typical · median -0.290
Weight (kg)
21.5
Strong · 2.5 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The Ulica Solar TOPCon (N-type) 460-475W series is a range of monocrystalline modules designed to maximize energy yield from the same roof or ground area. The use of N-type TOPCon cells results in more stable operation at high temperatures and reduced susceptibility to typical degradation mechanisms, ensuring that the installation maintains high productivity for longer. This is a practical solution for limited space - where every square meter counts, this series allows for increased production without the need for additional modules.

Another key feature is the carefully designed construction for demanding conditions: a robust frame and components of high-quality, as well as high mechanical strength, which is essential for snow and wind loads. The modules offer long warranties and predictable performance over time, making it easier to calculate the overall cost-effectiveness.

This is a good choice for premium home installations, businesses, and service facilities, where high efficiency, reliability, and low energy costs throughout the system's lifespan are key.

Ranking

1,089 panels in the segment TOPCon 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.54% 22.52% Typical 3,920
Power density 225.4 225.2 Typical 3,974
Temperature coefficient -0.290 -0.290 Typical 2,165
Weight per kWp 46.7 52.2 Strong · top 20% 1,324
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

1 positive · 0 caution
Best for

Residential, commercial and hot-climate.

Strengths
46.7 kg per kWp

Top 20% of the TOPCon 450-500 W segment, against a median of 52.2.

Notes from the database
  • At 22.5% efficiency, this panel is on par with typical TOPCon 450-500W modules
  • Power density of 225.4 W/m² matches the TOPCon 450-500W median
  • At -0.29%/°C, hot weather performance is typical for TOPCon 450-500W panels
  • Weight of 21.5 kg (2.5 kg below TOPCon 450-500W median of 24.0 kg) allows easier transport and roof mounting
  • In the top 28% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 460 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.54 % Typical Segment median 22.52%
Vmpp · Impp 33.22 V · 13.85 A Operating point at max power
Voc · Isc 39.78 V · 14.58 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1800×1134×30 mm · 2.04 m² of roof
Weight 21.5 kg Strong Strong · 2.5 kg below median
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.290 %/°C Typical median -0.290 of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 43 °C At 800 W/m², 20 °C ambient
Product warranty 15 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 402 W guaranteed
Degradation 0.40 % Per year after the first

Datasheet charts

Open datasheet PDF

Measured curves published by Ulica Solar in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 460 Wp appear here. The rest cover the whole series.

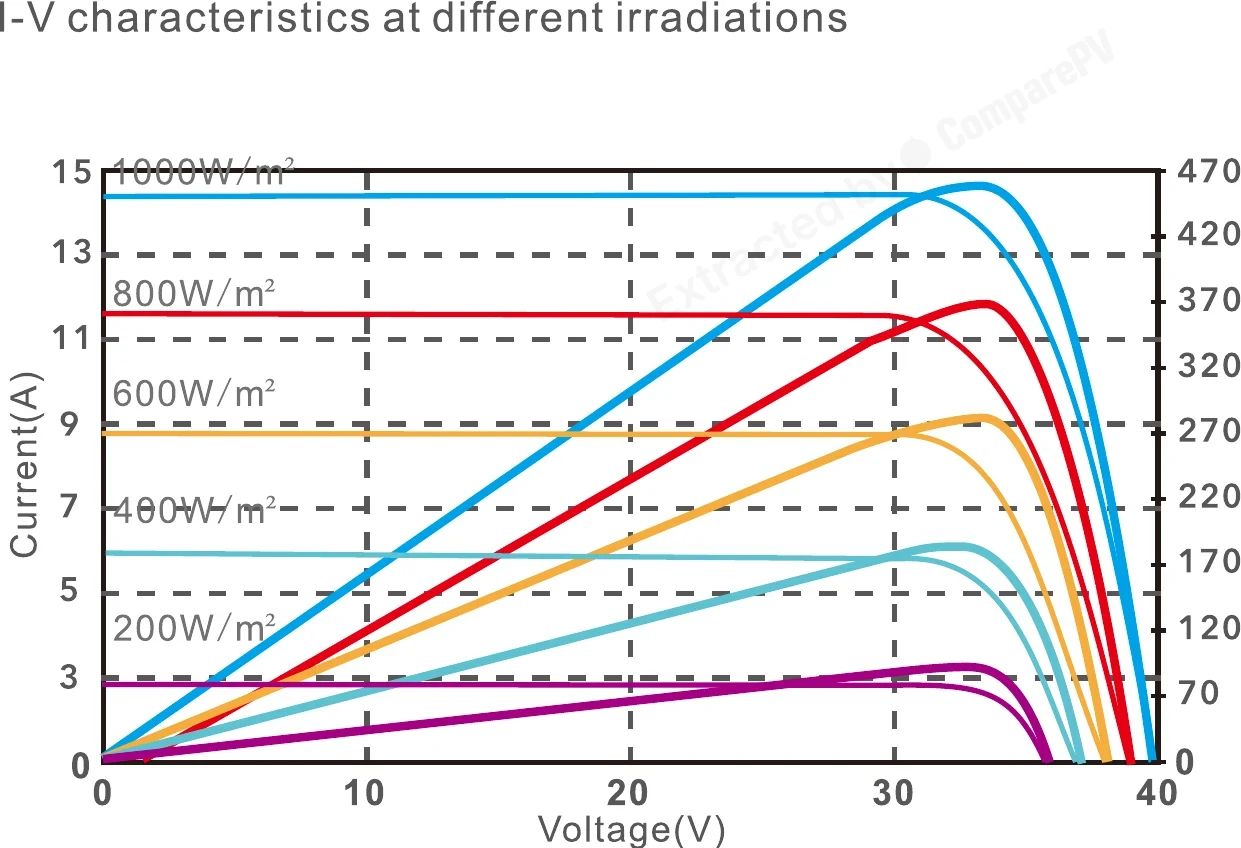

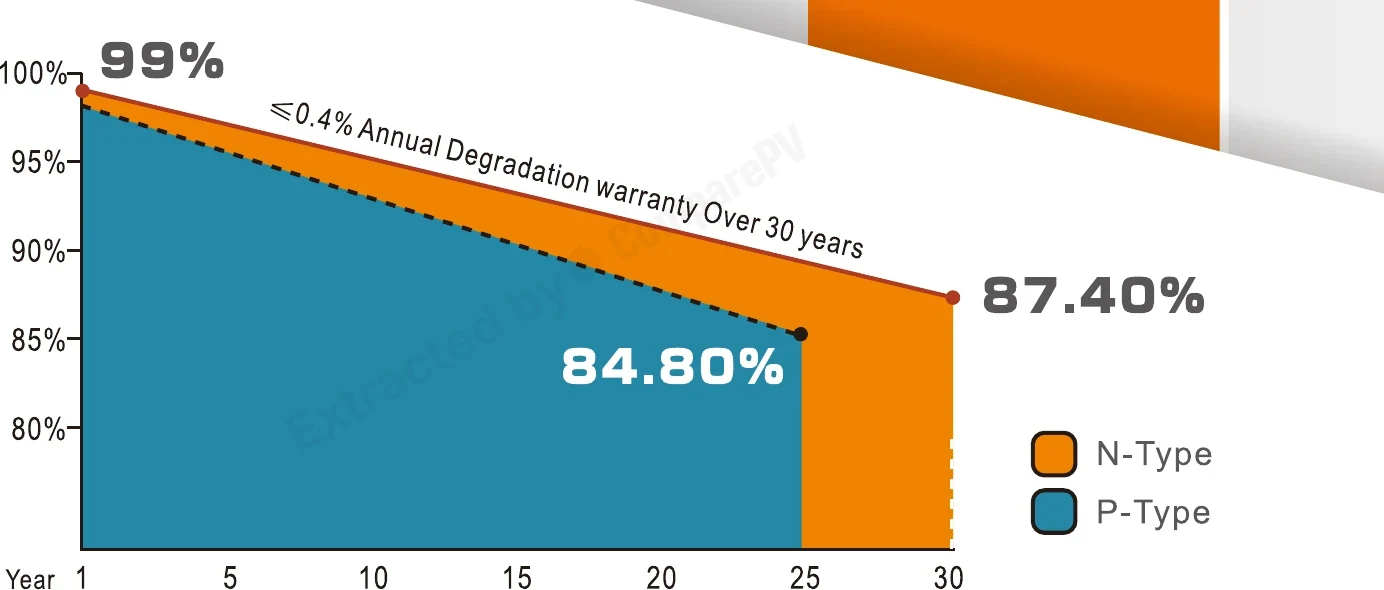

30-year Linear Power Degradation Warranty (N-Type vs P-Type) 30-year Linear Power Degradation Warranty (N-Type vs P-Type) Whole series I-V characteristics at different irradiations I-V characteristics at different irradiations Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.290 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Ulica Solar UL-460M-108CHVN 460 W 22.54% -0.290 21.5 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +50 W, cooler, +2.5 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +35 W, cooler, +2.3 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +45 W, cooler, +2.2 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +30 W, cooler, +2.0 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +40 W, cooler, +2.0 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +40 W, cooler, +2.0 pp
UL-465M-108CHVN 465 W 22.78% -0.290 21.5 kg +0.2 pp
UL-470M-108CHVN 470 W 23.03% -0.290 21.5 kg +10 W, +0.5 pp
UL-475M-108CHVN 475 W 23.27% -0.290 21.5 kg +15 W, +0.7 pp

Found 197 panels of the same or similar size to this one, within ±10 mm. See them here Found 201 panels of the same or similar size to this one, within ±25 mm. See them here Found 1712 panels of the same or similar size to this one, within ±50 mm. See them here Found 4014 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What is TOPCon technology and how does it differ from classic PERC cells?
TOPCon (Tunnel Oxide Passivated Contact) is an N-type cell technology where a thin tunnel oxide and doped silicon layer reduce energy losses on the rear side of the cell. Compared to popular P-type PERC cells, this results in higher conversion efficiency, a smaller power drop at high temperatures, and slower degradation over time. In the Ulica Solar 460-475W series, this means more energy yield from the same roof area compared to equivalent PERC modules.
What warranty comes with the Ulica Solar TOPCon 460-475W series?
The manufacturer offers a 15-year product warranty covering material and workmanship defects, plus a 30-year power output warranty guaranteeing a minimum energy production level over that period. This warranty structure is typical for modern N-type modules and helps investors calculate return on investment over several decades, since power degradation over time is predictable and contractually guaranteed.
Are Ulica Solar TOPCon 460-475W panels a good fit for limited roof space?
Yes, that's one of this series' main strengths. Up to 475 Wp per module means the same number of panels generates more energy than older, lower-power models. For roofs with a fixed maximum number of panels due to space constraints, this lets you increase total system output without expanding the mounting area.
Do Ulica Solar TOPCon modules perform well in high summer temperatures?
Yes, one of the key advantages of N-type TOPCon technology over traditional P-type cells is a lower temperature coefficient of power, meaning a smaller efficiency drop during heat waves. In practice, this means the system loses less power on hot, sunny days compared to older PERC panels, resulting in higher real-world energy yield during summer months when irradiance is highest.
Is Ulica Solar a tier 1 manufacturer, and does that matter when choosing panels?
Ulica Solar is not currently on the BloombergNEF tier 1 list, a classification that mainly reflects the scale of bank financing rather than technical product quality. The company is headquartered in China with years of experience manufacturing PV modules. Tier 1 status tends to matter most for large commercial projects financed by bank loans, while for residential or business installations, technical parameters, certifications, and warranty terms are typically more relevant.
Are the Ulica Solar TOPCon 460-475W panels bifacial?
No, this specific series consists of monofacial modules optimized for maximum power output from the front side only. They do not capture additional reflected light on the rear side, unlike bifacial modules. This is standard for typical roof-mounted installations, where the rear side of the panel has no exposure to reflected light anyway, so bifacial technology wouldn't provide extra benefit.
