Sunpro Power Brand review

SPDG500-N120R10

500 Wp TOPCon Bifacial 1500%

68 of 100

ComparePV verdict

Middle of its segment, weak in heat

Rank 4,457 of 14,005

Compare panels Datasheet PDF

Power (Wp)

500

Weak · bottom 10%

Efficiency (%)

22.55

Typical · median 22.73%

Density (Wp/m²)

225.5

Typical · median 227.4

Temp (%/°C)

-0.300

Weak · bottom 20%

Weight (kg)

26.5

Typical · median 27.0 kg

Warranty (yrs)

Typical · median 30 yrs

The Sunpro SPDG (485/500W)-N120R10 series utilizes N-type TOPCon cell technology, which redefines performance standards in modern photovoltaic installations. A key differentiator of these modules is the use of rectangular cells, allowing for maximum utilization of the panel surface and achieving higher power density while maintaining compact dimensions. The advanced bifacial double glass design ensures the panels generate energy from both sides, which is particularly beneficial in installations with a high albedo coefficient, such as roofs covered with a light membrane or ground-mounted systems. Thanks to the elimination of LID and a low temperature coefficient, this series guarantees stable power production even on hot days and in low sunlight. Choosing these modules solves the problem of limited installation space, offering higher resistance to micro-cracks and extreme weather conditions. This solution is dedicated to investors seeking maximum return on investment in the commercial and industrial sectors, where technical quality and long-term reliability are essential. Sunpro stands out from the competition with minimal linear degradation, which translates into real profits throughout the power plant's life cycle. The double tempered glass used further enhances fire safety, making this series one of the safest choices currently available on the Polish market.

Ranking

432 panels in the segment TOPCon 500-550 W

Metric This panel Median Position in segment Overall rank

Module efficiency 22.55% 22.73% Typical 3,905

Power density 225.5 227.4 Typical 3,882

Temperature coefficient -0.300 -0.290 Weak · bottom 20% 6,093

Weight per kWp 53.0 52.4 Typical 6,725

Performance warranty 30 yrs 30 yrs Typical 21

Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 1 caution

Best for

Commercial and hot-climate.

Not ideal for

Hot climates.

Watch-outs

-0.300 %/°C temperature coefficient

Bottom 20% of the TOPCon 500-550 W segment, against a median of -0.290.

Notes from the database

Efficiency of 22.6% matches the TOPCon 500-550W median
Power density of 225.5 W/m² matches the TOPCon 500-550W median
Temperature coefficient of -0.30%/°C matches the TOPCon 500-550W median
Ranked #3905 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF

Nominal power (Pmax) 500 Wp Nameplate at 1000 W/m², 25 °C

Module efficiency 22.55 % Typical Segment median 22.73%

Vmpp · Impp 36.53 V · 13.69 A Operating point at max power

Voc · Isc 43.87 V · 14.25 A Sizes the string length

Max system voltage 1500 V Longer strings than 1000 V modules

Dimensions 1955×1134×30 mm · 2.22 m² of roof

Weight 26.5 kg Typical Typical · median 27.0 kg

Cells 120 · TOPCon Monocrystalline

Bifaciality 1500 % Rear output as a share of front

Coefficient Pmax -0.300 %/°C Weak bottom 20% of its segment

Coefficient Voc · Isc -0.250 · 0.046 %/°C

NOCT 45 °C At 800 W/m², 20 °C ambient

Product warranty 25 years Hardware defects only

Performance warranty 30 years Typical median 30 yrs · median 30 yrs

End-of-warranty output 87.4 % Equals 437 W guaranteed

Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by Sunpro Power in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 500 Wp appear here. The rest cover the whole series.

30-Year Power Warranty Degradation: SUNPRO TOPCon Module vs Common Module Whole series

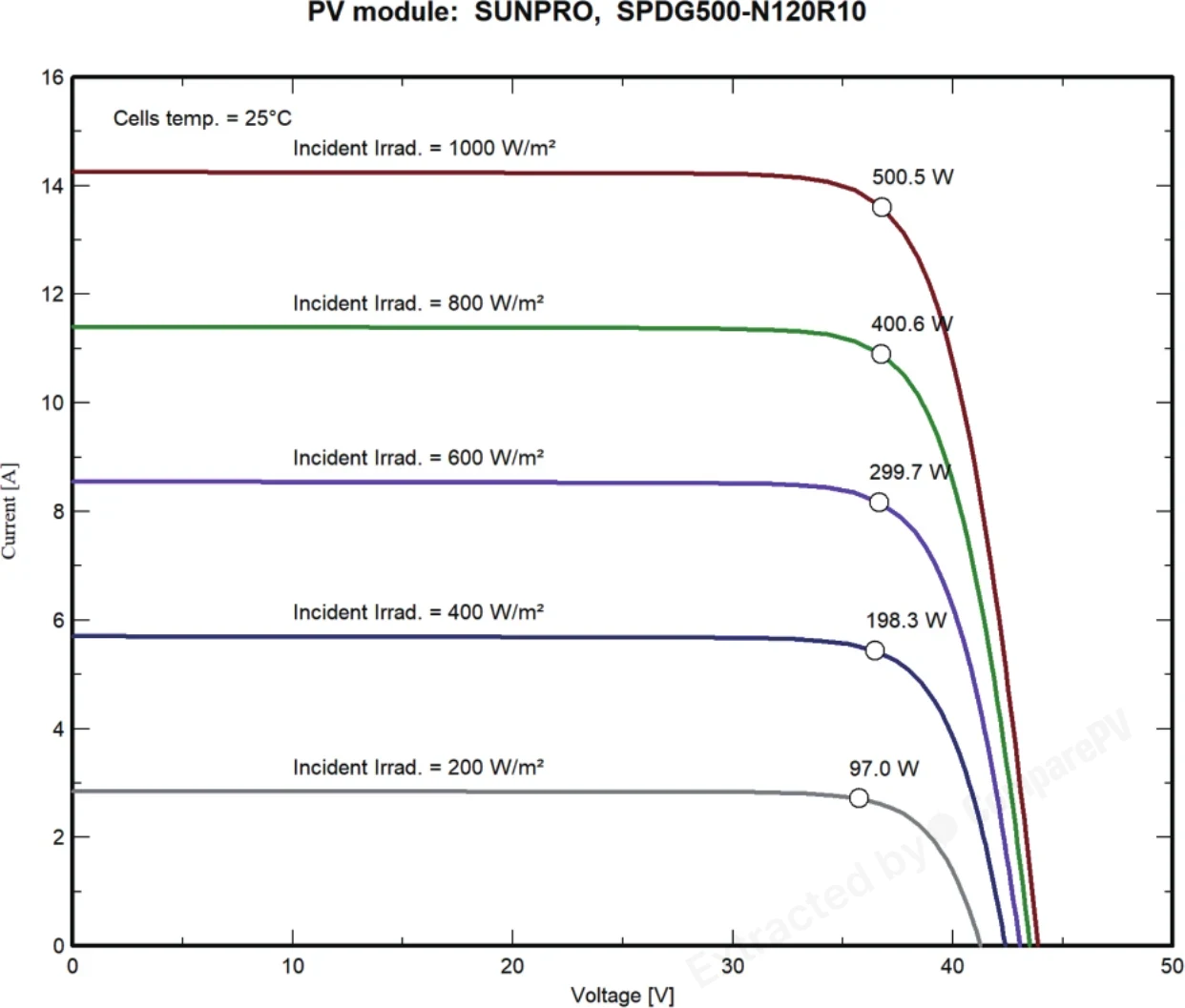

I-V Characteristics at Different Irradiance - PV module: SUNPRO, SPDG500-N120R10 500 W

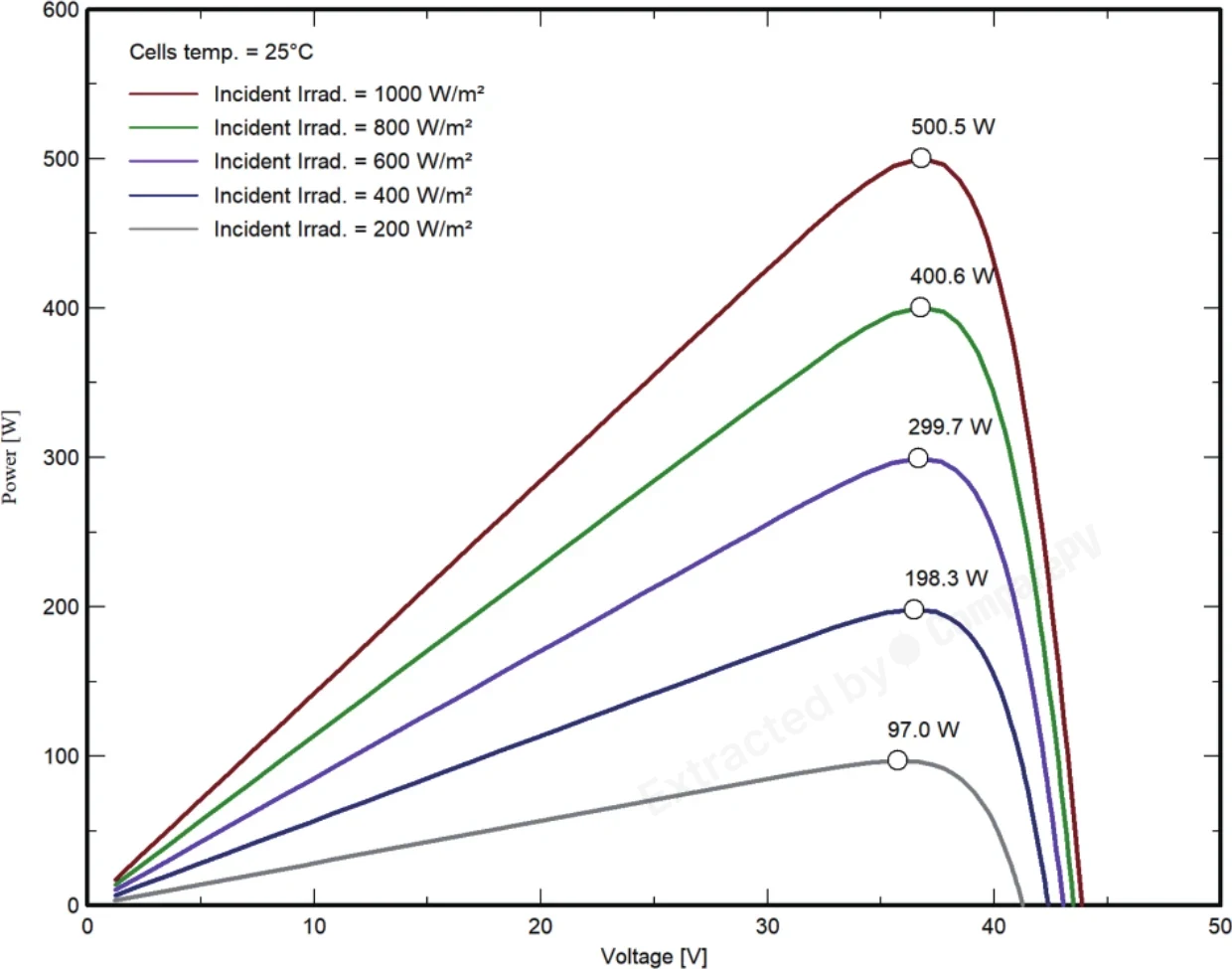

P-V Characteristics at Different Irradiance - PV module: SUNPRO, SPDG500-N120R10 500 W

Simulations

Live - change any input

Lifetime output & value

30 years at 1200 kWh/kWp/year and €0.50 per kWh

Power in year 30

Lifetime energy

Energy value

With bifacial gain

Irradiance Energy price Price inflation 0%/yr

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses

-0.300 %/°C against a segment median of -0.290

Try your own cell temperature (°C) 60° · - · -

Bifacial gain

Rear gain over light concrete: -

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Alternatives

All Sunpro Power panels See 12 Sunpro Power offers

Filter these Similar power Same cell type Same manufacturer

Size Any ±10 mm ±25 mm ±50 mm ±100 mm

Panel Power Eff. Temp. Weight Difference

Sunpro Power SPDG500-N120R10 500 W 22.55% -0.300 26.5 kg You are here

LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, lighter, +2.4 pp

AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +2.2 pp

LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, lighter, +2.1 pp

AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, lighter, +1.9 pp

LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, lighter, +1.9 pp

CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg Cooler, lighter, +1.9 pp

SPDG485-N120R10 485 W 21.88% -0.300 26.5 kg -15 W, -0.7 pp

SPDG490-N120R10 490 W 22.10% -0.300 26.5 kg -10 W, -0.4 pp

SPDG495-N120R10 495 W 22.33% -0.300 26.5 kg -0.2 pp

SPDG500-N108R12 500 W 22.50% -0.300 26.6 kg Very close match

SPDG505-N108R12 505 W 22.72% -0.300 26.6 kg Very close match

SPDG510-N108R12 510 W 22.95% -0.300 26.6 kg +10 W, +0.4 pp

SPDG515-N108R12 515 W 23.17% -0.300 26.6 kg +15 W, +0.6 pp

LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +60 W, cooler, +2.2 pp

LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +55 W, cooler, +2.1 pp

LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +50 W, lighter, +1.8 pp

Found 488 panels of the same or similar size to this one, within ±10 mm. See them here Found 512 panels of the same or similar size to this one, within ±25 mm. See them here Found 1080 panels of the same or similar size to this one, within ±50 mm. See them here Found 1471 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered

How does the Sunpro SPDG N-type TOPCon series differ from standard P-type PERC panels?

The N-type TOPCon cells used in the SPDG series have a lower degradation rate and better high-temperature response than conventional PERC cells. This means the panel loses less power on hot days and in its first year of operation, with a more stable output decline in subsequent years. In practice, this results in higher real energy yield over the full 30-year power warranty period.

Are the Sunpro SPDG (485/500W)-N120R10 panels suitable for ground-mount installations and flat roofs with light-colored surfaces?

Yes, this is one of the best applications for this series thanks to its bifacial double-glass construction. The panels generate additional energy on the rear side by capturing light reflected from the ground. Ground-mount systems and flat roofs covered with a light roofing membrane (high albedo coefficient) can achieve several to over a dozen percent additional output compared to a standard monofacial panel.

What warranty comes with the Sunpro SPDG N120R10 panels and what does it cover?

The manufacturer provides a 25-year product warranty and a 30-year linear power output warranty. The product warranty covers material and workmanship defects, while the power warranty guarantees a defined minimum percentage of nominal output over the years of operation. This is one of the longer coverage periods currently available on the solar module market.

Do the Sunpro SPDG panels perform well in low temperatures and low irradiance conditions?

Yes, the TOPCon technology used in this series features a low temperature coefficient of power, meaning a smaller output drop as operating temperature rises. Additionally, N-type cells respond well to diffuse and weaker light, allowing the panels to produce energy efficiently on cloudy days and in cooler climates.

Is Sunpro a Tier 1 manufacturer, and is it worth investing in Chinese-made panels for a commercial installation?

Sunpro Power holds Tier 1 manufacturer status, confirming financial stability and production compliance with rigorous quality standards. For commercial and industrial installations, this means lower risk regarding long-term warranty servicing. Large-scale Chinese manufacturing also keeps the price competitive while maintaining certified technical parameters.

What protection against mechanical damage and fire does the SPDG N120R10 series offer?

The panels use double tempered glass on both sides of the module, significantly increasing resistance to cell microcracks, hail, and mechanical loads compared to a standard backsheet construction. Double glass also has a better fire resistance class, making this series one of the safer choices for public buildings and industrial facilities.
