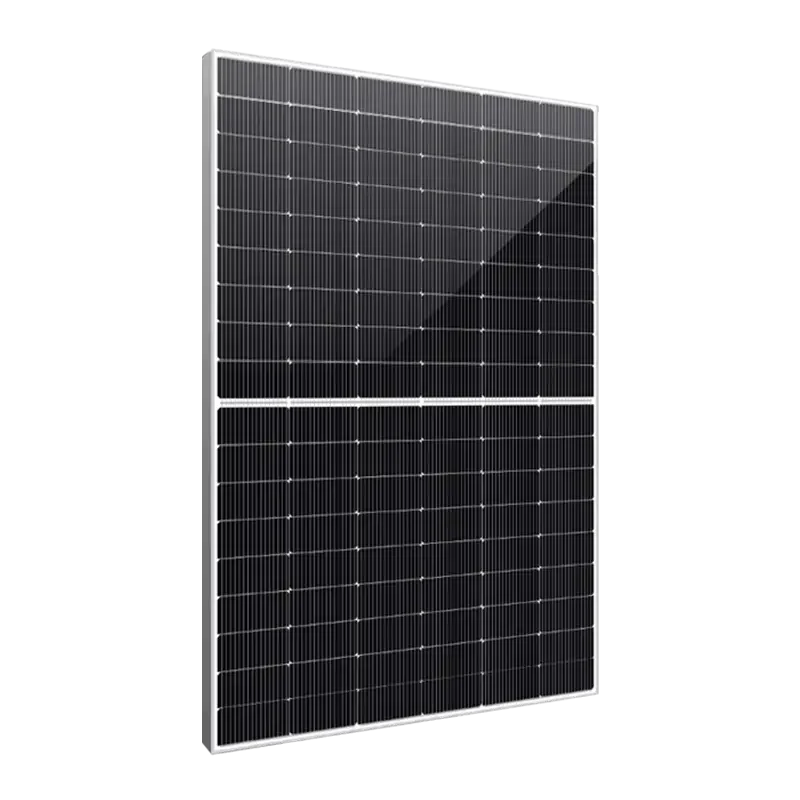

Sunpro Power SPDG490-N120M10
Sunpro Power Brand review

SPDG490-N120M10

490 Wp TOPCon
ComparePV verdict

Middle of its segment, weak in heat

Rank 4,722 of 14,005
Compare panels Datasheet PDF
Power (Wp)
490
Strong · top 12%
Efficiency (%)
22.62
Typical · median 22.52%
Density (Wp/m²)
226.2
Typical · median 225.2
Temp (%/°C)
-0.300
Weak · bottom 20%
Weight (kg)
26.0
Typical · median 24.0 kg
Warranty (yrs)
30
Typical · median 30 yrs

The Sunpro TOPCon 182 BIFACIAL series is an advanced solution based on N-type cells that redefines performance standards in the variable Polish climate. Thanks to the use of bifacial (double-sided) technology, these panels generate additional energy from radiation reflected from the ground, which significantly increases the total yield from every square meter of the installation. The use of 182-millimeter silicon wafers in combination with modern TOPCon architecture allows for achieving higher efficiency in low light, which is crucial in Polish conditions during autumn-winter periods. This solution effectively minimizes the problem of light-induced degradation, offering parameter stability for many years of intensive use. These modules are an ideal choice for professional investors focused on maximizing profits from photovoltaic farms and large commercial ground-mounted systems. Unlike standard older-generation cells, this series is characterized by a lower temperature coefficient, which directly translates to smaller energy losses during summer heatwaves. The innovative double-glass design provides exceptional resistance to extreme weather conditions and micro-cracks, which clearly distinguishes this product from the competition. It is a substantive response to the needs of a market seeking to optimize the Levelized Cost of Energy (LCOE) while maintaining the highest standards of durability.

Ranking

1,089 panels in the segment TOPCon 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.62% 22.52% Typical 3,635
Power density 226.2 225.2 Typical 3,672
Temperature coefficient -0.300 -0.290 Weak · bottom 20% 6,093
Weight per kWp 53.1 52.2 Typical 6,818
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

0 positive · 1 caution
Best for

Utility-scale and hot-climate.

Not ideal for

Hot climates.

Watch-outs
-0.300 %/°C temperature coefficient

Bottom 20% of the TOPCon 450-500 W segment, against a median of -0.290.

Notes from the database
  • At 22.6% efficiency, this panel is on par with typical TOPCon 450-500W modules
  • Power density of 226.2 W/m² matches the TOPCon 450-500W median
  • Temperature coefficient of -0.30%/°C matches the TOPCon 450-500W median
  • At 26.0 kg, this panel is 2.0 kg heavier than the TOPCon 450-500W median (24.0 kg) - more demanding for installation crews
  • Ranked #3635 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 490 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.62 % Typical Segment median 22.52%
Vmpp · Impp 35.66 V · 13.75 A Operating point at max power
Voc · Isc 43.06 V · 14.47 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1910×1134×35 mm · 2.17 m² of roof
Weight 26.0 kg Typical Typical · median 24.0 kg
Cells 120 · TOPCon Monocrystalline
Coefficient Pmax -0.300 %/°C Weak bottom 20% of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 428 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
Sunpro Power SPDG490-N120M10 490 W 22.62% -0.300 26.0 kg You are here
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg Cooler, lighter, +2.4 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg Cooler, lighter, +2.2 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg Cooler, lighter, +2.1 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg Cooler, lighter, +1.9 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg Cooler, lighter, +1.9 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg Cooler, lighter, +1.9 pp
SPDG480-N120M10 480 W 22.16% -0.300 26.0 kg -10 W, -0.5 pp
SPDG485-N120M10 485 W 22.39% -0.300 26.0 kg -0.2 pp
SPDG495-N120M10 495 W 22.85% -0.300 26.0 kg +0.2 pp
SPDG500-N120M10 500 W 23.08% -0.300 26.0 kg +10 W, +0.5 pp
LR7-60HVH-560M 560 W 24.80% -0.260 25.0 kg +70 W, cooler, +2.2 pp
LR7-60HVH-555M 555 W 24.60% -0.260 25.0 kg +65 W, cooler, +2.0 pp
LR7-60HVHL-550M 550 W 24.40% -0.260 16.3 kg +60 W, lighter, +1.8 pp
JAT60S40-540/LR 540 W 24.40% -0.260 23.5 kg +50 W, cooler, +1.8 pp
GK-5-60HG-540M 540 W 24.40% -0.260 23.3 kg +50 W, cooler, +1.8 pp
JKM545-54QL6-DV-F1-EU 545 W 24.27% -0.260 27.5 kg +55 W, cooler, +1.6 pp

Found 751 panels of the same or similar size to this one, within ±10 mm. See them here Found 755 panels of the same or similar size to this one, within ±25 mm. See them here Found 1049 panels of the same or similar size to this one, within ±50 mm. See them here Found 1503 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
How much extra power does bifacial technology add in Sunpro TOPCon 182 panels?
The bifacial modules in the TOPCon 182 BIFACIAL series generate additional current from the rear side thanks to light reflected off the ground. In practice, with a high-albedo surface such as white gravel or reflective film, and ground-mount installation, energy yield can increase by 5-15% compared to a standard monofacial panel of the same 600 Wp nominal power.
What warranty do Sunpro TOPCon 182 BIFACIAL panels come with?
The manufacturer offers a 25-year product warranty covering material and workmanship defects, plus a 30-year power performance warranty. This means the module should still deliver a significant share of its original output after that period, providing solid protection for investments in commercial installations and utility-scale PV farms.
Are TOPCon 182 BIFACIAL panels suitable for ground-mounted PV farms?
Yes, the double-glass construction combined with bifacial technology makes this series a strong choice for large ground-mount and commercial installations. Panels elevated above the ground capture reflected light on both sides, which, given adequate terrain albedo, meaningfully increases energy output per square meter compared to sloped-roof mounting.
Do Sunpro TOPCon 182 panels perform well in Polish winter conditions?
Yes, N-type TOPCon cells deliver higher efficiency in low-light conditions, which matters during Polish autumn and winter when solar irradiance is limited. Additionally, the low temperature coefficient benefits performance in summer as well, reducing power losses when module temperatures rise.
How does TOPCon technology differ from older PERC cells in this series?
TOPCon (Tunnel Oxide Passivated Contact) uses N-type cells with an additional passivation layer that reduces recombination losses and light-induced degradation (LID), common in older P-type PERC cells. The result is higher initial efficiency, better low-light performance, and more stable power output over many years of operation.
Is the double-glass construction in TOPCon 182 BIFACIAL panels more durable than a standard panel?
Yes, using two layers of glass instead of glass and a rear backsheet significantly improves resistance to microcracks, moisture ingress, and extreme weather such as hail or large temperature swings. This build quality extends module lifespan and supports the long-term 30-year power warranty.
