455Wp

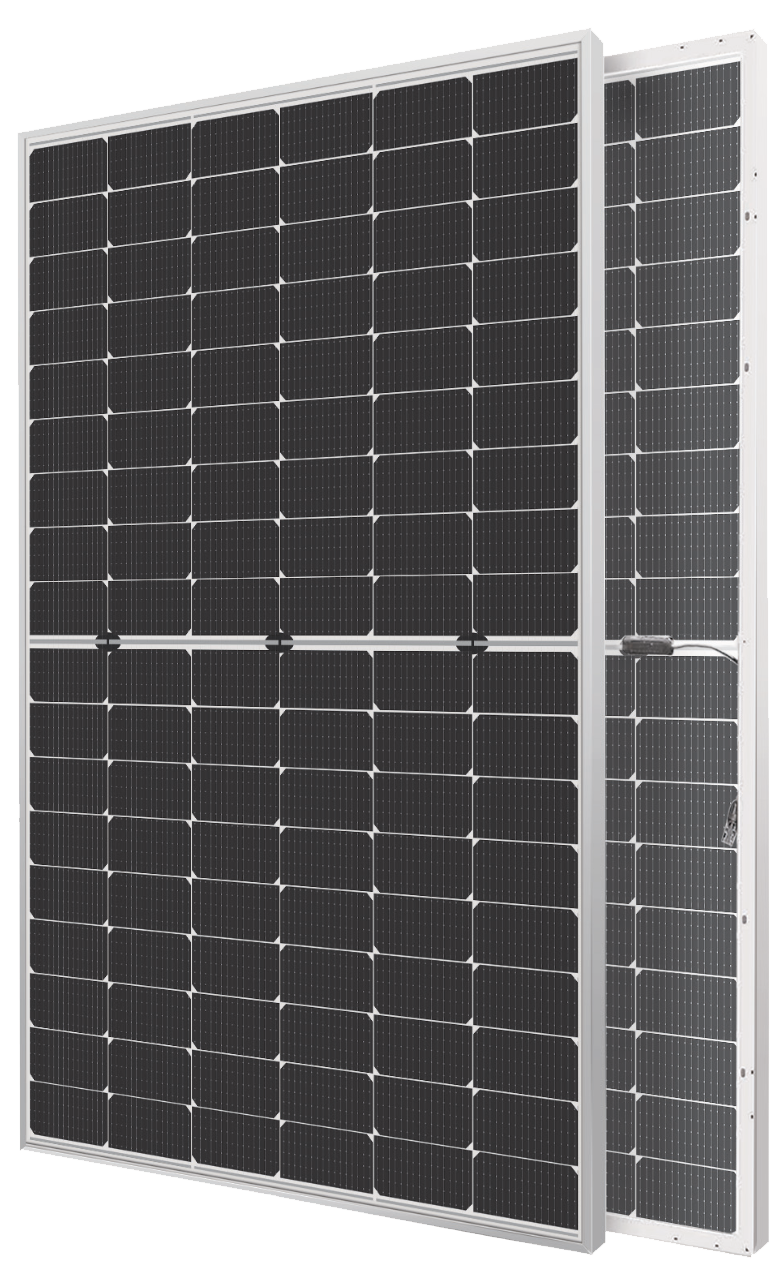

Recom RCM-455-RDBNAA
Recom Review

RCM-455-RDBNAA

MonocrystallineBifacial
Datasheet
22.77%
Efficiency
227.7 Wp/m²
Power Density
-0.280%/°C
Temp. Coeff. Pmax chart
398W from 455W
Power after 30 years
Smart Insights (data-driven)
  • Efficiency of 22.8% matches the TOPCon 450-500W median
  • Power density of 227.7 W/m² matches the TOPCon 450-500W median
  • At -0.28%/°C, hot weather performance is typical for TOPCon 450-500W panels
  • 21.0 kg weight - 3.0 kg lighter than TOPCon 450-500W median (24.0 kg), reducing installation effort
  • 80% bifaciality enables rear-side power generation, boosting yield by 4-12% on reflective surfaces
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series Lynx 25 variants
Efficiency Range 22.0% - 23.7%
Avg. Efficiency 22.86%
Technology TOPCon
Dimensions 1762 × 1134 mm
Show series description

The Recom Lynx series consists of modules based on N-type cells in TOPCon technology, designed for high energy production and stable operation over many years. This translates to better performance in real-world conditions, especially when the installation heats up in summer or operates in full sunlight for extended periods. A key advantage of this series is minimal susceptibility to LID degradation and limited LeTID risk, which helps maintain predictable results and protect the investment's profitability.

Bifacial modules utilize light from both the front and back sides, and the glass-glass construction increases resistance to weather and mechanical stresses. An additional advantage is quality control through electroluminescence testing, which supports the detection of microcracks during production.

Recom Lynx is suitable for both commercial and industrial installations, as well as larger ground-mounted projects, wherever long-term reliability, low energy costs, and maximum utilization of available space are important.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)455 Wp
Module Efficiency22.77%
Voltage at Max Power (Vmpp)30.00 V
Current at Max Power (Impp)15.17 A
Open Circuit Voltage (Voc)35.70 V
Short Circuit Current (Isc)16.10 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.280%/°C
Temp. Coeff. Voc-0.230%/°C
Temp. Coeff. Isc0.045%/°C
NOCT44°C
Cell Technology
Cell TypeMonocrystalline
Cell Count240
BifacialYes
Bifaciality Factor80%
Dimensions & Weight
Length1762 mm
Width1134 mm
Height30 mm
Weight21.0 kg
Area2.00 m²
Power Density227.7 Wp/m²
Warranty
Product Warranty30 years
Performance Warranty30 years
End-of-Warranty Output87.4%
First Year Degradation1.00%
Annual Degradation0.40%/year
Key Specifications
22.77%
Efficiency
455 Wp
Power
-0.28%/°C
Temp Coeff
30 yrs
Warranty
