LEDVANCE Brand review

M450N54LB-SF-F7

450 Wp TOPCon Bifacial 100%
ComparePV verdict

Middle of its segment, weak in heat

Rank 6,195 of 14,005
Compare panels Datasheet PDF
Power (Wp)
450
Weak · bottom 9%
Efficiency (%)
22.52
Typical · median 22.52%
Density (Wp/m²)
225.2
Typical · median 225.2
Temp (%/°C)
-0.300
Weak · bottom 20%
Weight (kg)
24.5
Weak · bottom 23%
Warranty (yrs)
30
Typical · median 30 yrs

The LEDVANCE M435~455N54LB-SF-F7 series are modules engineered to maximize energy yield on limited roof surfaces - where every square meter counts. The application of N-type cells in TOPCon technology helps maintain high operational efficiency even under challenging temperature conditions and variable sunlight, translating to a more stable annual yield. This is also thanks to the bifacial design, enabling the module to utilize light reflected from the ground - a practical advantage on light-colored roofs, carports, and ground-mounted systems.

A key feature of the series is also its extended warranty coverage, facilitating long-term investment planning, and high operational durability due to high-quality materials and meticulously engineered lamination. These panels are an excellent choice for installers and investors seeking premium-grade modules for homes, businesses, and commercial projects, where predictable returns and longevity are prioritized over compromises.

Ranking

1,089 panels in the segment TOPCon 450-500 W
Metric This panel Median Position in segment Overall rank
Module efficiency 22.52% 22.52% Typical 4,108
Power density 225.2 225.2 Typical 4,225
Temperature coefficient -0.300 -0.290 Weak · bottom 20% 6,093
Weight per kWp 54.4 52.2 Weak · bottom 23% 8,755
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

5 positive · 4 caution
Best for

Residential and commercial.

Not ideal for

Hot climates and weight-limited structures.

Watch-outs
-0.300 %/°C temperature coefficient

Bottom 20% of the TOPCon 450-500 W segment, against a median of -0.290.

54.4 kg per kWp

Bottom 23% of the TOPCon 450-500 W segment, against a median of 52.2.

What owners get
N-type TOPCon cells with high efficiency

Module efficiency up to 22.77% places the series near the top of the segment, comparable to Sunlike Solar SKT420~455M10-108D6 (22.8%) and IBC Solar LS-TA2 (22.8%), and clearly above Waaree ARKA (20.93%). N-type TOPCon technology delivers lower LID/LeTID degradation and better high-temperature performance than legacy PERC cells.

Bifacial design boosting energy yield

The double-sided construction captures light reflected from the ground surface, a practical advantage on bright roofs, carports, and ground-mount installations - a realistic gain of a few extra percent depending on ground albedo.

Long product and power warranty (25/30 years)

A 25-year product warranty combined with a 30-year linear power warranty simplifies long-term investment planning and compares favorably to many competing series that offer a standard 25-year power warranty with a lower guaranteed end-of-life output.

Current-generation technology platform

Launched in 2024, the series is built on the current N-type TOPCon cell generation rather than the aging PERC technology, resulting in a better power temperature coefficient and smaller output loss on hot days.

Power range suited to space-constrained roofs

A power range of 435 to 455 Wp in a 54-cell format helps maximize energy yield on limited roof area, which matters for projects with constrained installation space.

Trade-offs
Not a BNEF Tier 1 manufacturer

According to the BNEF Tier 1 Solar Module Manufacturers list (Q2 2026, 42 manufacturers including Jinko Solar, LONGi, Trina Solar, JA Solar, Tongwei), LEDVANCE is not included, which may limit project bankability for bank financing compared to Tier-1 brands such as IBC Solar.

Short track record as a PV module manufacturer

LEDVANCE was founded in 2016 as a lighting-focused OSRAM spin-off (OSRAM/SYLVANIA brands) and has been owned by China's MLS Group since 2018; its PV segment (Ledvance Renewables) is a comparatively new business line, lacking the multi-year manufacturing track record typical of dedicated PV brands.

Notes from the database
  • Efficiency of 22.5% matches the TOPCon 450-500W median
  • Power density of 225.2 W/m² matches the TOPCon 450-500W median
  • At -0.30%/°C, hot weather performance is typical for TOPCon 450-500W panels
  • Bifacial design (100% factor) captures reflected light - adds 5-15% yield on ground-mount or white roof
  • In the top 29% for efficiency among all TOPCon panels

Specifications

Open datasheet PDF
Nominal power (Pmax) 450 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 22.52 % Typical Segment median 22.52%
Vmpp · Impp 30.09 V · 14.97 A Operating point at max power
Voc · Isc 35.20 V · 16.04 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 24.5 kg Weak Weak · bottom 23%
Cells 96 · TOPCon Monocrystalline
Bifaciality 100 % Rear output as a share of front
Coefficient Pmax -0.300 %/°C Weak bottom 20% of its segment
Coefficient Voc · Isc -0.250 · 0.046 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 25 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 393 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Datasheet charts

Open datasheet PDF

Measured curves published by LEDVANCE in this model's datasheet. A chart carrying a wattage was measured on that variant alone - only the ones that describe 450 Wp appear here. The rest cover the whole series.

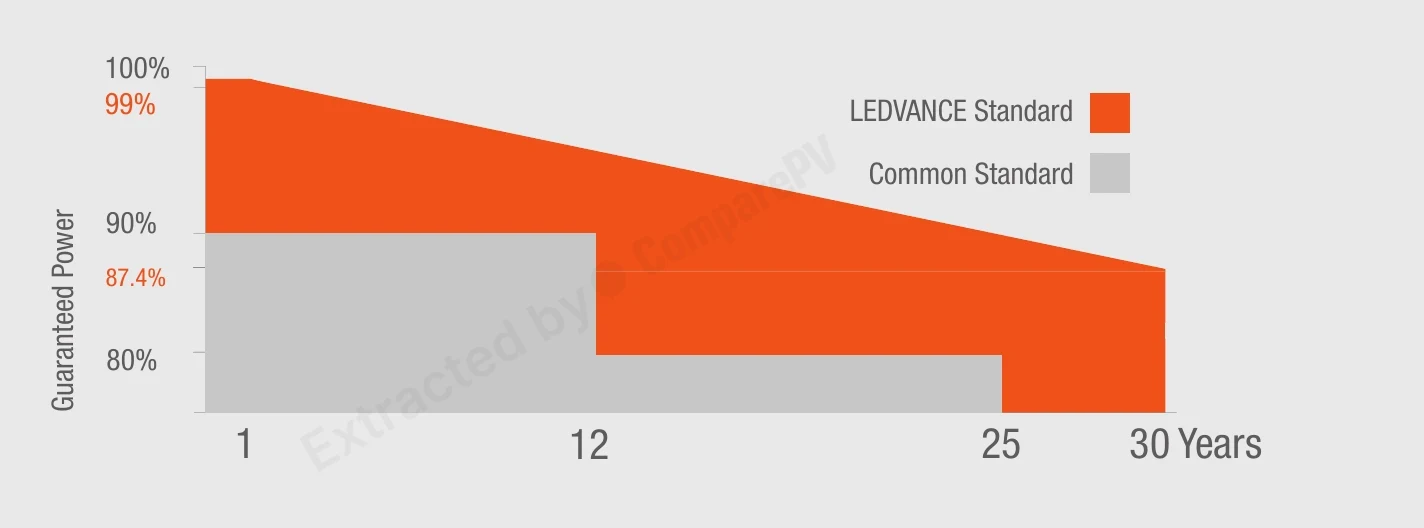

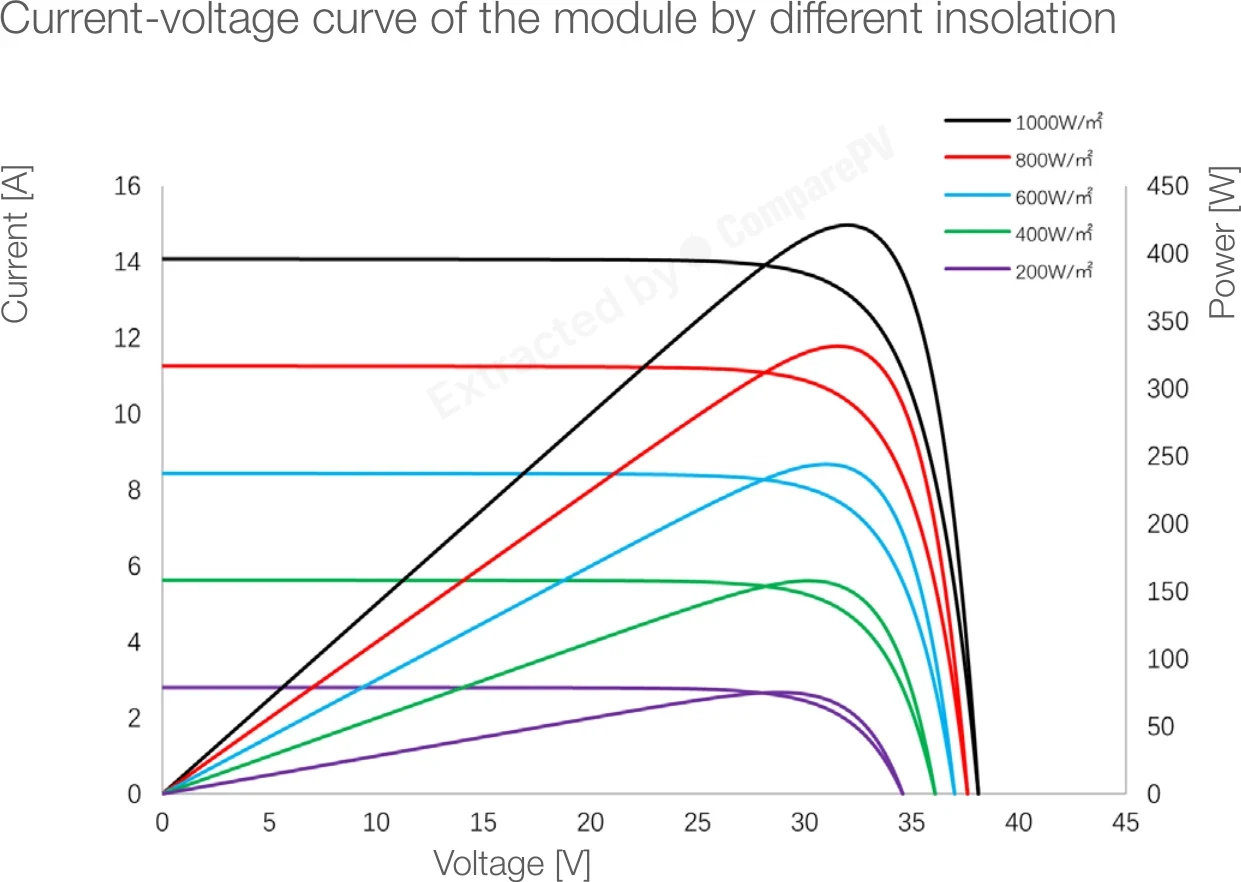

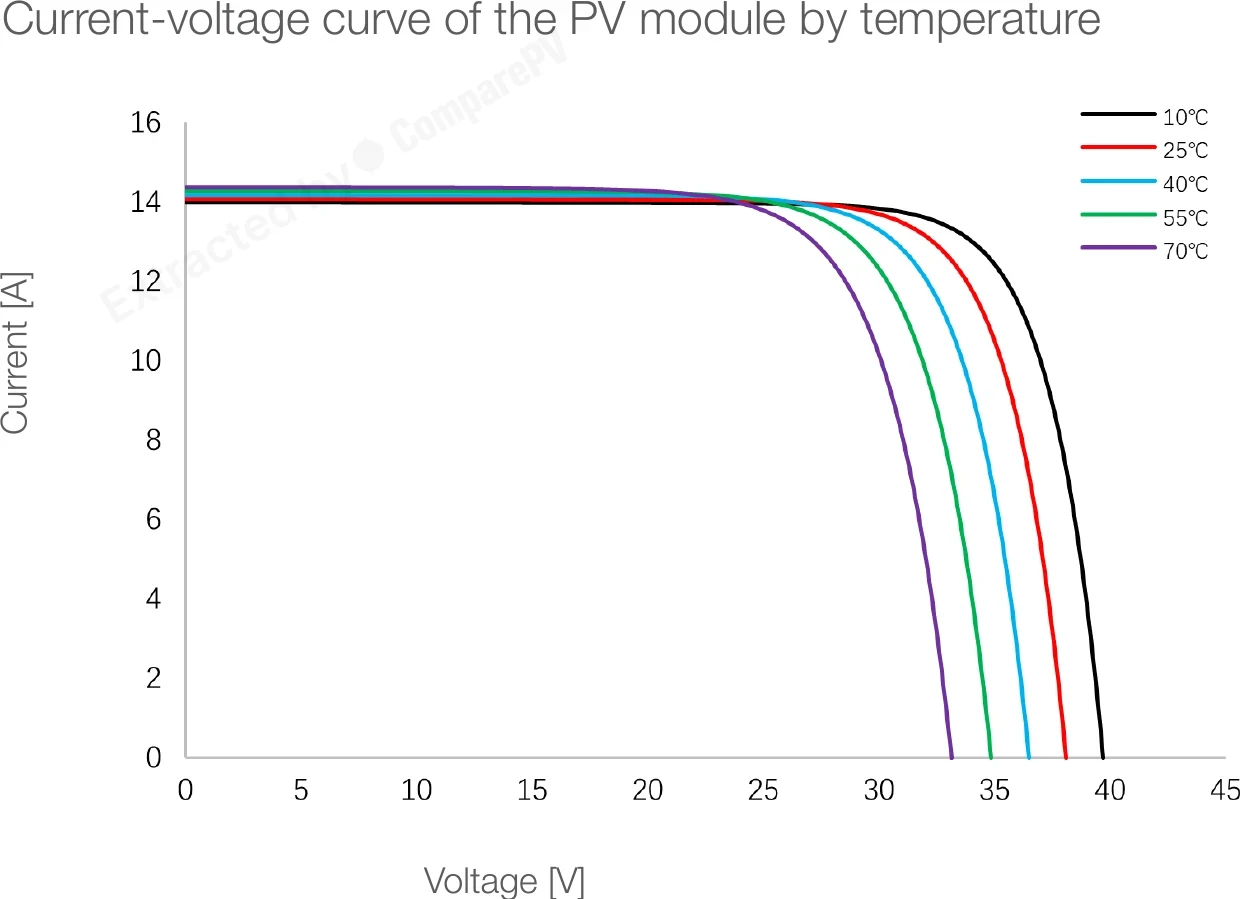

Guaranteed Power over 30 Years (Linear Performance Warranty) Guaranteed Power over 30 Years (Linear Performance Warranty) Whole series Current-Voltage Curve of the Module by Different Insolation Current-Voltage Curve of the Module by Different Insolation Whole series Current-Voltage Curve of the PV Module by Temperature Current-Voltage Curve of the PV Module by Temperature Whole series

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-
With bifacial gain
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.300 %/°C against a segment median of -0.290
-
Bifacial gain
Rear gain over light concrete: -
-

Model: bifaciality × albedo × 0.6 view factor. A first-order estimate, not a yield simulation.

Filter these
Size
Panel Power Eff. Temp. Weight Difference
LEDVANCE M450N54LB-SF-F7 450 W 22.52% -0.300 24.5 kg You are here
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +45 W, cooler, +2.3 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +40 W, cooler, +2.0 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +50 W, cooler, +2.0 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +50 W, cooler, +2.0 pp
GK-3-54HGb-500M 500 W 24.50% -0.260 21.4 kg +50 W, cooler, +2.0 pp
GCL-NR10R/54BGDF 500 W 24.50% -0.260 24.6 kg +50 W, cooler, +2.0 pp
M435N54LB-SF-F7 435 W 21.77% -0.300 24.5 kg -15 W, -0.8 pp
M440N54LB-SF-F7 440 W 22.02% -0.300 24.5 kg -10 W, -0.5 pp
M445N54LB-SF-F7 445 W 22.27% -0.300 24.5 kg -0.2 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +60 W, cooler, +2.5 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +55 W, cooler, +2.2 pp

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What does the 435~455 power range in the LEDVANCE M435~455N54LB-SF-F7 name mean, and how many watts does this panel actually produce?
The M435~455 designation indicates the factory sorting bin range: each module is measured during a Flash Test and classified to a specific bin between 435 and 455 Wp. The top-tier variant reaches 455 Wp, and the Flash Test report is included with delivery so the installer can verify the exact power of each panel received. For system design purposes, safely assume 450-455 Wp for the premium bin.
What warranty does the LEDVANCE M435~455N54LB-SF-F7 series carry, and what does it cover?
The series comes with a 25-year product warranty covering material and workmanship defects, plus a 30-year linear power output warranty. Over that 30-year period, the manufacturer guarantees the module retains a specified minimum output — typically above 87% of nominal power. This is among the longest warranty coverages available in the premium module market and is a key factor when calculating long-term ROI.
Does the TOPCon technology in the LEDVANCE M435~455N54LB-SF-F7 deliver a real advantage over PERC panels?
Yes. N-type TOPCon cells deliver higher cell efficiency, a lower temperature coefficient, and slower annual degradation compared to PERC technology. In practice this translates to a few percentage points more annual energy yield, especially on hot days when module temperature rises. The M435~455N54LB-SF-F7 series generates more power from the same roof footprint without increasing the panel count.
When does the bifacial design of the LEDVANCE M435~455N54LB-SF-F7 actually boost energy production?
Bifacial modules capture light reflected off the ground through the rear cell surface, increasing yield by roughly 5-15% under favorable conditions. The gain is greatest on highly reflective surfaces such as white roofing membranes, gravel ballast, concrete, or carport decks. On dark roof tiles the benefit is minimal. For ground-mount arrays and carport installations, the bifacial construction provides a clearly measurable energy advantage.
How do the LEDVANCE M435~455N54LB-SF-F7 panels perform in winter and under overcast conditions in Central European climates?
N-type TOPCon cells feature a lower temperature coefficient and superior low-irradiance performance compared to standard PERC modules. On overcast winter days or at the low sun angles common in Central Europe, these panels lose less efficiency than older-technology modules. This is a meaningful advantage in markets like Poland, where seasonal irradiance variability between summer and winter is significant.
Is LEDVANCE a reliable solar panel manufacturer, and is the M435~455N54LB-SF-F7 series suitable for residential or commercial installations?
LEDVANCE is a German-headquartered brand primarily known for lighting that has expanded into photovoltaics. The manufacturer is not currently listed on Bloomberg's Tier 1 module ranking — a factor worth considering when evaluating investment insurance and financing options. That said, the M435~455N54LB-SF-F7 series, with its N-type TOPCon cell technology, bifacial construction, and 25-year product warranty, meets the performance and durability standards expected of premium modules for both residential and commercial projects.
