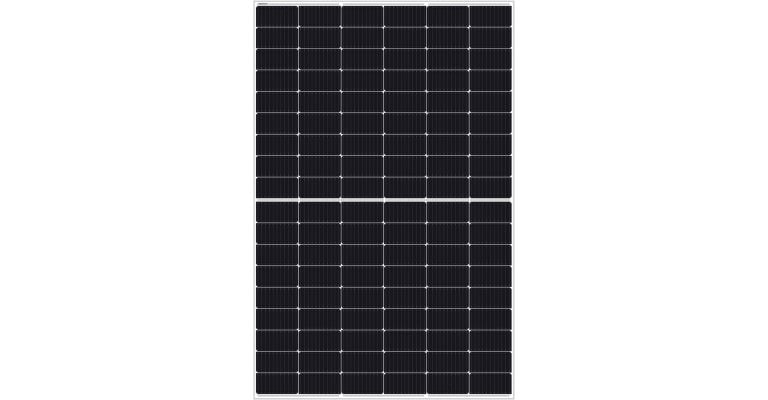

DMEGC DM435M10RT-54HSW/HBW
DMEGC Brand review

DM435M10RT-54HSW/HBW

435 Wp TOPCon
ComparePV verdict

Light for its output, weak in heat

Rank 8,675 of 14,005
Compare panels Datasheet PDF
Power (Wp)
435
Typical for its class
Efficiency (%)
21.77
Typical · median 22.00%
Density (Wp/m²)
217.7
Typical · median 220.2
Temp (%/°C)
-0.310
Weak · bottom 10%
Weight (kg)
20.6
Strong · 1.4 kg below median
Warranty (yrs)
30
Typical · median 30 yrs

The DMEGC DMXXXM10RT-54HSW/HBW series are 54-cell modules designed for high energy production even under non-ideal conditions. Utilizing N-type cells in TOPCon technology results in more stable performance over time and excellent efficiency in real-world installations where temperature losses and long-term reliability are key considerations. The bifacial design allows capturing additional yield from reflected radiation-this is a real advantage on light roof covers, ground-mounted systems, and carports. The HSW/HBW versions offer modern aesthetics thanks to color coordination of the frame and finishing layers, making them easy to integrate into buildings without compromising performance. Meanwhile, dual glass enhances environmental resistance and increases durability in projects exposed to moisture, salt, or intense sunlight. This is the series for installers and investors seeking to combine high craftsmanship, predictable yield, and ease of use in residential, flat roof, and commercial applications.

Ranking

1,218 panels in the segment TOPCon 400-450 W
Metric This panel Median Position in segment Overall rank
Module efficiency 21.77% 22.00% Typical 7,233
Power density 217.7 220.2 Typical 7,066
Temperature coefficient -0.310 -0.290 Weak · bottom 10% 8,005
Weight per kWp 47.4 51.4 Strong · top 14% 1,645
Performance warranty 30 yrs 30 yrs Typical 21
Colour key Strong - top 25% Typical - middle 50% Weak - bottom 25%

Signals from the data

6 positive · 3 caution
Best for

Residential and commercial.

Not ideal for

Hot climates.

Strengths
47.4 kg per kWp

Top 14% of the TOPCon 400-450 W segment, against a median of 51.4.

Watch-outs
-0.310 %/°C temperature coefficient

Bottom 10% of the TOPCon 400-450 W segment, against a median of -0.290.

What owners get
N-type TOPCon Technology with Low Degradation

N-type TOPCon cells guarantee an annual degradation rate of max. 0.4% (from year 2 onward), translating to a minimum of 87.4% retained power output after 30 years. Legacy PERC modules typically degrade at 0.55–0.6%/year, retaining only approximately 82–84% of rated power over the same period.

30-Year Linear Power Warranty

The manufacturer guarantees a minimum of 99% power output in year 1 and a minimum of 87.4% after 30 years. Most 435 Wp modules from competing Tier-1 manufacturers (e.g., JA Solar, LONGi) ship with a standard 25-year warranty — DMEGC extends that horizon by 5 years at no additional cost.

Manufacturer Credibility: BNEF Tier 1 and S&P Global

DMEGC maintains Tier-1 status according to BloombergNEF (confirmed Q3 2025) and appears on the S&P Global Tier-1 list. The company is part of Hengdian Group (founded 1975), with DMEGC itself operating since 1980. Its 5th-place global ranking in the Wood Mackenzie 2025 report significantly reduces financing risk and after-sales support concerns.

Only Tier-1 Manufacturer with DIBt Certification

DMEGC is the only Tier-1 manufacturer in the world holding a DIBt (Deutsches Institut für Bautechnik) certificate for overhead applications. This is a significant competitive advantage for rooftop BIPV projects, carports, and pergolas where stringent structural building codes apply.

Two Aesthetic Variants: HSW / HBW

The HSW (silver frame) and HBW (black frame) variants allow the module to be matched to the building's architecture without any performance trade-off. In the prosumer and premium residential segments, this is a compelling sales argument for projects with visible roof surfaces.

Trade-offs
21.77% Efficiency Below Peer Group

Three direct comparators in the same 435 Wp power class achieve efficiencies of 22.27–22.28% (Luxen LUXPOWER N5, ZNShine ZXM7-UHLDD108, Solitek SOLID Blackstar). The ~0.5 percentage point gap means that for the same roof area (e.g., 30 m²), energy yield is realistically about 2.3% lower — a tangible difference particularly in small installations with limited available space.

Monofacial Design — No Rear-Side Energy Gain

The DMXXXM10RT-54HSW/HBW series is monofacial (is_bifacial: false), which precludes any energy recovery from reflected irradiance. Compared to bifacial N-type TOPCon modules from the same manufacturer (e.g., the B54HSW/HBW series), potential energy yield on ground-mount, flat-roof, and carport installations is typically 5–15% lower.

Notes from the database
  • At 21.8% efficiency, this panel is on par with typical TOPCon 400-450W modules
  • Power density of 217.7 W/m² matches the TOPCon 400-450W median
  • -0.31%/°C temperature coefficient - 0.02pp worse than TOPCon 400-450W median (-0.29%/°C), expect higher hot weather losses
  • 20.6 kg weight - 1.4 kg lighter than TOPCon 400-450W median (22.0 kg), reducing installation effort
  • Ranked #7233 out of 14005 panels for efficiency in the database

Specifications

Open datasheet PDF
Nominal power (Pmax) 435 Wp Nameplate at 1000 W/m², 25 °C
Module efficiency 21.77 % Typical Segment median 22.00%
Vmpp · Impp 32.59 V · 13.35 A Operating point at max power
Voc · Isc 39.20 V · 13.78 A Sizes the string length
Max system voltage 1500 V Longer strings than 1000 V modules
Dimensions 1762×1134×30 mm · 2.00 m² of roof
Weight 20.6 kg Strong Strong · 1.4 kg below median
Cells 108 · TOPCon Monocrystalline
Coefficient Pmax -0.310 %/°C Weak bottom 10% of its segment
Coefficient Voc · Isc -0.250 · 0.060 %/°C
NOCT 45 °C At 800 W/m², 20 °C ambient
Product warranty 20 years Hardware defects only
Performance warranty 30 years Typical median 30 yrs · median 30 yrs
End-of-warranty output 87.4 % Equals 380 W guaranteed
Degradation 1.00 → 0.40 % First year, then annual

Simulations

Live - change any input
Lifetime output & value
30 years at 1200 kWh/kWp/year and €0.50 per kWh
Power in year 30
-
Lifetime energy
-
Energy value
-

Degradation from this panel's own datasheet figures. No inverter, soiling or shading losses.

Heat losses
-0.310 %/°C against a segment median of -0.290
-
Filter these
Size
Panel Power Eff. Temp. Weight Difference
DMEGC DM435M10RT-54HSW/HBW 435 W 21.77% -0.310 20.6 kg You are here
JAT54S40-485/LR 485 W 24.30% -0.260 19.3 kg +50 W, cooler, +2.5 pp
AIKO-A485-MCE54Mw 485 W 24.30% -0.260 21.0 kg +50 W, cooler, +2.5 pp
AIKO-A485-MAH54Mw 485 W 24.30% -0.260 21.5 kg +50 W, cooler, +2.5 pp
GK-5-54HG-485M 485 W 24.30% -0.260 21.0 kg +50 W, cooler, +2.5 pp
ZEUS 3.0+ 108 485WP 485 W 24.30% -0.260 24.2 kg +50 W, cooler, +2.5 pp
DM440M10RT-54HSW/HBW 440 W 22.00% -0.290 20.6 kg Cooler, +0.2 pp
DM445M10RT-54HSW/HBW 445 W 22.30% -0.290 20.6 kg +10 W, cooler, +0.5 pp
LR7-54HJD-510M 510 W 25.00% -0.240 23.5 kg +75 W, cooler, +3.2 pp
AIKO-A495-MCE54Mw 495 W 24.80% -0.260 21.0 kg +60 W, cooler, +3.0 pp
LR7-54HJD-505M 505 W 24.70% -0.240 23.5 kg +70 W, cooler, +2.9 pp
AIKO-A490-MCE54Mw 490 W 24.50% -0.260 21.0 kg +55 W, cooler, +2.7 pp
LR7-54HJD-500M 500 W 24.50% -0.240 23.5 kg +65 W, cooler, +2.7 pp
CIPRO-TN9C54M-500W 500 W 24.50% -0.260 21.4 kg +65 W, cooler, +2.7 pp

Found 1395 panels of the same or similar size to this one, within ±10 mm. See them here Found 1425 panels of the same or similar size to this one, within ±25 mm. See them here Found 3614 panels of the same or similar size to this one, within ±50 mm. See them here Found 3962 panels of the same or similar size to this one, within ±100 mm. See them here

Common questions

6 answered
What do the HSW and HBW designations mean in the DMEGC DMXXXM10RT-54HSW/HBW series?
The HSW and HBW designations differ exclusively in the module's color scheme. The HSW variant features a silver frame with a white backsheet, while the HBW variant has a black frame with a white backsheet. The electrical parameters, maximum power output (up to 435 W), and warranties are identical across both versions. The choice depends on the aesthetic requirements of the roof or building facade, with no performance compromises whatsoever.
What warranty is provided for the DMEGC DMXXXM10RT-54HSW/HBW panels?
The manufacturer provides a 20-year product warranty (covering materials and workmanship) and a 30-year linear power output warranty. After 30 years, the module is guaranteed to retain at least 87.4% of its nominal power. This is one of the longest warranties in this panel class, which is particularly significant when calculating the return on investment for residential prosumer or commercial PV installations.
How does the DMXXXM10RT-54HSW/HBW series perform on hot summer days?
TOPCon N-type cell technology features a lower temperature coefficient for Pmax (approx. -0.29%/°C) compared to standard PERC cells. This means that at elevated temperatures during summer, the panel loses less power than older-generation designs. In the Polish climate, where August temperatures above 30°C are becoming increasingly common, this translates into a measurably higher annual energy yield.
Are the DMEGC DMXXXM10RT-54HSW/HBW panels suitable for pitched roofs with chimneys or dormers?
Yes, the 54-cell series has compact dimensions (approx. 1762×1134 mm, weight approx. 21 kg), which facilitates rooftop transport and installation in space-constrained areas. The modules withstand snow loads of up to 5400 Pa and wind loads of up to 2400 Pa, meeting Polish structural building code requirements. They are well suited for both new installations and system upgrades.
Is DMEGC a proven manufacturer — will the warranty still be honored in 20 years?
DMEGC appears on the Bloomberg NEF Tier 1 list, meaning the company meets the stringent financial and manufacturing criteria required of global PV module suppliers. The company operates its own cell manufacturing facilities and has maintained a presence in Poland for many years. To maximize warranty protection, it is advisable to purchase through an authorized distributor with a registered Polish entity and to retain all purchase documentation.
How does the DMXXXM10RT-54HSW/HBW series differ from DMEGC's bifacial double-glass version?
The DMXXXM10RT-54HSW/HBW series is a monofacial module with a polymer backsheet — it captures solar irradiance from the front side only. DMEGC's bifacial versions (identified by the letter B in the product name, e.g., B54HBB) feature a double-glass construction and harvest additional energy from irradiance reflected off the ground or mounting surface. The HSW/HBW variant is lighter and more cost-effective, making it the more economical choice for typical pitched roofs where the bifacial gain would be minimal.
