600Wp
Q-Cells Q.PEAK DUO RSF XL-G11S.3/BFG 600
Q-Cells Review

Q.PEAK DUO RSF XL-G11S.3/BFG 600

MonocrystallineBifacial
Datasheet
21.50%
Efficiency
214.9 Wp/m²
Power Density
-0.340%/°C
Temp. Coeff. Pmax chart
-
Power after 30 years
Smart Insights (data-driven)
  • Efficiency of 21.5% matches the database median
  • At 214.9 W/m² power density, roof space requirements are typical for database panels
  • Temperature coefficient of -0.34%/°C is 0.04pp worse than database median (-0.30%/°C) - higher losses in summer heat
  • At 36.4 kg (9.9 kg above database median of 26.5 kg), requires checking roof load capacity
  • Ranked #6503 out of 11672 panels for efficiency in the database
Performance Profile
Price Offers 0
Shop Country Price Price/kWp
Series Q.PEAK DUO RSF XL-G11S SERIES 8 variants
Efficiency Range 21.0% - 21.5%
Avg. Efficiency 21.23%
Technology PERC
Dimensions 2462 × 1134 mm
Show series description

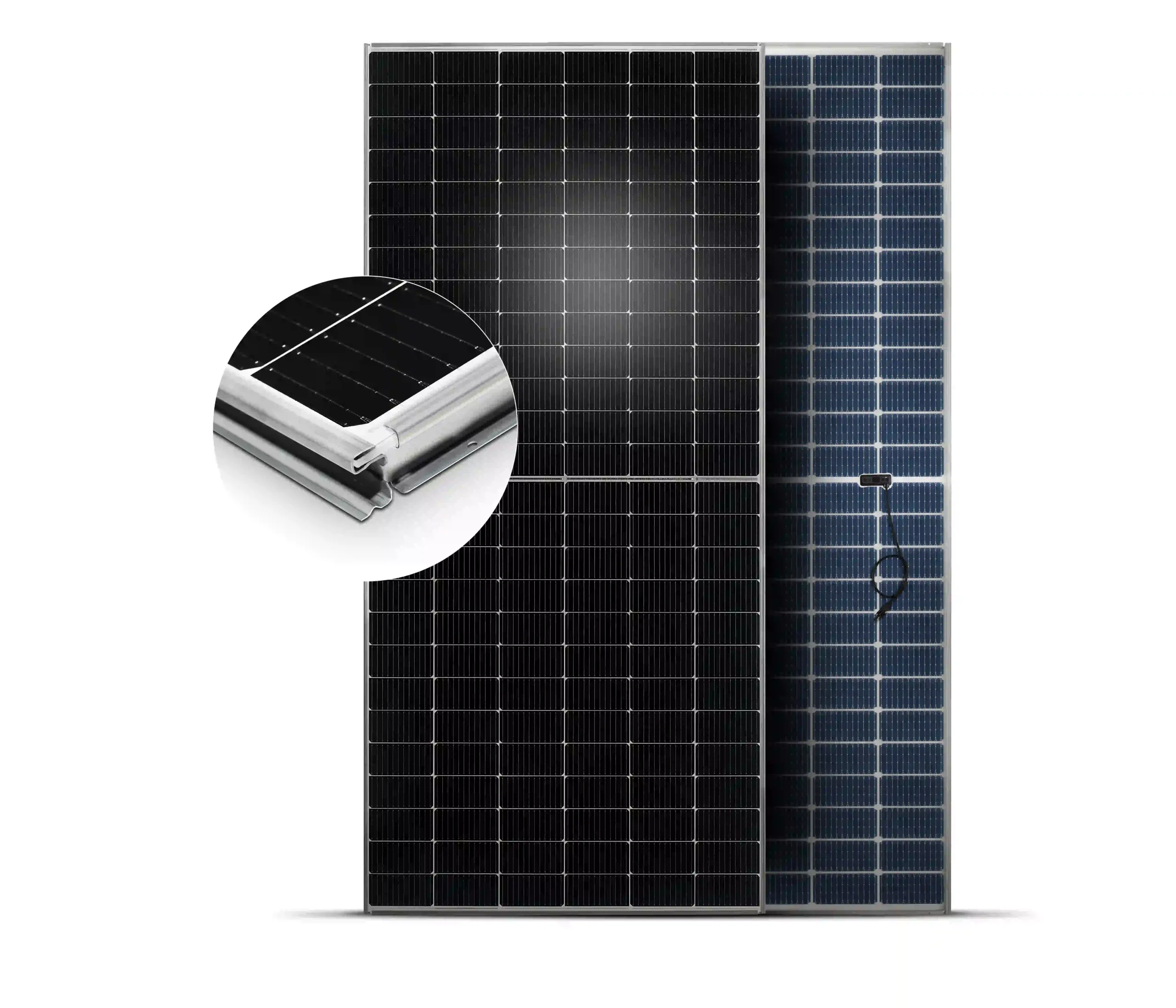

The Q-Cells Q.PEAK DUO RSF XL-G11S series are bifacial modules featuring a glass-glass structure, specifically designed for large ground installations, particularly on trackers. The most significant practical difference is the robust steel frame (RSF) with advanced anti-corrosion coating – it increases resistance to field conditions and facilitates achieving a stable structure under demanding loads. The series also focuses on faster installation: special positioning solutions help installation teams efficiently align the modules and minimize risks during the mounting phase.

From the yield perspective, bifacial capability is key – the rear side of the module can genuinely contribute energy when the installation is on a light-colored ground surface or an asphalt surface with good reflectivity. Inside, Q.ANTUM monocrystalline cells operate, supported by PID and LeTID protection, as well as Hot-Spot Protect, making it easier to maintain performance over time. This is the choice for investors who prioritize LCOE, construction speed, and reliability, rather than just the specifications from the datasheet.

Panels from the same series differ mainly in power output while having identical dimensions. Learn why →
Electrical Parameters (STC)
Nominal Power (Pmax)600 Wp
Module Efficiency21.50%
Voltage at Max Power (Vmpp)45.39 V
Current at Max Power (Impp)13.22 A
Open Circuit Voltage (Voc)53.66 V
Short Circuit Current (Isc)13.80 A
Max System Voltage1500 V
Temperature Coefficients
Temp. Coeff. Pmax-0.340%/°C
Temp. Coeff. Voc-0.270%/°C
Temp. Coeff. Isc0.040%/°C
NOCT42°C
Cell Technology
Cell TypeMonocrystalline
Cell Count156
BifacialYes
Bifaciality Factor-
Dimensions & Weight
Length2462 mm
Width1134 mm
Height35 mm
Weight36.4 kg
Area2.79 m²
Power Density214.9 Wp/m²
Warranty
Product Warranty-
Performance Warranty30 years
End-of-Warranty Output-
First Year Degradation-
Annual Degradation-
Key Specifications
21.50%
Efficiency
600 Wp
Power
-0.34%/°C
Temp Coeff
30 yrs
Warranty
